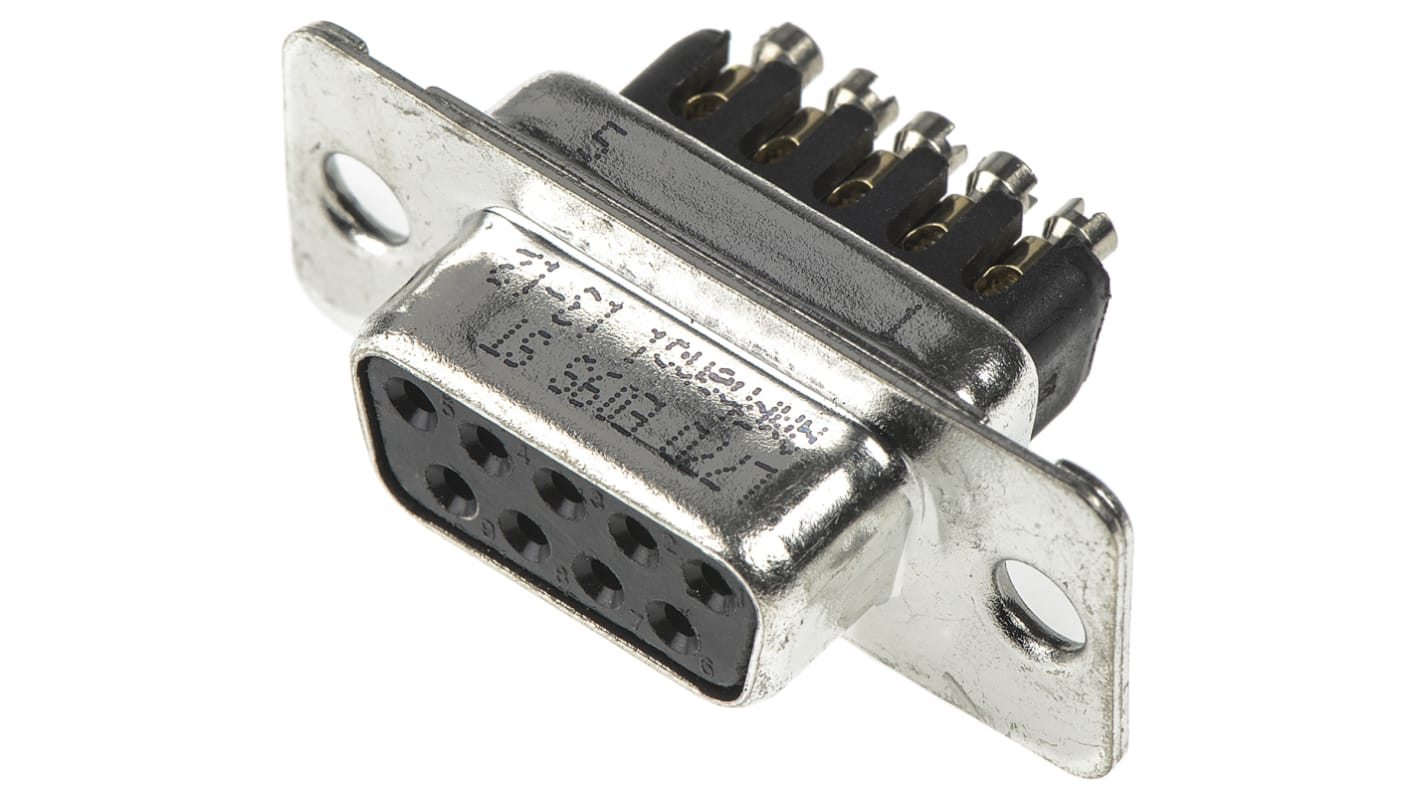

Amphenol Communications Solutions 9 Way Cable Mount D-sub Connector Socket, 2.74mm Pitch
- RS Stock No.:
- 615-6109
- Distrelec Article No.:
- 144-04-539
- Mfr. Part No.:
- L77D E09S ST
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 unit)*
£9.75
(exc. VAT)
£11.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 504 unit(s) ready to ship
- Plus 97 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.75 |
| 10 - 49 | £9.24 |
| 50 - 99 | £7.80 |
| 100 - 249 | £7.40 |
| 250 + | £5.23 |
*price indicative
- RS Stock No.:
- 615-6109
- Distrelec Article No.:
- 144-04-539
- Mfr. Part No.:
- L77D E09S ST
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Pitch | 2.74mm | |
| Termination Method | Screw Terminal | |
| Current Rating | 7.5A | |
| Housing Material | Steel | |
| Voltage Rating | 300.0 V | |
| Length | 30.43mm | |
| Width | 12.17mm | |
| Depth | 18.55mm | |
| Contact Plating | Gold over Nickel | |
| Dimensions | 30.43 x 12.17 x 18.55mm | |
| Contact Material | Brass | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Pitch 2.74mm | ||
Termination Method Screw Terminal | ||
Current Rating 7.5A | ||
Housing Material Steel | ||
Voltage Rating 300.0 V | ||
Length 30.43mm | ||
Width 12.17mm | ||
Depth 18.55mm | ||
Contact Plating Gold over Nickel | ||
Dimensions 30.43 x 12.17 x 18.55mm | ||
Contact Material Brass | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -55.0°C | ||
- COO (Country of Origin):
- CN
D-Sub Connectors
Male and female D-Sub connectors with direct screw connections
These D-Sub's are all 2 Row Connectors.
Easy wiring without the need for any special tool (a standard electrician's screwdriver can be used), ideal for field applications
Applications: industry (control and automated systems), buildings services (lighting, air conditioning), infrastructure (remote control, public lighting, etc.)
Also available as a kit with its hood, plastic or metal, with straight or right-angle cable entry (see stock for example no. 615-5960)
These D-Sub's are all 2 Row Connectors.
Easy wiring without the need for any special tool (a standard electrician's screwdriver can be used), ideal for field applications
Applications: industry (control and automated systems), buildings services (lighting, air conditioning), infrastructure (remote control, public lighting, etc.)
Also available as a kit with its hood, plastic or metal, with straight or right-angle cable entry (see stock for example no. 615-5960)
