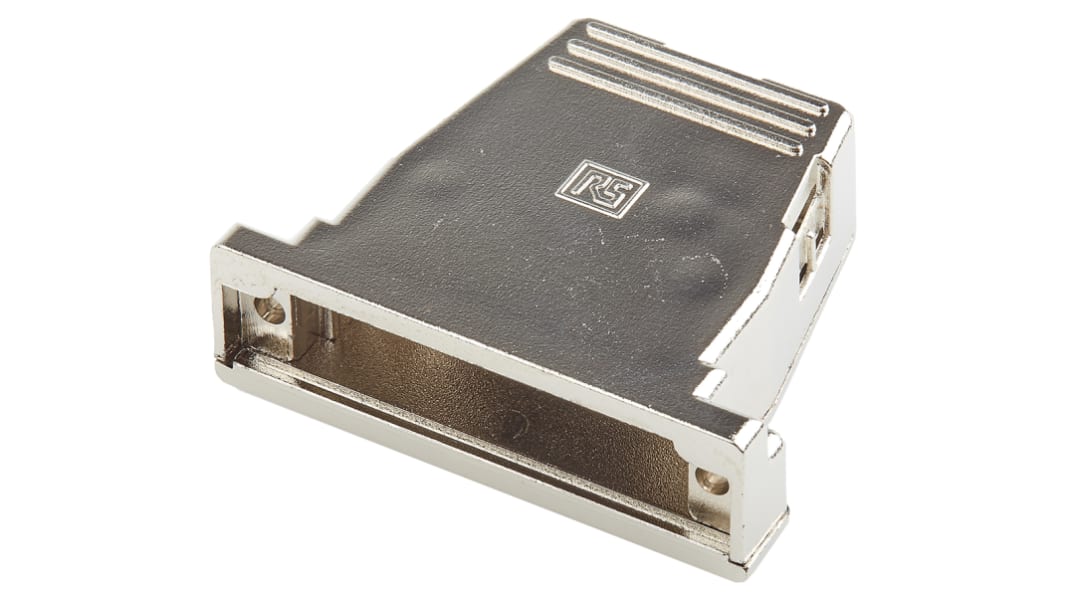

Looking for a reliable way to reduce strain on your cables while maintaining a stable connection at the same time? This D-Sub connector backshell from RS PRO is ideally suited for your needs.

The screw-down cover protects the wires and stops them getting loose. You can insert cables into the connector easily from either the top or the side via removable knockouts. The connector's lightweight ABS (acrylonitrile butadiene styrene) housing is nickel-plated to keep out RFI/EMI (radio frequency interference and electromagnetic interference).

Handy and compact, the connector measures just 48 mm x 56.6 mm x 16.3 mm. It has 25 contacts with B D-Sub shell sizes. Everything you need to assemble the product is supplied, including two jack screws, self-tapping cover screws and a cable clamp.

This D-Sub connector backshell is compatible with most standard and crimp D-connectors, such as those typically used in standard computer networks and communications systems.

• ABS D-Sub connector backshell
• Measures 48 mm x 56.6 mm x 16.3 mm
• Includes two jack screws, self-tapping cover screws and a cable clamp for assembly
• Lightweight, nickel-plated ABS housing
• 25 contacts with D-Sub shell size B
• Strain relief
• Straight body
• Operating temperature range of -20°C to +75°C
• Complies with the safety standard for the flammability of plastic materials for parts in devices and appliances UL 94V-0
• Compliant with RoHS (Reduction of Hazardous Substances) safety standards
