FCT from Molex FMK Series Die Cast Zinc Angled D Sub Backshell, 50 Way, Strain Relief
- RS Stock No.:
- 291-6367
- Mfr. Part No.:
- FMK5 / 1727040103
- Brand:
- FCT from Molex
302 In stock - FREE next working day delivery available
22 available from Europe for delivery within 2 working day(s).
Price Each
£16.88
(exc. VAT)
£20.26
(inc. VAT)
Units | Per unit |
---|---|
1 - 24 | £16.88 |
25 - 99 | £14.96 |
100 - 249 | £13.05 |
250 + | £11.88 |
- RS Stock No.:
- 291-6367
- Mfr. Part No.:
- FMK5 / 1727040103
- Brand:
- FCT from Molex
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

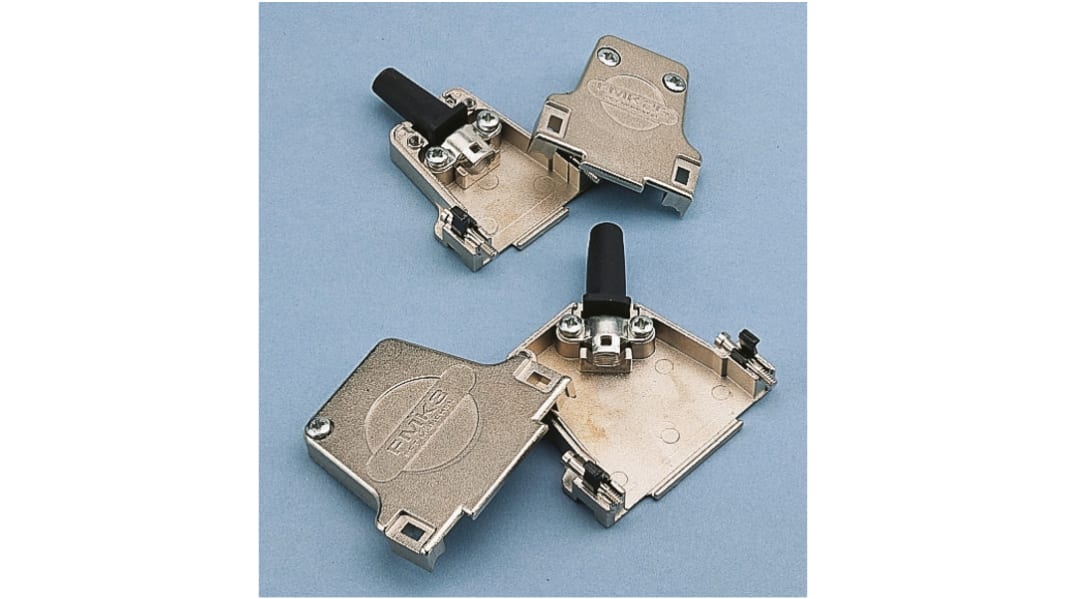

FMK Series Metal Hoods, Straight and Angled 45°
These FMK Series Metal Hood Backshells have a Large Inner Chamber and an Angled or Straight Cable Outlet. This large amount of internal space is particularly suitable for D-sub connectors with special contacts. The design of the FMK Series Metal Hood Backshell includes strain relief on the cable outlet. The FMK Series Metal Hood Backshell is easy to assemble thanks to the catch spring system and pre-mounted locking screws. The FMK Series Metal Hood Backshells can be used with engagement hooks and locking or knurled screws.
FMKx: Angled
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet
FMKxG: Straight
FMKxx-K201: Large Cable Outlet
FMKx-4881: Dual Cable Outlet
Note
Stock number 764-9668 has dual cable (Ø8 → 12 mm) entry slot
Warning
Stock no. 291-6288 is supplied without anti-kink feature
Approvals
UL E168813
Specifications
Attribute | Value |
---|---|
Number of Contacts | 50 |
D-Sub Shell Size | D |
Housing Material | Die Cast Zinc |
Body Orientation | Angled |
Colour | Silver |
Strain Relief | Yes |
Housing Material Plating | Nickel |
Series | FMK |
