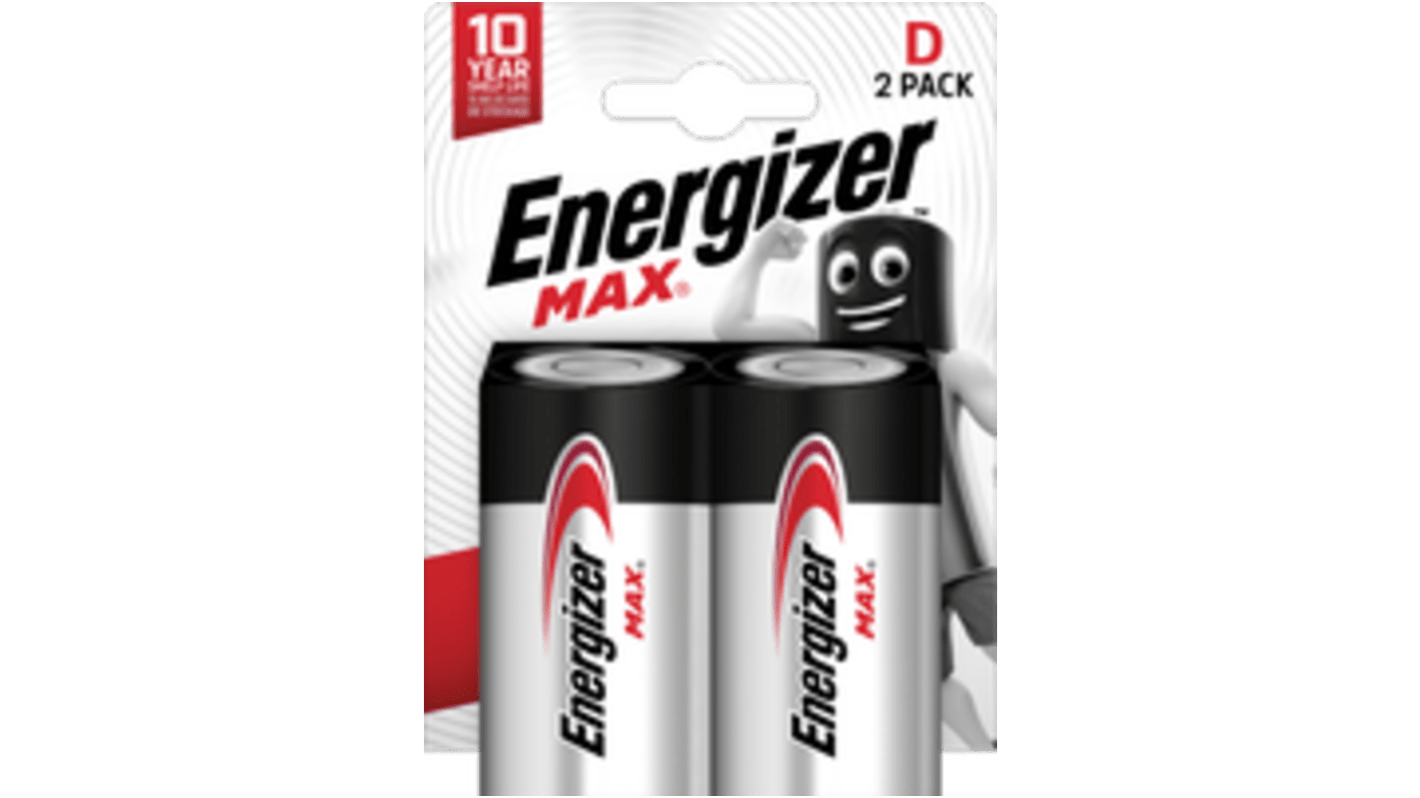

Energizer LR 1.5 V Alkaline, Zinc Manganese Dioxide D Battery
- RS Stock No.:
- 914-5058
- Distrelec Article No.:
- 300-16-722
- Mfr. Part No.:
- 7638900426823
- Brand:
- Energizer
Subtotal (1 pack of 2 units)*
£7.72
(exc. VAT)
£9.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 158 unit(s) ready to ship
- Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £7.72 | £3.86 |
*price indicative
- RS Stock No.:
- 914-5058
- Distrelec Article No.:
- 300-16-722
- Mfr. Part No.:
- 7638900426823
- Brand:
- Energizer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Energizer | |
| Series | LR | |
| Product Type | D Battery | |
| Chemistry | Alkaline, Zinc Manganese Dioxide | |
| Battery Size | D | |
| Nominal Voltage | 1.5V | |
| IEC Code | LR20 | |
| Battery Capacity | 20Ah | |
| Termination Type | Flat Contact | |
| NEDA Code | 13 A | |
| Standards/Approvals | IEC | |
| Height | 61.5mm | |
| Diameter | 34.2mm | |
| Weight | 139g | |
| Select all | ||
|---|---|---|
Brand Energizer | ||
Series LR | ||
Product Type D Battery | ||
Chemistry Alkaline, Zinc Manganese Dioxide | ||
Battery Size D | ||
Nominal Voltage 1.5V | ||
IEC Code LR20 | ||
Battery Capacity 20Ah | ||
Termination Type Flat Contact | ||
NEDA Code 13 A | ||
Standards/Approvals IEC | ||
Height 61.5mm | ||
Diameter 34.2mm | ||
Weight 139g | ||
RoHS Status: Not Applicable
Energizer Series LR D Battery, 20Ah Capacity, 1.5V Nominal Voltage - 7638900426823
This D battery provides a 1.5 V alkaline power source suited to torches, radios and other high-drain portable devices, operating across typical ambient conditions and offering long shelf storage.
Features and Benefits:
• 20 Ah capacity delivers extended device run time
• Zinc-manganese dioxide chemistry supports steady voltage output
• Flat-contact Terminal enables secure connections in holders
• Operates between −18°C and 55°C for varied environments
• Low fresh internal resistance of 200-400 mΩ for high currents
• Zinc-manganese dioxide chemistry supports steady voltage output
• Flat-contact Terminal enables secure connections in holders
• Operates between −18°C and 55°C for varied environments
• Low fresh internal resistance of 200-400 mΩ for high currents
Applications
• Suitable for high-drain flashlights and handheld torches
• Used with portable radios and stereo equipment
• Ideal for battery-powered toys and lighting
• Can be used as replacement cells for camping gear
• Used with portable radios and stereo equipment
• Ideal for battery-powered toys and lighting
• Can be used as replacement cells for camping gear
What physical properties affect installation?
The cell has a nominal diameter of 34.2 mm and a height of 61.5 mm which match industry D-size fittings.
How long can I store the cell before use?
The shelf life is 10 years when stored at 21°C.
Are there materials of concern inside the cell?
The chemistry is zinc-manganese dioxide alkaline with no added MERCURY or cadmium.
What standards identify compatibility with international devices?
It is designated under IEC as LR20 and under NEDA as 13A.
What is the typical mass and volume for weight-sensitive projects?
Typical mass is 139 g and typical volume is 56.0 cm3.
Note
The AA and AAA sizes offer leakage protection for up to 2 years after fully used
