RS PRO ENT.A20MN Series Current Transformer 150 A 5 VA 720 V 14 mm Bore

RS Stock No.:: 557-796
Brand:: RS PRO

RS PRO ENT.A20MN Series Current Transformer 150 A 5 VA 720 V 14 mm Bore

Subtotal (1 unit)*

£6.03

(exc. VAT)

£7.24

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

185 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£6.03

*price indicative

RS Stock No.:: 557-796
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Current Transformer
	Series	ENT.A20MN
	Power Rating	5VA
	Secondary Current	5 A
	Terminal Type	Nickel Plated Brass Terminal
	Primary Current	150A
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	40°C
	Standards/Approvals	EN 61869-2 / IEC 61869-2
	Maximum Operating Frequency	60Hz
	Mount Type	Base
	Minimum Operating Frequency	50Hz
	Supply Voltage	720 V
	Bore Size	14 mm

	Select all
	Brand RS PRO
	Product Type Current Transformer
	Series ENT.A20MN
	Power Rating 5VA
	Secondary Current 5 A
	Terminal Type Nickel Plated Brass Terminal
	Primary Current 150A
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature 40°C
	Standards/Approvals EN 61869-2 / IEC 61869-2
	Maximum Operating Frequency 60Hz
	Mount Type Base
	Minimum Operating Frequency 50Hz
	Supply Voltage 720 V
	Bore Size 14 mm

COO (Country of Origin):: TR

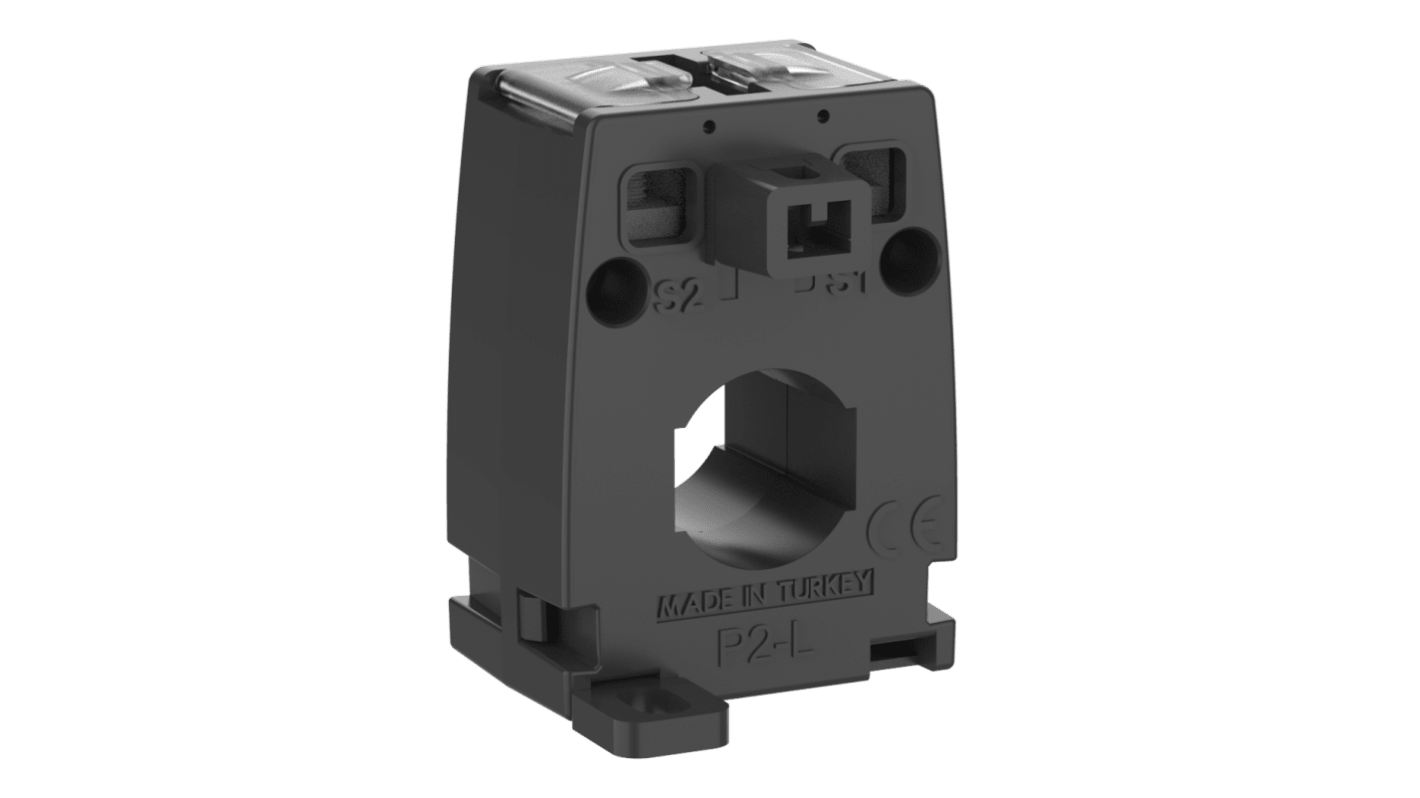

RS PRO Current Transformer, 150/5 A Ratio, Base Mount

This RS PRO Current Transformer is designed for accurate measurement and monitoring of electrical currents in industrial applications. With a primary current range of 40A to 300A, it is ideal for use with busbars and cables, ensuring reliable performance in various electrical systems.

Features and Benefits

Sealable Model: Provides enhanced security and protection for the transformer

Compliant with TS EN 61869-2 / IEC 61869-2 Standards: Ensures reliability and safety in operation

Maximum Operating Voltage 720V: Suitable for high-voltage applications

Operating Temperature -5°C to +40°C: Functions effectively in a range of environmental conditions

Rated Power Range 1-7.5 VA: Offers flexibility for different power requirements

Rated Continuous Thermal Current 1.2xIn: Supports continuous operation without overheating

Applications

Electrical distribution systems

Industrial automation

Power monitoring

Energy management systems

Additional Information

Mounting Type: Base mount for easy installation

Dimensions: 64.7 x 47.2 x 56.1 mm, compact design for space-saving installation

Bore Size: 21 mm, compatible with various busbars and cables
