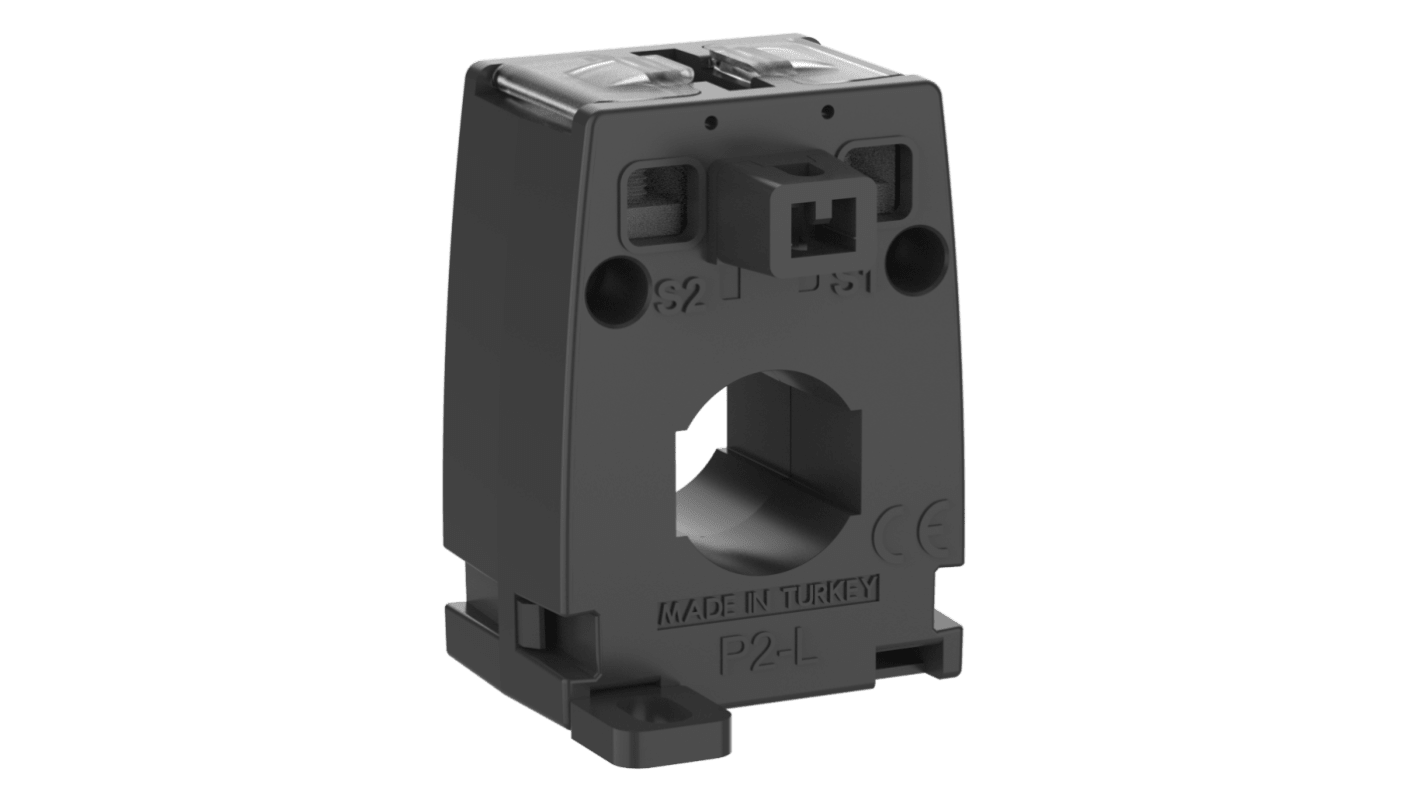

RS PRO ENT.A20MN Series Current Transformer 150 A 5 VA 720 V 14 mm Bore

RS Stock No.:: 557-787
Brand:: RS PRO

RS PRO ENT.A20MN Series Current Transformer 150 A 5 VA 720 V 14 mm Bore

Subtotal (1 unit)*

£6.03

(exc. VAT)

£7.24

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

189 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£6.03

*price indicative

RS Stock No.:: 557-787
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Current Transformer
	Series	ENT.A20MN
	Power Rating	5VA
	Secondary Current	5 A
	Terminal Type	Nickel Plated Brass Terminal
	Minimum Operating Temperature	-5°C
	Primary Current	150A
	Maximum Operating Temperature	40°C
	Standards/Approvals	EN 61869 IEC 61869, RoHS & REACH
	Mount Type	Base
	Maximum Operating Frequency	60Hz
	Bore Size	14 mm
	Minimum Operating Frequency	50Hz
	Supply Voltage	720 V

	Select all
	Brand RS PRO
	Product Type Current Transformer
	Series ENT.A20MN
	Power Rating 5VA
	Secondary Current 5 A
	Terminal Type Nickel Plated Brass Terminal
	Minimum Operating Temperature -5°C
	Primary Current 150A
	Maximum Operating Temperature 40°C
	Standards/Approvals EN 61869 IEC 61869, RoHS & REACH
	Mount Type Base
	Maximum Operating Frequency 60Hz
	Bore Size 14 mm
	Minimum Operating Frequency 50Hz
	Supply Voltage 720 V

COO (Country of Origin):: TR

RS PRO Sealable Current Transformer, 150/5 A Ratio, Base Mount

This RS PRO sealable current transformer is designed for measuring alternating current in electrical systems. It is ideal for applications requiring accurate current measurement and monitoring, with a primary current range of 40A to 300A. The transformer is suitable for use with busbars and cables, offering reliable performance in various industrial environments.

Features and Benefits

Sealable Design: Ensures secure installation and protection against tampering

Compliant with TS EN 61869-2 / IEC 61869-2 Standards: Meets international standards for safety and performance

Maximum Operating Voltage 720V: Suitable for high-voltage applications

Operating Temperature -5°C to +40°C: Functions effectively in a range of environmental conditions

Rated Power Range 1-7.5 VA: Provides flexibility for different power requirements

Rated Continuous Thermal Current 1.2xIn: Supports continuous operation with enhanced thermal capacity

Applications

Electrical distribution systems

Industrial automation

Power monitoring

Energy management systems

Additional Information

Mounting Type: Base mount for easy installation

For Use With: Compatible with busbars and cables

Bore Size: 21 mm for accommodating various conductor sizes

Dimensions: 64.7 x 47.2 x 56.1 mm for compact integration in systems

Supply Voltage: Operates at 720 V for high-voltage applications
