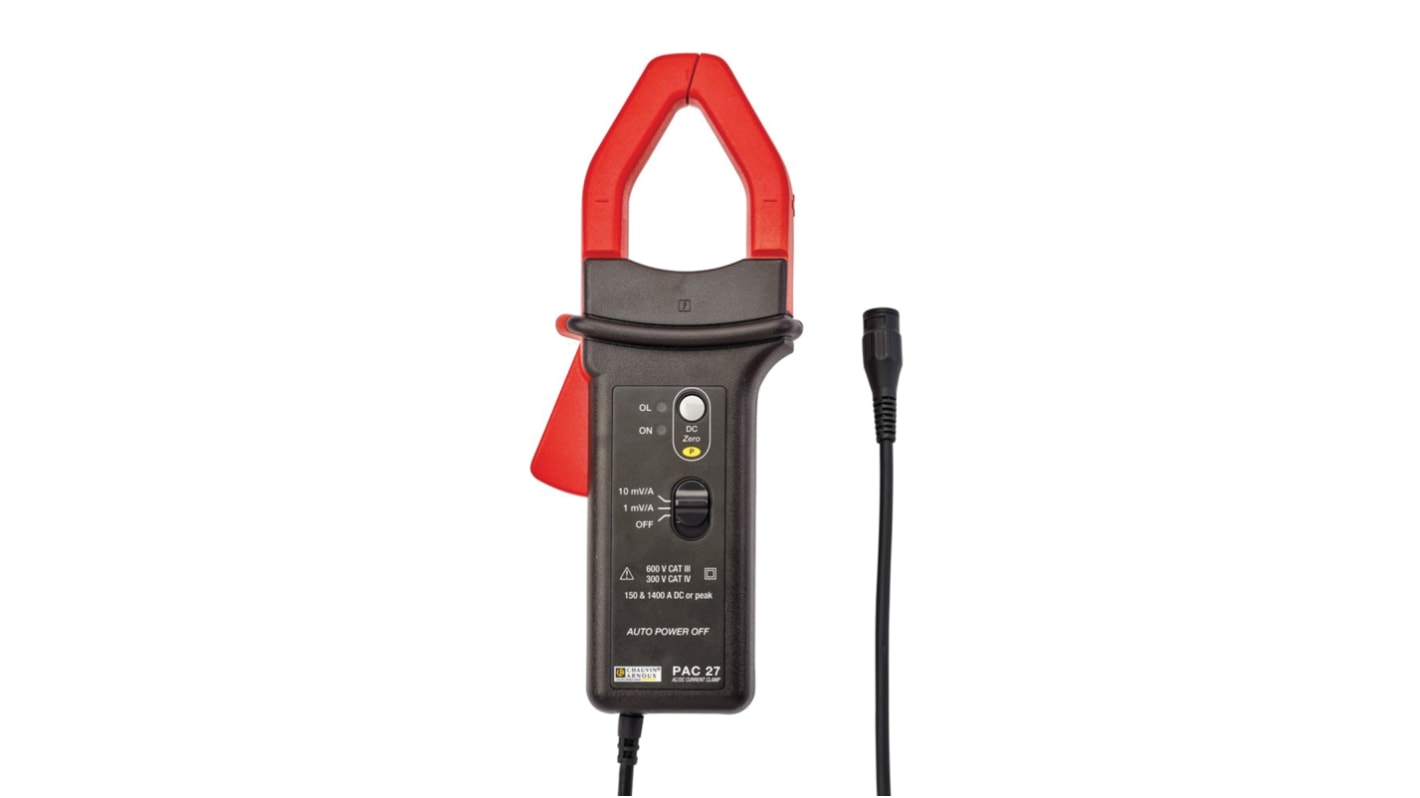

Chauvin Arnoux PAC 27 Current Clamp, 1400A dc DC Max, AC/DC Adapter, 1000A ac AC Max - RS Calibrated
- RS Stock No.:
- 189-4673
- Mfr. Part No.:
- P01120127
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£412.99
(exc. VAT)
£495.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £412.99 |
*price indicative
- RS Stock No.:
- 189-4673
- Mfr. Part No.:
- P01120127
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Adapter Type | AC/DC | |
| Maximum DC Current | 1400A dc | |
| Maximum AC Current | 1000A ac | |
| Best Accuracy | 1.5 % | |
| Calibrated | RSCAL | |
| Maximum Conductor Size | 39mm | |
| Safety Category | CAT III 600V, CAT IV 300V | |
| Connector Type | Isolated Male BNC Plug | |
| Maximum Bandwidth | 30kHz | |
| Battery Type | 9 V | |
| Battery Life | 50 h | |
| Cable Length Extended | 2m | |
| Maximum Operating Temperature | +55°C | |
| Model Number p | PAC 27 | |
| Minimum Operating Temperature | -10°C | |
| Safety Category Level | CAT III, CAT IV | |
| Safety Category Voltage | 300 V, 600V | |
| Bandwidth | DC → 30kHz | |
Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Adapter Type AC/DC | ||
Maximum DC Current 1400A dc | ||
Maximum AC Current 1000A ac | ||
Best Accuracy 1.5 % | ||
Calibrated RSCAL | ||
Maximum Conductor Size 39mm | ||
Safety Category CAT III 600V, CAT IV 300V | ||
Connector Type Isolated Male BNC Plug | ||
Maximum Bandwidth 30kHz | ||
Battery Type 9 V | ||
Battery Life 50 h | ||
Cable Length Extended 2m | ||
Maximum Operating Temperature +55°C | ||
Model Number p PAC 27 | ||
Minimum Operating Temperature -10°C | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category Voltage 300 V, 600V | ||
Bandwidth DC → 30kHz | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents. 2 forms are proposed to clamp cables up to 39 mm or 2x25.4 mm in diameter, as well as small busbars. The range comprises PAC1x models and PAC2x models for higher currents. When used with an oscilloscope, this isolated current sensor has 2 sensitivities and allows you to view currents with a bandwidth of up to 30 kHz and peak currents up to 1,400 A DC or peak. It is equipped with a simplified ZeroDC adjustment system and a deactivatable automatic standby function.
Rated current: 100 AAC/150 ADC - 1,000 A AC/1,400 A DC
Output signal: DC and AC voltage
Output / input ratio: 10 mV / A, 1 mV / A
Output via coaxial cable and isolated BNC male plug
Output signal: DC and AC voltage
Output / input ratio: 10 mV / A, 1 mV / A
Output via coaxial cable and isolated BNC male plug
