FLIR TA72 Current Probe, AC, Rogowski Coil Adapter, Voltage Output - UKAS Calibrated
- RS Stock No.:
- 123-6705
- Mfr. Part No.:
- TA72
- Brand:
- FLIR
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 123-6705
- Mfr. Part No.:
- TA72
- Brand:
- FLIR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FLIR | |
Adapter Type | AC, Rogowski Coil | |
Best Accuracy | ±3 % + 5 Digits | |
Resolution | 1 mV | |
Maximum Conductor Size | 60mm | |
Calibrated | UKAS | |
Safety Category | CAT III 1000 V, CAT IV 600V | |
Output Type | Voltage | |
Connector Type | 4 mm Plug | |
Battery Type | AAA | |
Cable Length Extended | 1.9m | |
Model Number p | TA72 | |
Safety Category Voltage | 600 V, 1000V | |
Safety Category Level | CAT III, CAT IV | |
Select all | ||
---|---|---|
Brand FLIR | ||
Adapter Type AC, Rogowski Coil | ||
Best Accuracy ±3 % + 5 Digits | ||
Resolution 1 mV | ||
Maximum Conductor Size 60mm | ||
Calibrated UKAS | ||
Safety Category CAT III 1000 V, CAT IV 600V | ||
Output Type Voltage | ||
Connector Type 4 mm Plug | ||
Battery Type AAA | ||
Cable Length Extended 1.9m | ||
Model Number p TA72 | ||
Safety Category Voltage 600 V, 1000V | ||
Safety Category Level CAT III, CAT IV | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

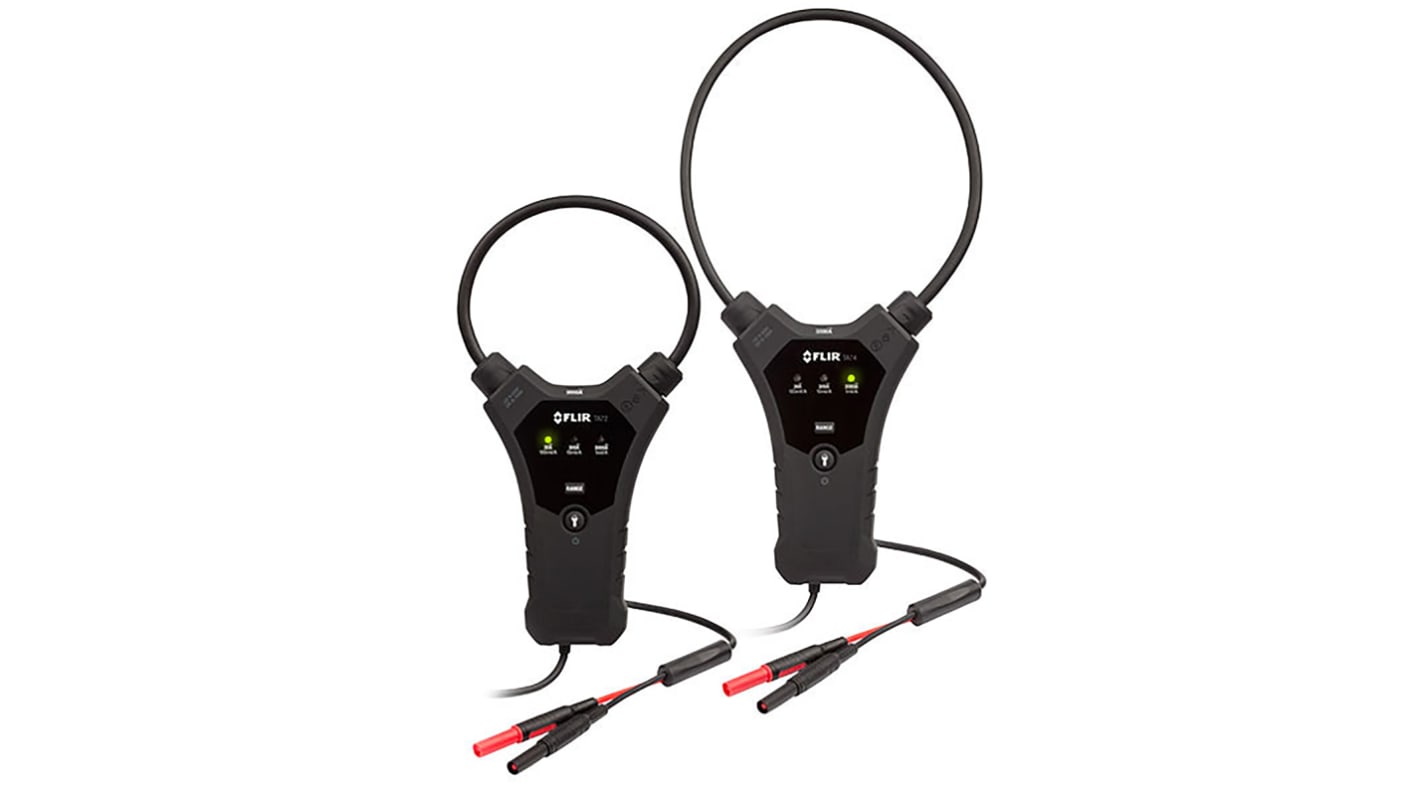

FLIR TA72 Flex Current Probe
FLIR TA72 Universal Flex Current Probe features a 10inch long narrow flexible coil clamp and locking mechanism. which lets you easily take measurements in tight or awkward spots. The TA72 can measure up to 3000A AC. It is portable and lightweight and features dual-LED work lights that will illuminate dark cabinets.
The TA72 has a standard banana plug connection and the output is a voltage signal. Compatible with most Digital Multimeters and clamp meters, regardless of brand.
The TA72 has a standard banana plug connection and the output is a voltage signal. Compatible with most Digital Multimeters and clamp meters, regardless of brand.
Features and Benefits
- Bright, dual LED work lights provide built-in illumination for dark cabinets
- Take accurate measurements in tight or awkward spots
- Snake the coil around obstacles with ease, in deep crowded cabinets
- Measure multi conductors and targets with limited clearance
- Switchable AC current range: 30 A, 300 A, 3000 A
- Compatible with most DMMs and clamp meters
- Standard banana plug connectors fit most meters
- AC voltage output enables wide compatibility
- Flexible Coil Length: 10" (25.4 cm) for easy manoeuvrability
- Easy inspection and navigation
- Rugged design drop-tested to 3 m
- Portable, compact and lightweight
Standards
EN61010-1, EN61010-2-032, EN61326-1
Approvals
CE, UL
FLIR Current Probe, 1.9m Cable, 4mm Plug - TA72
This FLIR current probe is a high-accuracy current probe designed for measuring AC current up to 3 kA. With a voltage output and compatibility with most DMMs and clamp meters, this probe is versatile and easy to use in various applications. The extended cable length of 1.9m and narrow flexible coil design make it ideal for taking measurements in tight or awkward spots, providing accurate readings in challenging environments.
Features & Benefits
• The narrow flexible coil clamp allows for easy measurements in tight spaces, providing accurate readings even in crowded cabinets
• The compatibility with most DMMs and clamp meters, regardless of brand, ensures versatility and ease of use
• The switchable AC current range of 30A, 300A, and 3000A allows for flexibility in measuring different current levels
• The standard banana plug connectors make it easy to connect to various meters for quick and efficient measurements
• The dual LED worklights provide built-in illumination for dark cabinets, enhancing visibility in low-light conditions
• The rugged design is drop-tested to 3 meters, ensuring durability and reliability in harsh environments
• The compatibility with most DMMs and clamp meters, regardless of brand, ensures versatility and ease of use
• The switchable AC current range of 30A, 300A, and 3000A allows for flexibility in measuring different current levels
• The standard banana plug connectors make it easy to connect to various meters for quick and efficient measurements
• The dual LED worklights provide built-in illumination for dark cabinets, enhancing visibility in low-light conditions
• The rugged design is drop-tested to 3 meters, ensuring durability and reliability in harsh environments
Applications
• Ideal for measuring current in deep, crowded cabinets with limited clearance
• Suitable for measuring multiple conductors and targets in challenging environments
• Suitable for measuring multiple conductors and targets in challenging environments
Can it measure different AC current ranges?
Yes, it offers switchable AC current ranges of 30A, 300A, and 3000A for versatile measurements.
Will it work with all types of DMMs and clamp meters?
Yes, it is compatible with most DMMs and clamp meters, regardless of brand.
Is it suitable for use in low-light conditions?
Yes, it features dual LED worklights for built-in illumination in dark cabinets.
Can it withstand harsh environments?
Yes, the rugged design is drop-tested to 3 meters, ensuring durability in challenging conditions.
How accurate are the measurements with this current probe?
The probe offers high accuracy with a resolution of 1mV and a safety category of CAT III 1000V, CAT IV 600V.
