RS PRO ICA3000 Current Clamp, AC Adapter, 3kA ac AC Max - UKAS Calibrated

View all Current Clamps

Subtotal (1 unit)*

£224.32

(exc. VAT)

£269.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£224.32

*price indicative

RS Stock No.:
123-2246
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Adapter Type

AC

Maximum AC Current

3kA ac

Best Accuracy

±0.5 % ± 5 Digits (AC Voltage), 1 (AC Current) %

Calibrated

UKAS

Maximum Conductor Size

194mm

Maximum Bandwidth

10kHz

Model Number p

ICA3000

COO (Country of Origin):
TW

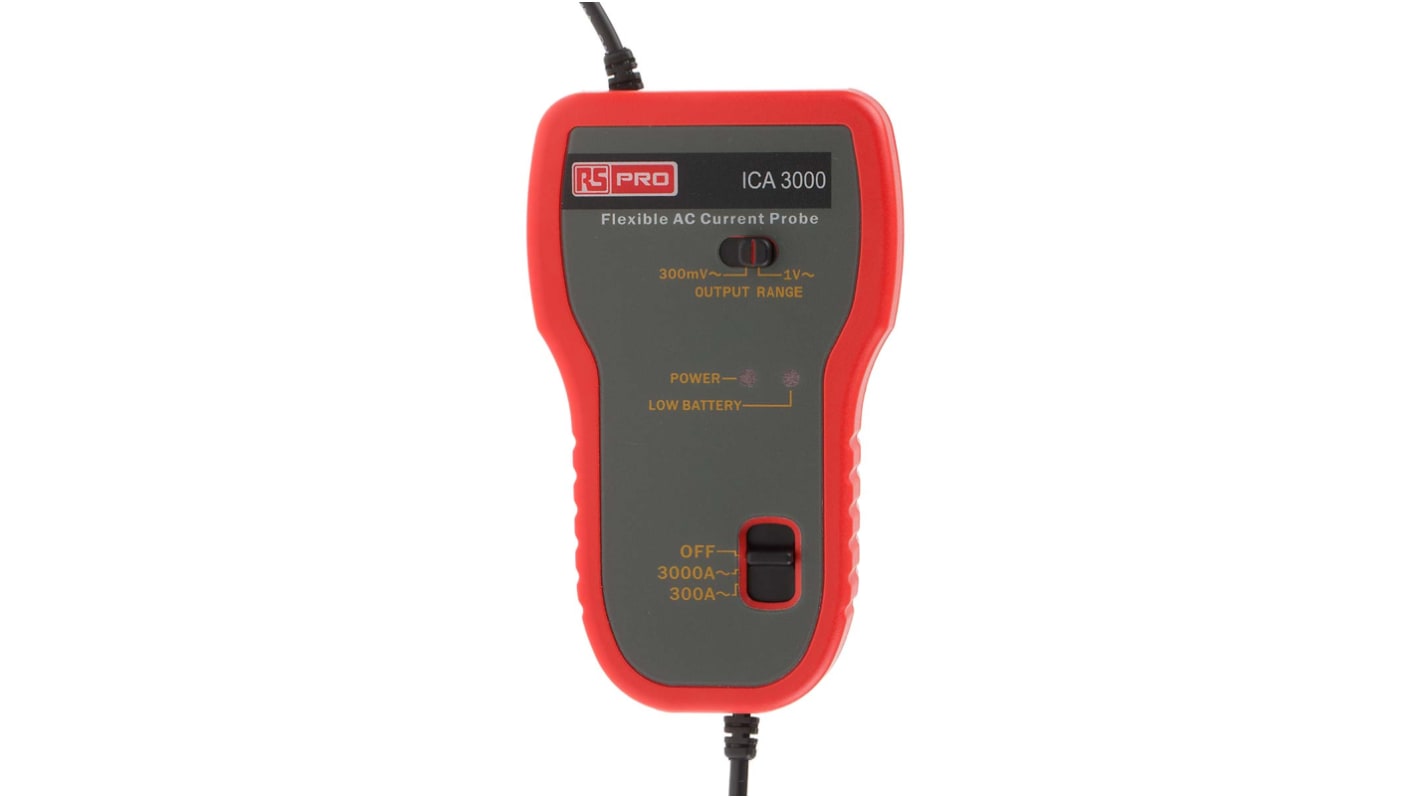

RS Pro ICA3000 Flexible 3000 A Current Probe


RS Pro ICA3000 is a great value, flexible probe. It differs from normal clampmeters because it can pass through obstacles at will and wind many conducting wires simultaneously.

Features and Benefits


2 selectable ac current ranges, 300 A and 3000 A
DC offset < 20 mVDC (3000 A AC range), < 20 mVDC (300 A AC range)
2 output sensitivities, 300 mV/A and 1 V/A
Wide bandwidth (-3dB) 10 to 10 kHz, low phase shift
Low battery indication
Input protection up to 600 V
Noise < 2 mVACRMS
Load Impedance 1kΩ
Battery 2 x AA 1.5V Alkaline (2000 mAHrs)
Battery life 300 hours
Probe length 24 in / 610 mm
Cable length 1700 mm from probe to box, 1700 mm from box to output
Operating environment -10 to +50 °C, 15% to 85% RH
Storage environment -20 to +60 °C, 15% to 85% RH
Terminated with right angle 4 mm shrouded plugs
Dimensions (box): 130 x 80 x 43 mm
Weight 430 g

Areas of Application


Any electrical system
Multimeters
Recorders
Data loggers

Standards

EN61010-1 Cat III, 600V

Supplied with

Operator manual, AA alkaline batteries (x2)
