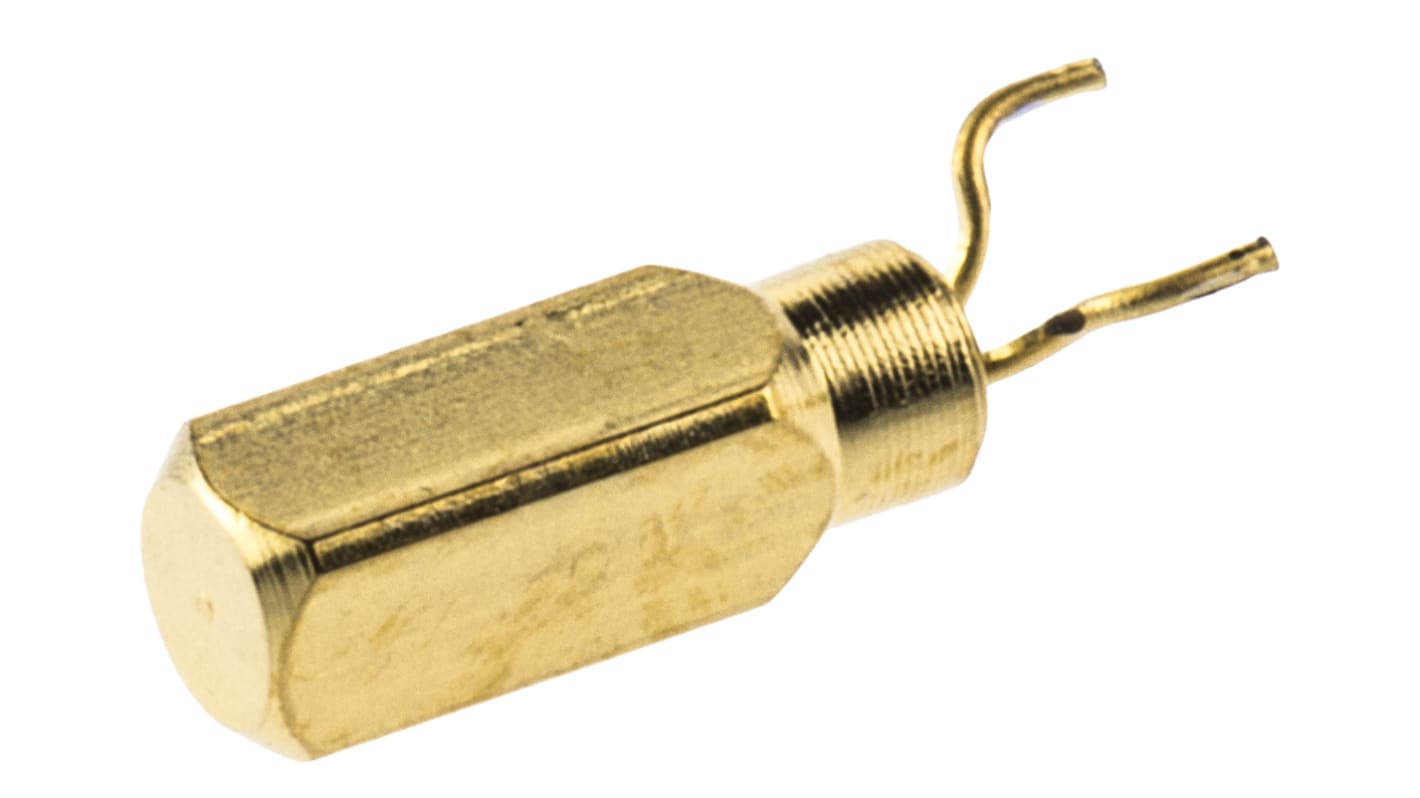

Micro Crystal 32.768 kHz Crystal ±20 ppm Surface Mount 2-Pin 2 mm 6 mm 2mm
- RS Stock No.:
- 672-7584
- Mfr. Part No.:
- MS1V-T1K 32.768kHz 6pF +-20ppm
- Brand:
- Micro Crystal
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£4.69
(exc. VAT)
£5.63
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,525 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.938 | £4.69 |
| 50 - 95 | £0.88 | £4.40 |
| 100 - 245 | £0.834 | £4.17 |
| 250 - 495 | £0.804 | £4.02 |
| 500 + | £0.78 | £3.90 |
*price indicative
- RS Stock No.:
- 672-7584
- Mfr. Part No.:
- MS1V-T1K 32.768kHz 6pF +-20ppm
- Brand:
- Micro Crystal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Micro Crystal | |
| Standard Frequency | 32.768kHz | |
| Product Type | Crystal | |
| Mount Type | Surface | |
| Load Capacitance | 6pF | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Pin Count | 2 | |
| Length | 6mm | |
| Width | 2mm | |
| Height | 2mm | |
| Frequency Tolerance | ±20 ppm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series Resistance | 60kΩ | |
| Standards/Approvals | RoHS | |
| Series | MS1V-T1K | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Micro Crystal | ||
Standard Frequency 32.768kHz | ||
Product Type Crystal | ||
Mount Type Surface | ||
Load Capacitance 6pF | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Pin Count 2 | ||
Length 6mm | ||
Width 2mm | ||
Height 2mm | ||
Frequency Tolerance ±20 ppm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series Resistance 60kΩ | ||
Standards/Approvals RoHS | ||
Series MS1V-T1K | ||
Automotive Standard No | ||
MS1V-T1K
Watch Crystals 32.768kHz
