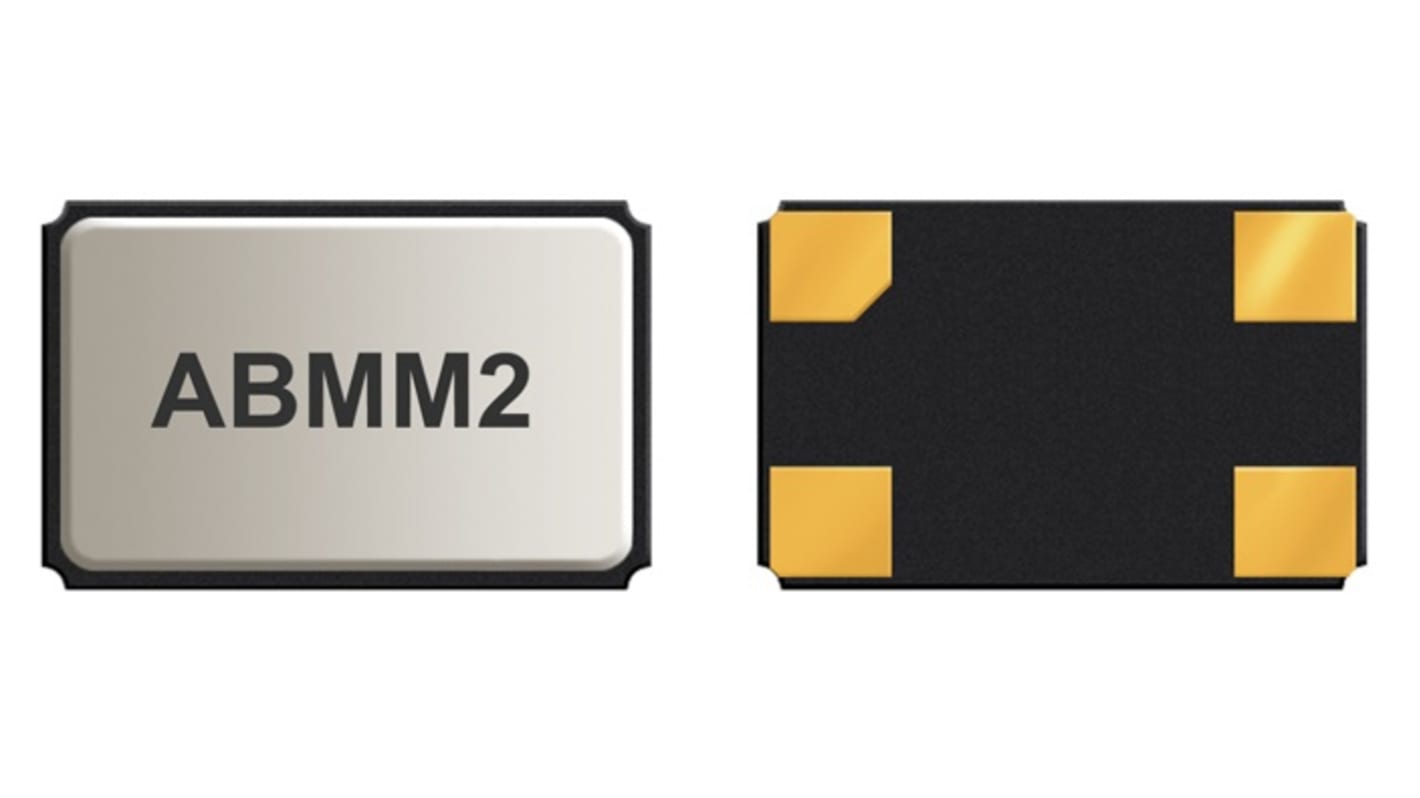

Abracon 20MHz Crystal Unit SMD 4-Pin 6 x 3.5 x 1.2mm
- RS Stock No.:
- 241-3034
- Mfr. Part No.:
- ABMM2-20.000MHZ-E2-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 reel of 1000 units)*
£435.00
(exc. VAT)
£522.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.435 | £435.00 |
| 2000 - 4000 | £0.422 | £422.00 |
| 5000 + | £0.41 | £410.00 |
*price indicative
- RS Stock No.:
- 241-3034
- Mfr. Part No.:
- ABMM2-20.000MHZ-E2-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 20MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | SMD | |
| Pin Count | 4 | |
| Width | 3.5mm | |
| Dimensions | 6 x 3.5 x 1.2mm | |
Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 20MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type SMD | ||
Pin Count 4 | ||
Width 3.5mm | ||
Dimensions 6 x 3.5 x 1.2mm | ||
The Abracon Ceramic surface mount low profile quartz crystals is used in Computers, Modems, Microprocessors, Communication, Test equipment, PCMCIA.
Frequency 20 MHz
Operating Temperature -20°C ∼ 70°C
ESR (Equivalent Series Resistance) 50 Ω
Suitable for RoHS compliant reflow
Low height 1.2 mm max
Seam sealed ceramic package assures high reliability
Available tight tolerance and stability
Operating Temperature -20°C ∼ 70°C
ESR (Equivalent Series Resistance) 50 Ω
Suitable for RoHS compliant reflow
Low height 1.2 mm max
Seam sealed ceramic package assures high reliability
Available tight tolerance and stability
