Abracon 32 MHz Crystal 20 ppm ABM12 4-Pin 0.45 mm 1.6 mm 1.2mm
- RS Stock No.:
- 240-3443
- Mfr. Part No.:
- ABM12-32.000MHZ-B2X-T3
- Brand:
- Abracon
Subtotal (1 reel of 3000 units)*
£2,175.00
(exc. VAT)
£2,610.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.725 | £2,175.00 |
*price indicative
- RS Stock No.:
- 240-3443
- Mfr. Part No.:
- ABM12-32.000MHZ-B2X-T3
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Crystal | |
| Standard Frequency | 32MHz | |
| Mount Type | Surface Mount | |
| Load Capacitance | 8pF | |
| Package Type | ABM12 | |
| Pin Count | 4 | |
| Length | 1.6mm | |
| Width | 1.2mm | |
| Height | 0.45mm | |
| Frequency Tolerance | 20 ppm | |
| Frequency Stability | ±50 ppm | |
| Minimum Operating Temperature | -10°C | |
| Series Resistance | 200Ω | |
| Maximum Operating Temperature | 50°C | |
| Series | ABM12 | |
| Standards/Approvals | RoHS/RoHS II | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Crystal | ||
Standard Frequency 32MHz | ||
Mount Type Surface Mount | ||
Load Capacitance 8pF | ||
Package Type ABM12 | ||
Pin Count 4 | ||
Length 1.6mm | ||
Width 1.2mm | ||
Height 0.45mm | ||
Frequency Tolerance 20 ppm | ||
Frequency Stability ±50 ppm | ||
Minimum Operating Temperature -10°C | ||
Series Resistance 200Ω | ||
Maximum Operating Temperature 50°C | ||
Series ABM12 | ||
Standards/Approvals RoHS/RoHS II | ||
Automotive Standard No | ||

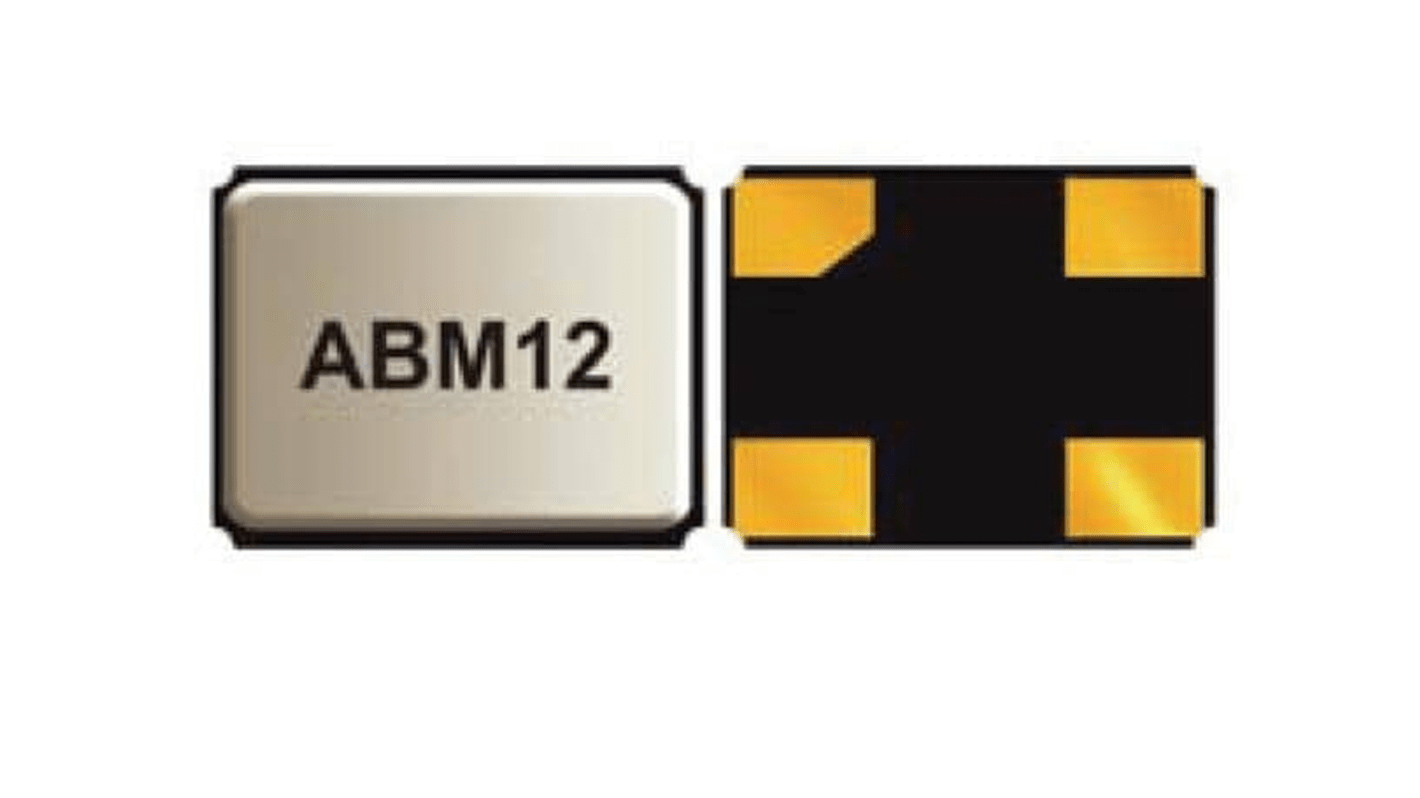

The Abracon ABM12 series is miniature ceramic SMD crystal have RoHS reflow profile and can be used applications like Bluetooth, wireless, computers, modem, PCMCIA etc.
Suitable for RoHS reflow profile
Available tight tolerance and stability
Electron beam sealed ceramic package assures high precision and reliability
