IQD 32.768 kHz Crystal Unit ±20 ppm SMT 2-Pin 0.9 mm 3.2 mm 1.5mm
- RS Stock No.:
- 212-0570
- Mfr. Part No.:
- LFXTAL009706
- Brand:
- IQD
Bulk discount available
Subtotal (1 pack of 5 units)*
£1.70
(exc. VAT)
£2.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,415 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £0.34 | £1.70 |
| 25 - 45 | £0.238 | £1.19 |
| 50 - 70 | £0.228 | £1.14 |
| 75 + | £0.214 | £1.07 |
*price indicative
- RS Stock No.:
- 212-0570
- Mfr. Part No.:
- LFXTAL009706
- Brand:
- IQD
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IQD | |
| Standard Frequency | 32.768kHz | |
| Product Type | Crystal Unit | |
| Mount Type | Surface Mount | |
| Load Capacitance | 9pF | |
| Package Type | SMT | |
| Pin Count | 2 | |
| Length | 3.2mm | |
| Width | 1.5mm | |
| Height | 0.9mm | |
| Frequency Tolerance | ±20 ppm | |
| Minimum Operating Temperature | 55°C | |
| Frequency Stability | ±3 ppm max in 1st year @ 25°C | |
| Series Resistance | 70kΩ | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS, REACH | |
| Series | CFPX-217 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand IQD | ||
Standard Frequency 32.768kHz | ||
Product Type Crystal Unit | ||
Mount Type Surface Mount | ||
Load Capacitance 9pF | ||
Package Type SMT | ||
Pin Count 2 | ||
Length 3.2mm | ||
Width 1.5mm | ||
Height 0.9mm | ||
Frequency Tolerance ±20 ppm | ||
Minimum Operating Temperature 55°C | ||
Frequency Stability ±3 ppm max in 1st year @ 25°C | ||
Series Resistance 70kΩ | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS, REACH | ||
Series CFPX-217 | ||
Automotive Standard No | ||

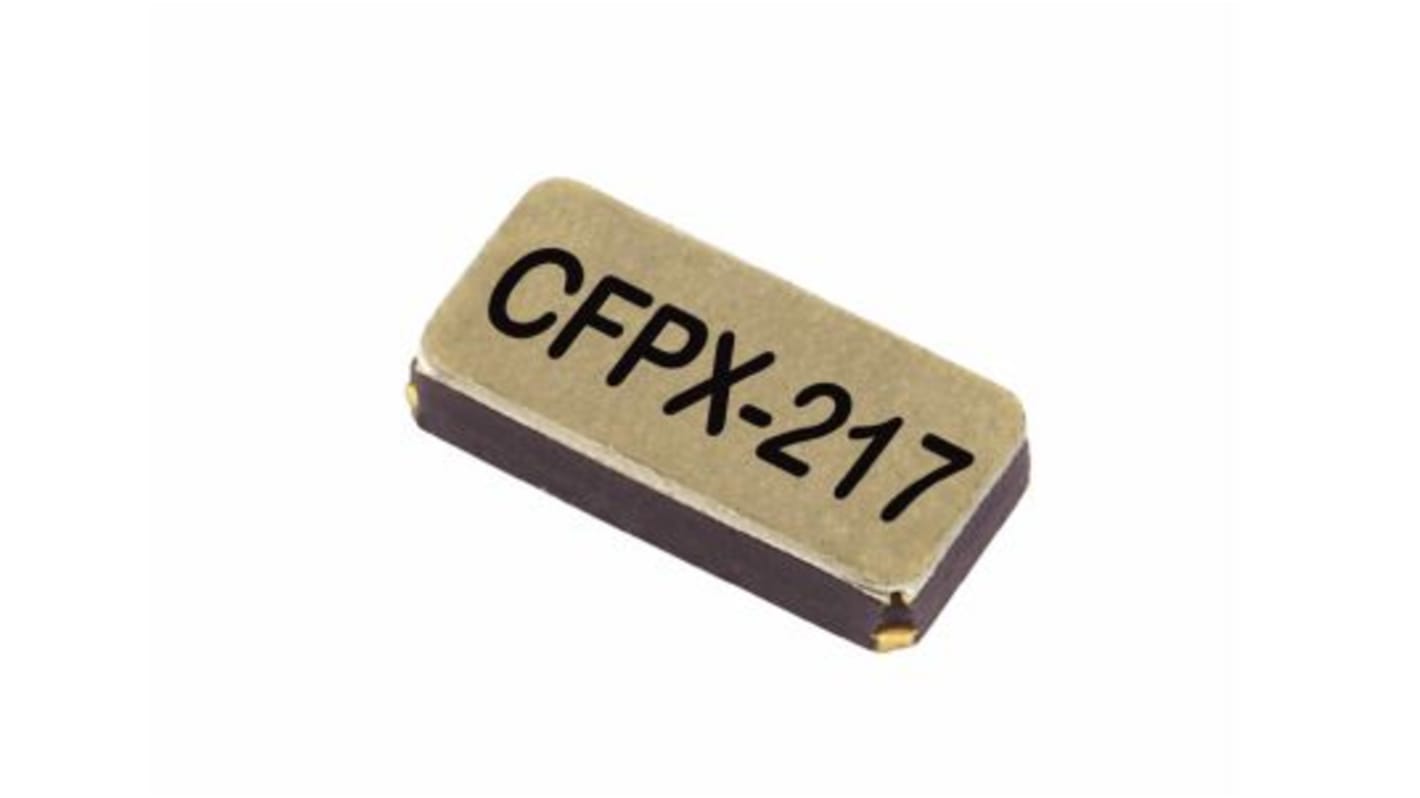

The IQD Quartz Crystal is a 3.2 x 1.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed.
Frequency is 32.7680kHz
Frequency tolerance is ±20.00ppm
Tolerance Condition is at 25°C ±5°C
RoHS Terminations are of NiAu
