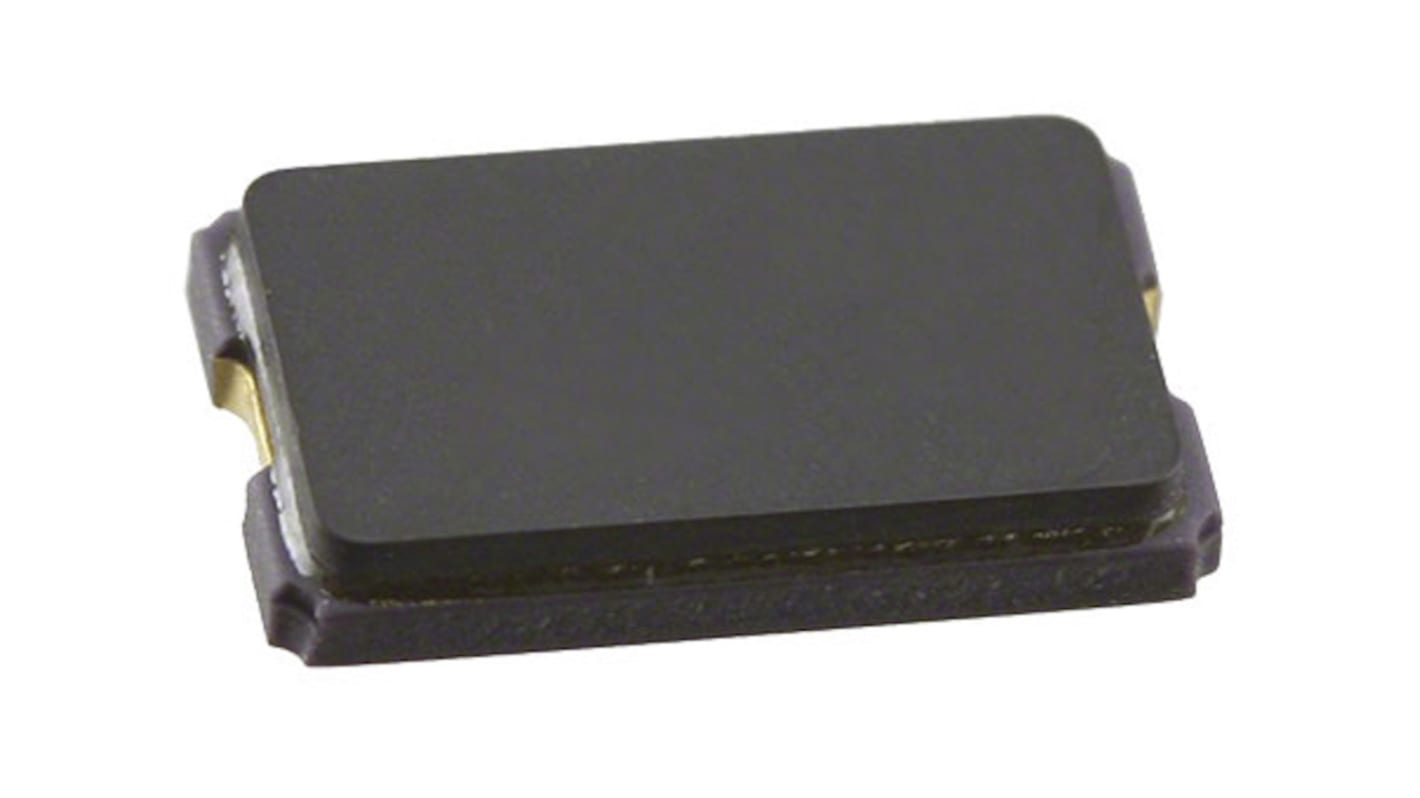

Abracon 8MHz Crystal ±30ppm SMD 8 x 4.5 x 1.6mm
- RS Stock No.:
- 171-0612
- Mfr. Part No.:
- ABM2-8.000MHZ-D4Y-T
- Brand:
- Abracon
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 171-0612
- Mfr. Part No.:
- ABM2-8.000MHZ-D4Y-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 8MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | SMD | |
| Length | 8mm | |
| Width | 4.5mm | |
| Height | 1.6mm | |
| Dimensions | 8 x 4.5 x 1.6mm | |
| Frequency Tolerance | ±30ppm | |
| Frequency Stability | ±30ppm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 8MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type SMD | ||
Length 8mm | ||
Width 4.5mm | ||
Height 1.6mm | ||
Dimensions 8 x 4.5 x 1.6mm | ||
Frequency Tolerance ±30ppm | ||
Frequency Stability ±30ppm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Microprocessor Crystals 8Mhz
Abracon ABM2 series ceramic SMD microprocessor crystals are low in height so good for thin equipment. They have a glass sealed package which assures high reliability and high temperature operation. Tight tolerance and stability available.
Applications
High density applications
Communication and test equipment
Modems
Microprocessor Crystals
PMCIA, Wireless Applications
Communication and test equipment
Modems
Microprocessor Crystals
PMCIA, Wireless Applications
