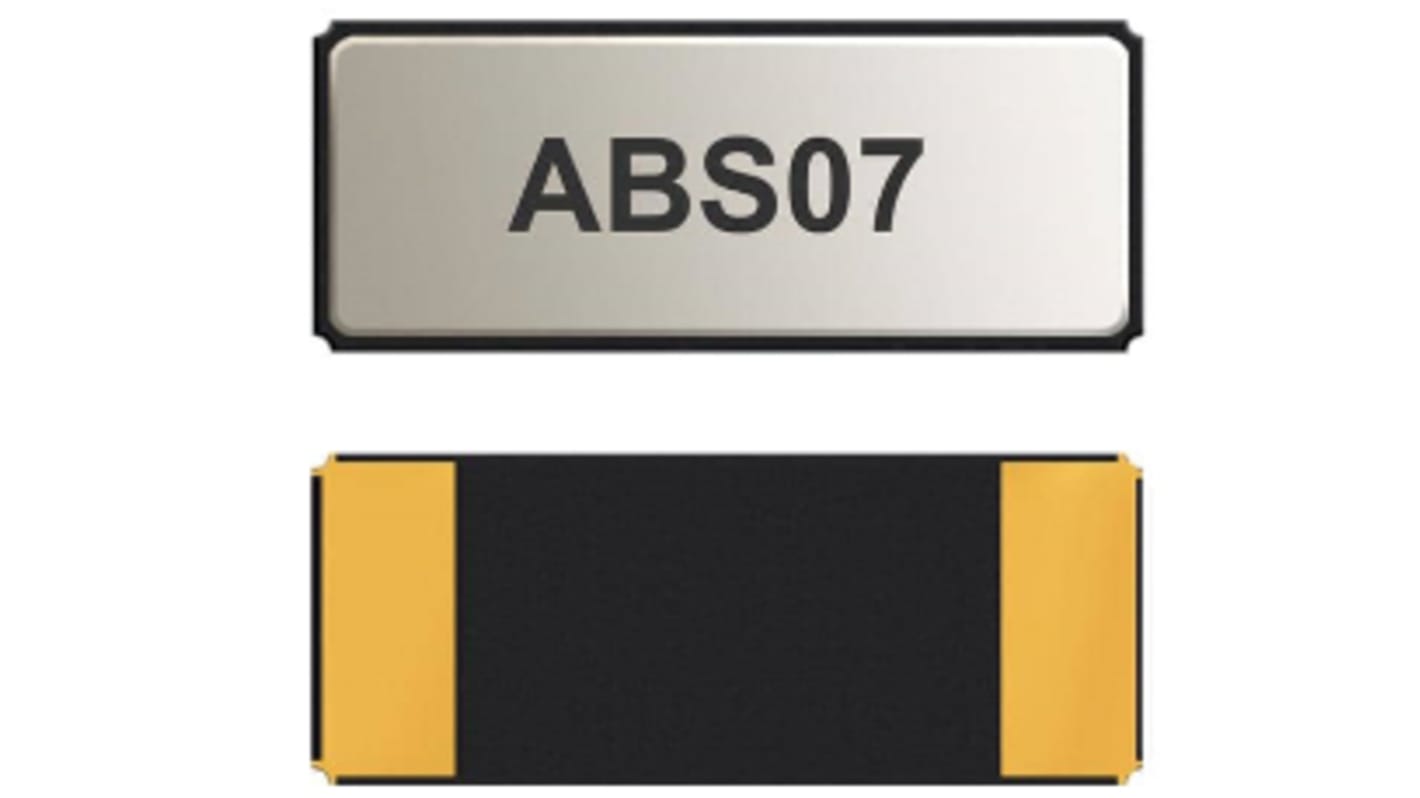

Abracon ABS07W series IoT optimized SMD crystals operate at 32.768 kHz frequency with a low plating load of 3 pF. These crystals are optimized for ESR over an extended operating temperature Ranging from -40 ºC to 85 ºC.These crystals are compact so suited for space constrained designs.
Applications
Wireless Modules
Wearables
Internet Of Things (IoT)
Machine to Machine Conectivity
Bluetooth/Bluetooth low energy
Ultra low-power MCU
ISM band applications
Attribute
Value
Standard Frequency
32.768kHz
Mounting Type
Surface Mount
Load Capacitance
3pF
Package Type
SMD
Length
3.2mm
Width
1.5mm
Height
0.9mm
Dimensions
3.2 x1.5 x 0.9mm
Frequency Stability
±20ppm
Maximum Operating Temperature
85°C
Minimum Operating Temperature
-40°C
