IQD 16 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 1.4 mm 7.5 mm 5.2mm
- RS Stock No.:
- 148-4357
- Distrelec Article No.:
- 304-37-005
- Mfr. Part No.:
- LFXTAL026392
- Brand:
- IQD
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.62
(exc. VAT)
£9.14
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.762 | £7.62 |
| 100 - 190 | £0.607 | £6.07 |
| 200 - 490 | £0.576 | £5.76 |
| 500 - 740 | £0.531 | £5.31 |
| 750 + | £0.503 | £5.03 |
*price indicative
- RS Stock No.:
- 148-4357
- Distrelec Article No.:
- 304-37-005
- Mfr. Part No.:
- LFXTAL026392
- Brand:
- IQD
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IQD | |
| Product Type | Crystal Unit | |
| Standard Frequency | 16MHz | |
| Mount Type | Surface | |
| Load Capacitance | 16pF | |
| Package Type | Surface Mount | |
| Pin Count | 4 | |
| Length | 7.5mm | |
| Width | 5.2mm | |
| Height | 1.4mm | |
| Frequency Tolerance | ±30 ppm | |
| Minimum Operating Temperature | -20°C | |
| Frequency Stability | ±50 ppm | |
| Series Resistance | 40Ω | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand IQD | ||
Product Type Crystal Unit | ||
Standard Frequency 16MHz | ||
Mount Type Surface | ||
Load Capacitance 16pF | ||
Package Type Surface Mount | ||
Pin Count 4 | ||
Length 7.5mm | ||
Width 5.2mm | ||
Height 1.4mm | ||
Frequency Tolerance ±30 ppm | ||
Minimum Operating Temperature -20°C | ||
Frequency Stability ±50 ppm | ||
Series Resistance 40Ω | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||

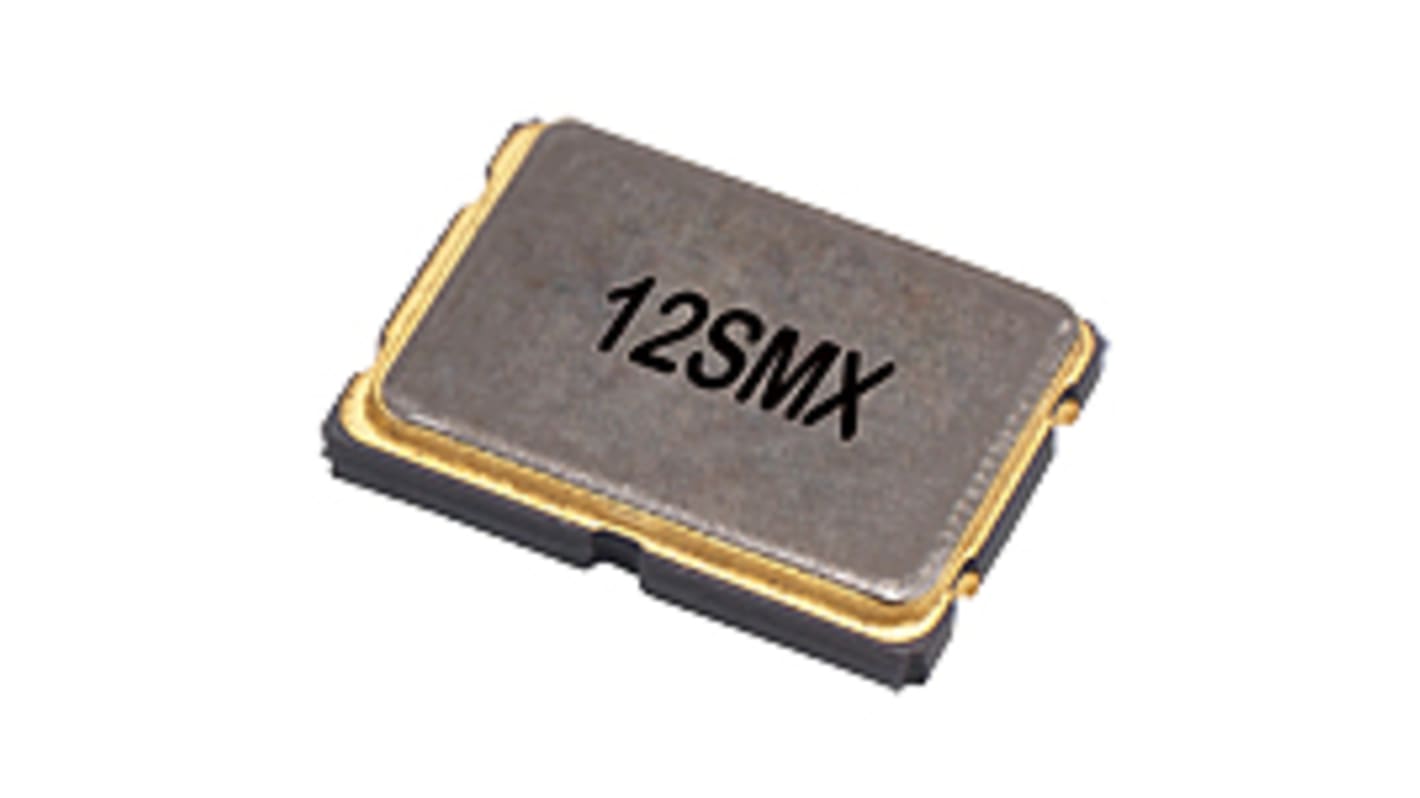

Standard 7 x 5mm SMD crystal 4 pad (metal lid) A ceramic package with a seam sealed metal lid, hermetically sealed. 4 pad device metal lid.
Model 12SMX-B
Model Issue number 13
