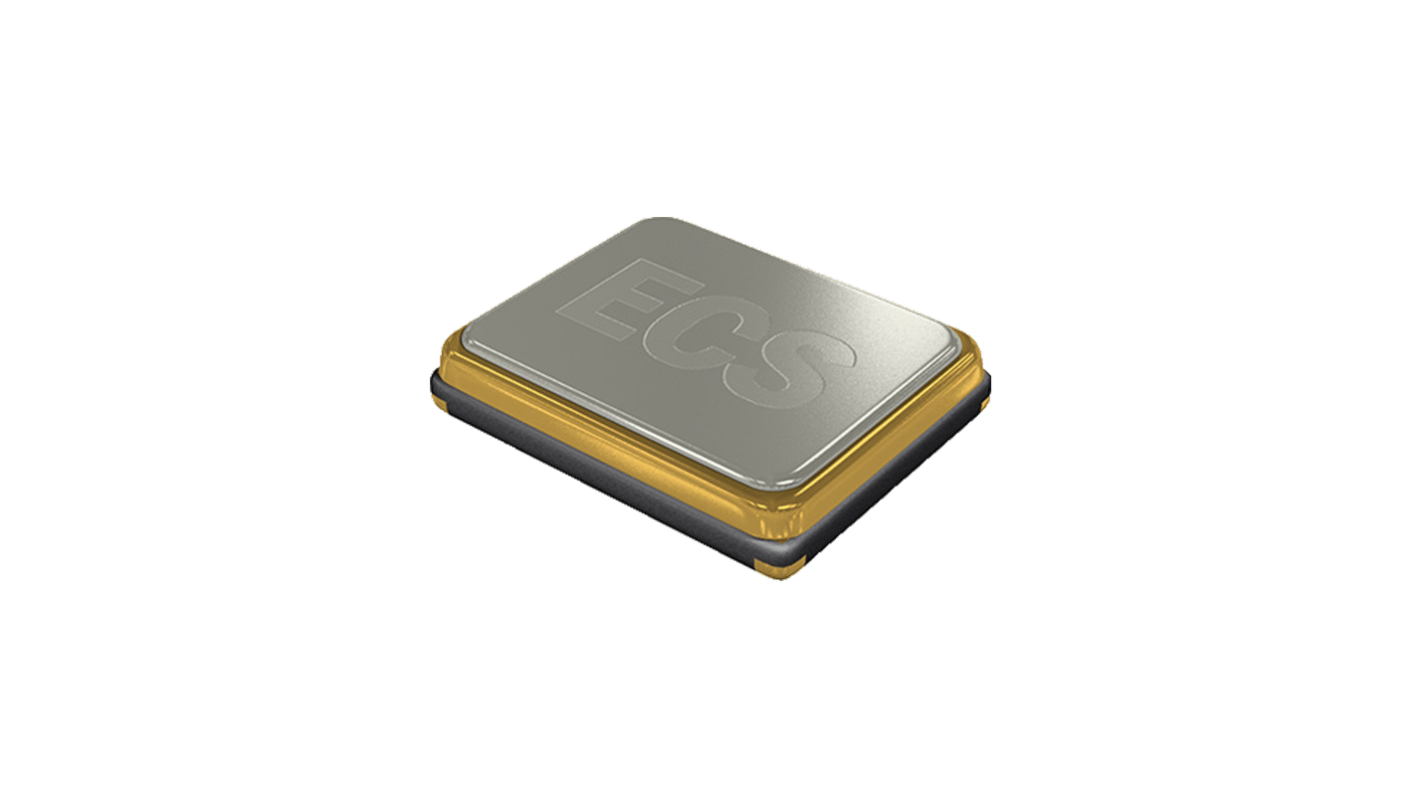

ECS Inc International 39 MHz Crystal Oscillator ±8 ppm Surface Mount 4-Pin 0.45 mm 2 mm 1.6mm
- RS Stock No.:
- 301-240
- Mfr. Part No.:
- ECS-390-CDX-1932
- Brand:
- ECS Inc International
Bulk discount available
Subtotal (1 unit)*
£0.40
(exc. VAT)
£0.48
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.40 |
| 10 - 99 | £0.36 |
| 100 - 499 | £0.33 |
| 500 - 999 | £0.31 |
| 1000 + | £0.28 |
*price indicative
- RS Stock No.:
- 301-240
- Mfr. Part No.:
- ECS-390-CDX-1932
- Brand:
- ECS Inc International
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ECS Inc International | |
| Standard Frequency | 39MHz | |
| Product Type | Crystal Oscillator | |
| Mount Type | Surface | |
| Load Capacitance | 10pF | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Pin Count | 4 | |
| Length | 2mm | |
| Width | 1.6mm | |
| Height | 0.45mm | |
| Frequency Tolerance | ±8 ppm | |
| Frequency Stability | ±30 ppm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 95°C | |
| Series Resistance | 35Ω | |
| Series | ECX-1637 | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ECS Inc International | ||
Standard Frequency 39MHz | ||
Product Type Crystal Oscillator | ||
Mount Type Surface | ||
Load Capacitance 10pF | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Pin Count 4 | ||
Length 2mm | ||
Width 1.6mm | ||
Height 0.45mm | ||
Frequency Tolerance ±8 ppm | ||
Frequency Stability ±30 ppm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 95°C | ||
Series Resistance 35Ω | ||
Series ECX-1637 | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The ECS Inc International sophisticated quartz crystal designed for high-frequency applications, offering reliable performance in various environments. With a nominal frequency of 39.000 MHz, this crystal component excels in precision timing solutions, catering to the demanding requirements of electronic devices. Its advanced design features AT cut technology, ensuring stability and minimal frequency drift even in fluctuating temperatures. This product is ideal for use in industrial, automotive, and consumer electronics, providing a robust solution for engineers seeking dependable frequency control. Housed in a compact 2.00mm x 1.60mm package, it provides a perfect fit for space-constrained applications while maintaining excellent electrical characteristics.
Offers exceptional frequency stability for critical applications
Utilises AT cut technology for enhanced performance
Compact size facilitates integration into diverse electronic designs
Ensures reliability across varied operational temperatures
Provides low equivalent series resistance for improved efficiency
Compatible with standard tape and reel packaging for automated assembly
Compliant with environmental regulations for responsible manufacturing
