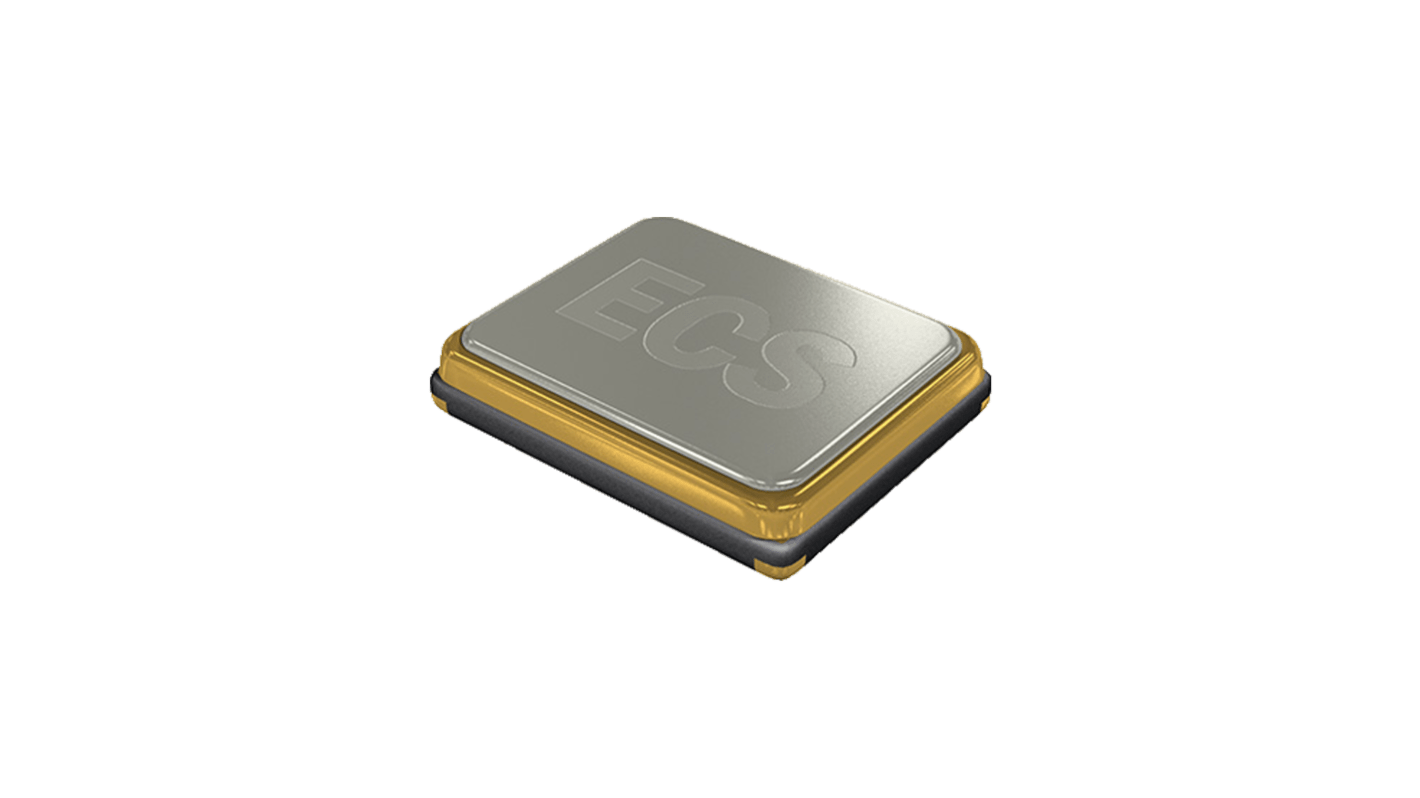

ECS Inc International 12 MHz Crystal Oscillator ±30 ppm Surface Mount 2-Pin 3.2 mm 5mm
- RS Stock No.:
- 301-194
- Mfr. Part No.:
- ECS-120-18-30-JEM-TR
- Brand:
- ECS Inc International
Bulk discount available
Subtotal (1 unit)*
£0.58
(exc. VAT)
£0.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.58 |
| 10 - 99 | £0.52 |
| 100 - 499 | £0.48 |
| 500 - 999 | £0.45 |
| 1000 + | £0.40 |
*price indicative
- RS Stock No.:
- 301-194
- Mfr. Part No.:
- ECS-120-18-30-JEM-TR
- Brand:
- ECS Inc International
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ECS Inc International | |
| Product Type | Crystal Oscillator | |
| Standard Frequency | 12MHz | |
| Mount Type | Surface | |
| Load Capacitance | 18pF | |
| Packaging | Tape and Reel | |
| Package Type | Surface Mount | |
| Pin Count | 2 | |
| Length | 3.2mm | |
| Width | 5mm | |
| Frequency Tolerance | ±30 ppm | |
| Frequency Stability | ±50 ppm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Series Resistance | 100Ω | |
| Standards/Approvals | RoHS | |
| Series | ECX-53 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ECS Inc International | ||
Product Type Crystal Oscillator | ||
Standard Frequency 12MHz | ||
Mount Type Surface | ||
Load Capacitance 18pF | ||
Packaging Tape and Reel | ||
Package Type Surface Mount | ||
Pin Count 2 | ||
Length 3.2mm | ||
Width 5mm | ||
Frequency Tolerance ±30 ppm | ||
Frequency Stability ±50 ppm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Series Resistance 100Ω | ||
Standards/Approvals RoHS | ||
Series ECX-53 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The ECS Inc International miniature surface mount crystal oscillator is designed to meet the rigorous demands of modern electronic applications. With its compact 5.00mm x 3.20mm package, it boasts an impressive frequency performance of 12 MHz, making it ideal for use in consumer electronics, automotive systems, and industrial devices. It excels in providing a reliable timekeeping function while offering exceptional frequency stability and low power consumption, ensuring optimal performance in space-sensitive designs. Engineered for longevity, this product adheres to RoHS standards and is tailored for diverse operating environments, fulfilling the specific needs of various industry sectors.
Compact design allows for integration in space-restricted applications
Optimised for low power consumption, enhancing battery life in portable devices
Exceptional frequency stability ensures consistent performance over varying temperatures
RoHS compliant, meeting modern environmental standards for safety
Versatile application across multiple industries including IoT and automotive markets
Supports a broad operating temperature range for improved reliability in challenging environments
