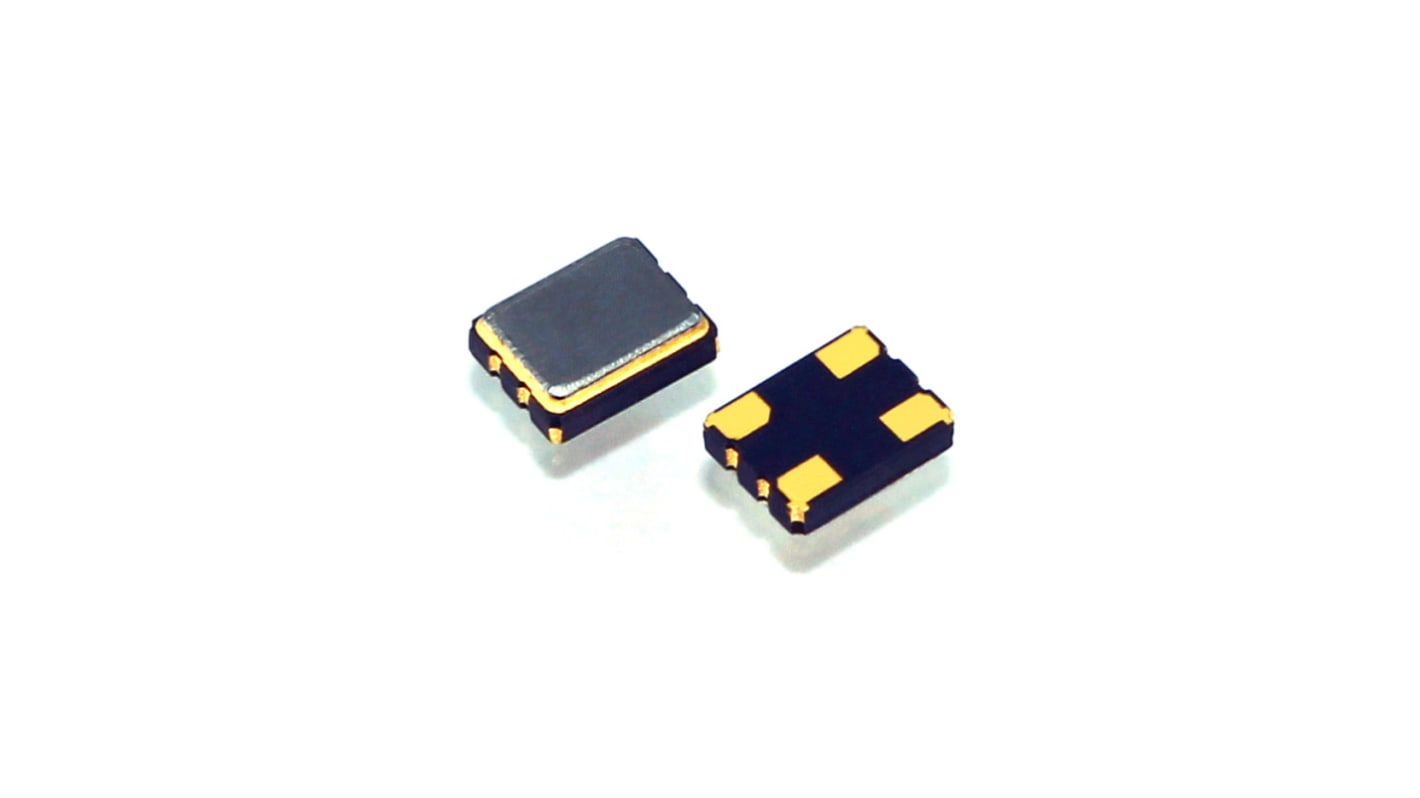

Ecliptek, 27MHz XO Oscillator, 50 ppm CMOS, 4-Pin Surface Mount EB13E2H2H-27.000M TR
- RS Stock No.:
- 219-1992
- Mfr. Part No.:
- EB13E2H2H-27.000M TR
- Brand:
- Ecliptek
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.25
(exc. VAT)
£5.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £0.85 | £4.25 |
| 25 - 95 | £0.714 | £3.57 |
| 100 - 245 | £0.626 | £3.13 |
| 250 - 495 | £0.586 | £2.93 |
| 500 + | £0.558 | £2.79 |
*price indicative
- RS Stock No.:
- 219-1992
- Mfr. Part No.:
- EB13E2H2H-27.000M TR
- Brand:
- Ecliptek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ecliptek | |
| Oscillator Type | XO | |
| Product Type | Oscillator | |
| Output Frequency | 27MHz | |
| Frequency Stability | 50 ppm | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Maximum Supply Voltage | 3.3V | |
| Output Level | CMOS | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Minimum Operating Temperature | 200°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | No | |
| Series | EB13E2 | |
| Width | 2.5mm | |
| Height | 0.9mm | |
| Length | 3.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Ecliptek | ||
Oscillator Type XO | ||
Product Type Oscillator | ||
Output Frequency 27MHz | ||
Frequency Stability 50 ppm | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Maximum Supply Voltage 3.3V | ||
Output Level CMOS | ||
Mount Type Surface | ||
Pin Count 4 | ||
Minimum Operating Temperature 200°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals No | ||
Series EB13E2 | ||
Width 2.5mm | ||
Height 0.9mm | ||
Length 3.2mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- KR
The Ecliptek EB13E2 series quartz crystal clock oscillator has nominal frequency of 27MHz. It has frequency tolerance of ±50ppm.
Tri-state logic control
Tape and reel packaging
