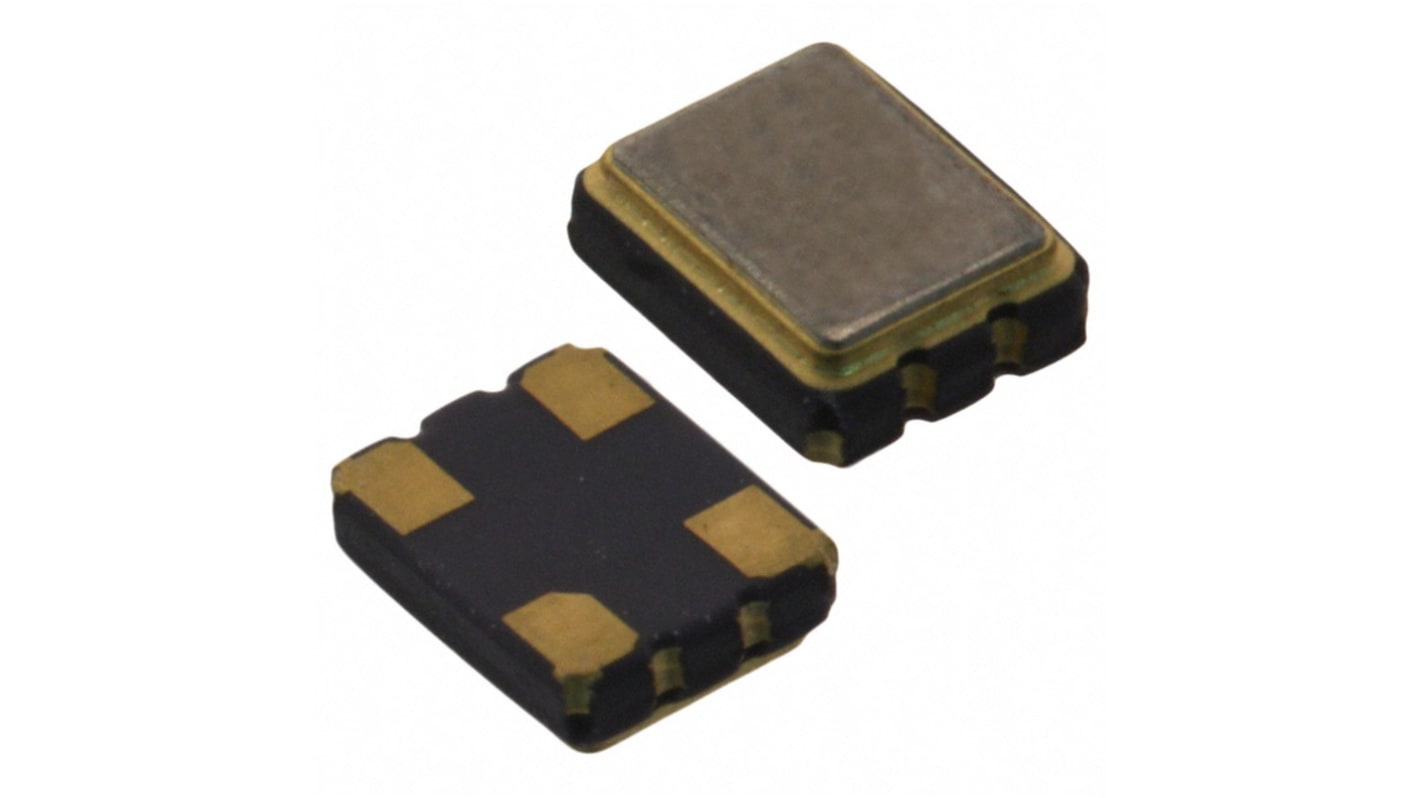

Renesas Electronics, 8MHz Oscillator, ±25ppm LVCMOS SMD XLH536080.000000I
- RS Stock No.:
- 217-7993P
- Mfr. Part No.:
- XLH536080.000000I
- Brand:
- Renesas Electronics
Subtotal 5 units (supplied as a tape)*
£7.72
(exc. VAT)
£9.265
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 400 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 + | £1.544 |
*price indicative
- RS Stock No.:
- 217-7993P
- Mfr. Part No.:
- XLH536080.000000I
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Output Frequency | 8MHz | |
| Frequency Stability | ±25ppm | |
| Package Type | SMD | |
| Output Level | LVCMOS | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Output Frequency 8MHz | ||
Frequency Stability ±25ppm | ||
Package Type SMD | ||
Output Level LVCMOS | ||
The Renesas XL devices (XO and VCXO options) are ultra-precision crystal oscillators with 750 to 890fs typical phase jitter over 12kHz to 20MHz bandwidth. Available in a wide frequency range from 0.750MHz to 1350MHz, the XL series crystal oscillators utilize a family of proprietary ASICs, with a key focus on noise reduction technologies.
Output types: LVDS, LVPECL, LVCMOS
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Supply voltage: 2.5V or 3.3V
Package options:
3.2 x 2.5 x 1.0 mm (not available for VCXO)
5.0 x 3.2 x 1.2 mm
7.0 x 5.0 x 1.3 mm
Operating temperature: -20°C to +70°C
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Supply voltage: 2.5V or 3.3V
Package options:
3.2 x 2.5 x 1.0 mm (not available for VCXO)
5.0 x 3.2 x 1.2 mm
7.0 x 5.0 x 1.3 mm
Operating temperature: -20°C to +70°C
