- RS Stock No.:
- 216-6287
- Mfr. Part No.:
- XLH536024.000000I
- Brand:
- Renesas Electronics
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each (In a Pack of 10)
£1.058
(exc. VAT)
£1.27
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 40 | £1.058 | £10.58 |
50 - 90 | £1.037 | £10.37 |
100 - 240 | £0.935 | £9.35 |
250 - 490 | £0.917 | £9.17 |
500 + | £0.886 | £8.86 |
*price indicative |
- RS Stock No.:
- 216-6287
- Mfr. Part No.:
- XLH536024.000000I
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details

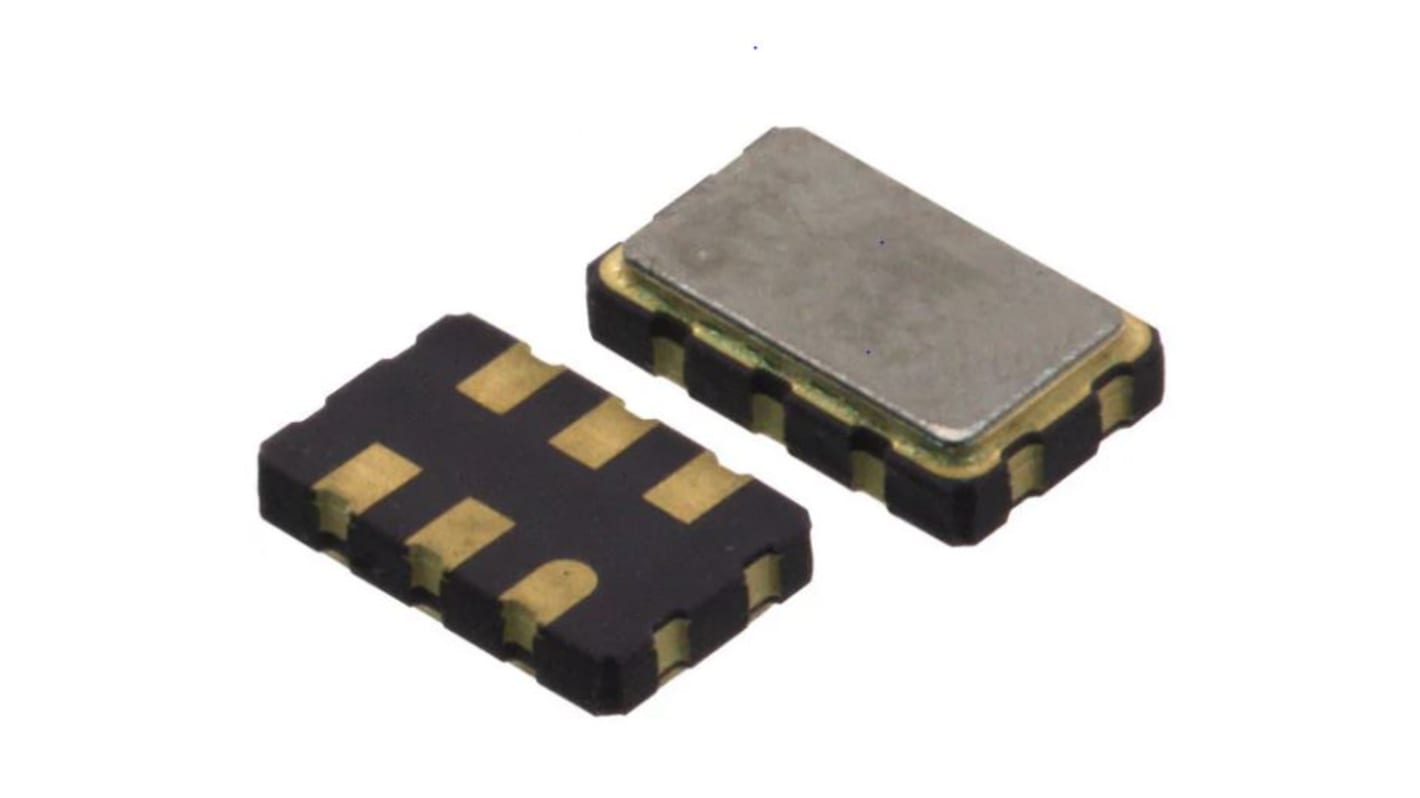

The Renesas Electronics IDT XL devices (XO and VCXO options) are ultra-precision crystal oscillators with 750 to 890fs typical phase jitter over 12kHz to 20MHz bandwidth. Available in a wide frequency range from 0.750MHz to 1350MHz, the XL series crystal oscillators utilize a family of proprietary ASICs, with a key focus on noise reduction technologies.
Output types: LVDS, LVPECL, LVCMOS
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Supply voltage: 2.5V or 3.3V
Operating temperature: -40°C to +105°C (XO only)
Frequency stability options: ±50 or ±100 ppm
kV of 85ppm/volt typical from 0.5VDC to VDD (VCXO only)
Better than ±10% linearity for Vc range
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Supply voltage: 2.5V or 3.3V
Operating temperature: -40°C to +105°C (XO only)
Frequency stability options: ±50 or ±100 ppm
kV of 85ppm/volt typical from 0.5VDC to VDD (VCXO only)
Better than ±10% linearity for Vc range
Specifications
Attribute | Value |
---|---|
Output Frequency | 0.75MHz |
Frequency Stability | 25ppm |
Package Type | VCXO |
Output Level | LVDS |
