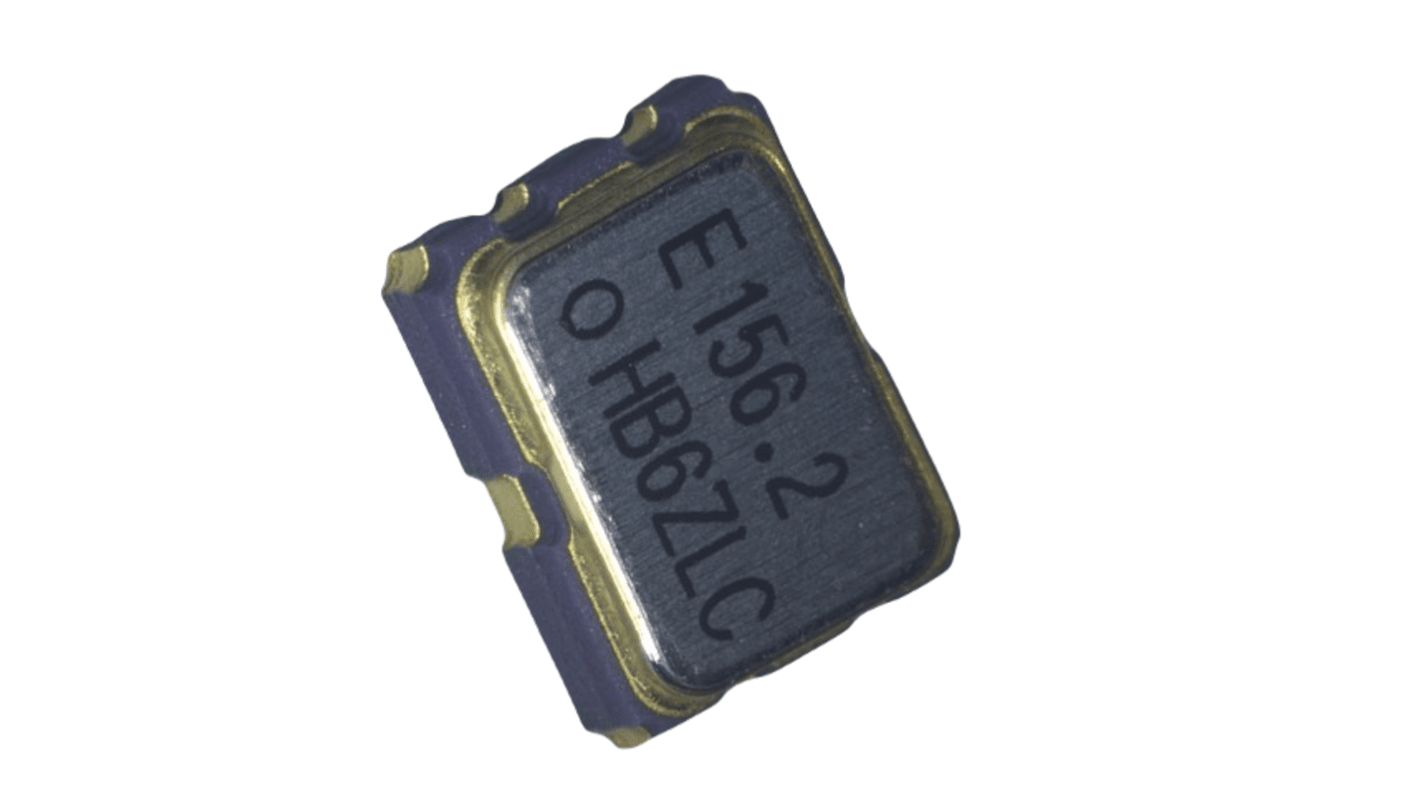

Epson, 156.25MHz SPXO Crystal Oscillator, ±50 ppm HCSL, 6-Pin Surface Mount X1G005141000211
- RS Stock No.:
- 298-665
- Mfr. Part No.:
- X1G005141000211
- Brand:
- Epson
Subtotal (1 unit)*
£8.13
(exc. VAT)
£9.76
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 20 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.13 |
*price indicative
- RS Stock No.:
- 298-665
- Mfr. Part No.:
- X1G005141000211
- Brand:
- Epson
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Epson | |
| Oscillator Type | SPXO | |
| Product Type | Crystal Oscillator | |
| Output Frequency | 156.25MHz | |
| Frequency Stability | ±50 ppm | |
| Package Type | Surface Mount | |
| Output Level | HCSL | |
| Maximum Supply Voltage | 3.46V | |
| Minimum Supply Voltage | 3.13V | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC-60286 and JIS C0806, RoHS | |
| Width | 2.5mm | |
| Length | 3.2mm | |
| Series | X1G0051410002xx | |
| Height | 1.05mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Epson | ||
Oscillator Type SPXO | ||
Product Type Crystal Oscillator | ||
Output Frequency 156.25MHz | ||
Frequency Stability ±50 ppm | ||
Package Type Surface Mount | ||
Output Level HCSL | ||
Maximum Supply Voltage 3.46V | ||
Minimum Supply Voltage 3.13V | ||
Mount Type Surface | ||
Pin Count 6 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC-60286 and JIS C0806, RoHS | ||
Width 2.5mm | ||
Length 3.2mm | ||
Series X1G0051410002xx | ||
Height 1.05mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The Epson Low jitter crustal oscillator has HCSL output. This product is excellent as a PCI Express reference clock meeting PCIe 1.0 to PCIe 5.0 jitter requirements. It has various high-speed serial communications.
Frequency range is 100 MHz to 325 MHz
Supply voltage 2.5 V Type or 3.3 V Type
Operating temperature is -40 degree Celsius to 105 degree Celsius
Low phase jitter is 180 fs Type
