Electro PJP Alligator Clip, Nickel-Plated Steel Contact, 20A, Black

View all Crocodile Clips

Subtotal (1 unit)*

£2.86

(exc. VAT)

£3.43

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 57 unit(s) ready to ship
  • Plus 55 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£2.86

*price indicative

RS Stock No.:
263-9188
Mfr. Part No.:
5004/LM-IEC-N
Brand:
Electro PJP
Find similar products by selecting one or more attributes.
Select all

Brand

Electro PJP

Current Rating

20A

Jaw Opening

22mm

Contact Material

Nickel-Plated Steel

Insulated

Yes

Colour

Black

COO (Country of Origin):
FR

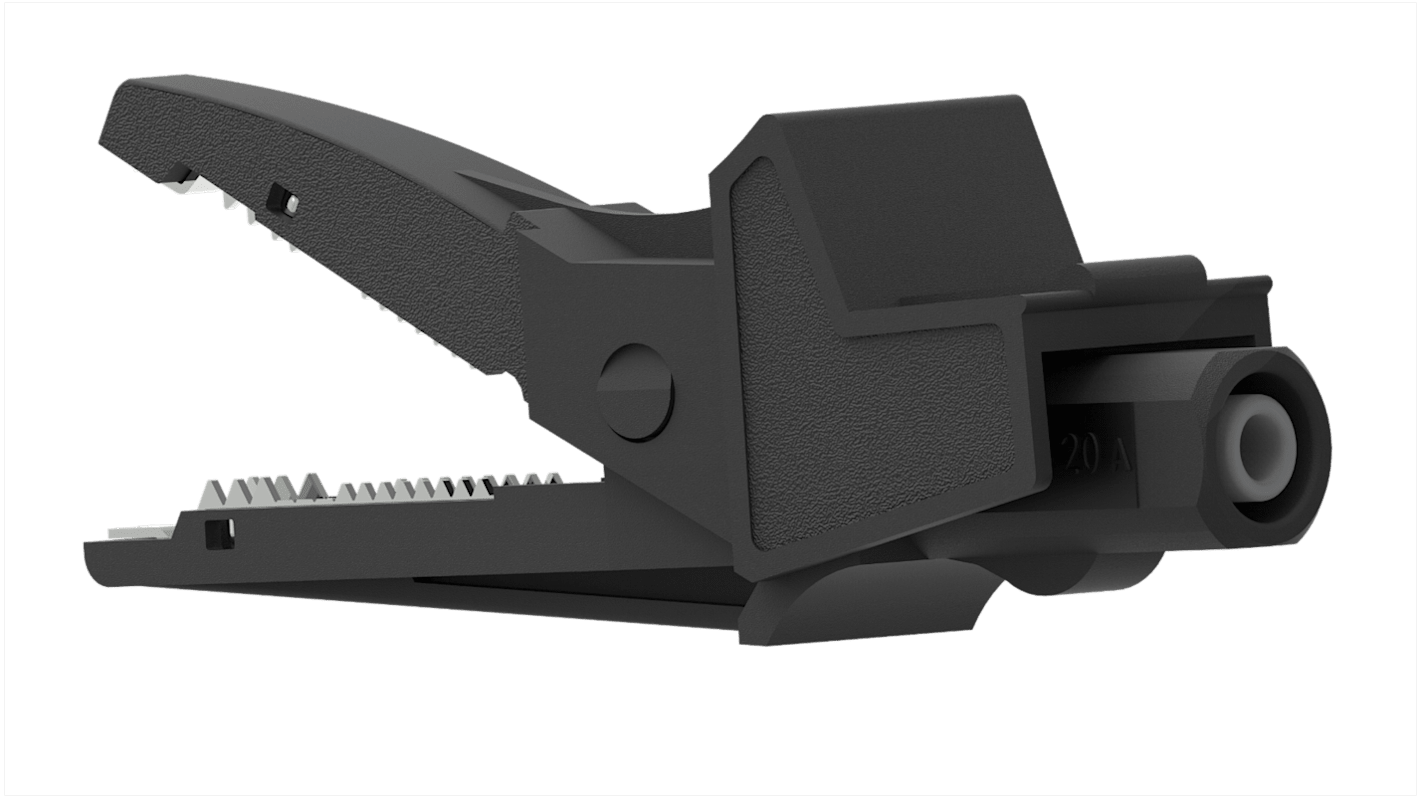

The Electro PJP alligator clip have w/ 4 mm female type banana jack socket. These alligator clip are used to grasp conductive parts safely and electric and electronics testing , controlling and measuring. It has optimum jaw design to clean well a lot of various items as bar, wire, screw and PCB pin. This alligator clip have IP2X touch proof protection on the jaws when closed and the 4 mm female to prevent accidental contacts. The color of this product is black and it has nickel-coated steel, tinned steel and brass conductor. It can be up to 1000 V rated voltage.

RoHS compliant
Weight is 0.023 kg
Operating temperature range of -20 °C to +60 °C
Socket design is compatible with EN / IEC 61010-1:2010 for reinforced insulation at 1000 V CAT II / 1000 V CAT III / 600 V CAT IV and 25 A (at 40 °C)
