Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 123-8226
- Mfr. Part No.:
- WC-SHCM-A03
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | HCH | |
| Product Type | Crimp Tool | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand JST | ||
Series HCH | ||
Product Type Crimp Tool | ||
Priced to Clear Yes | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE

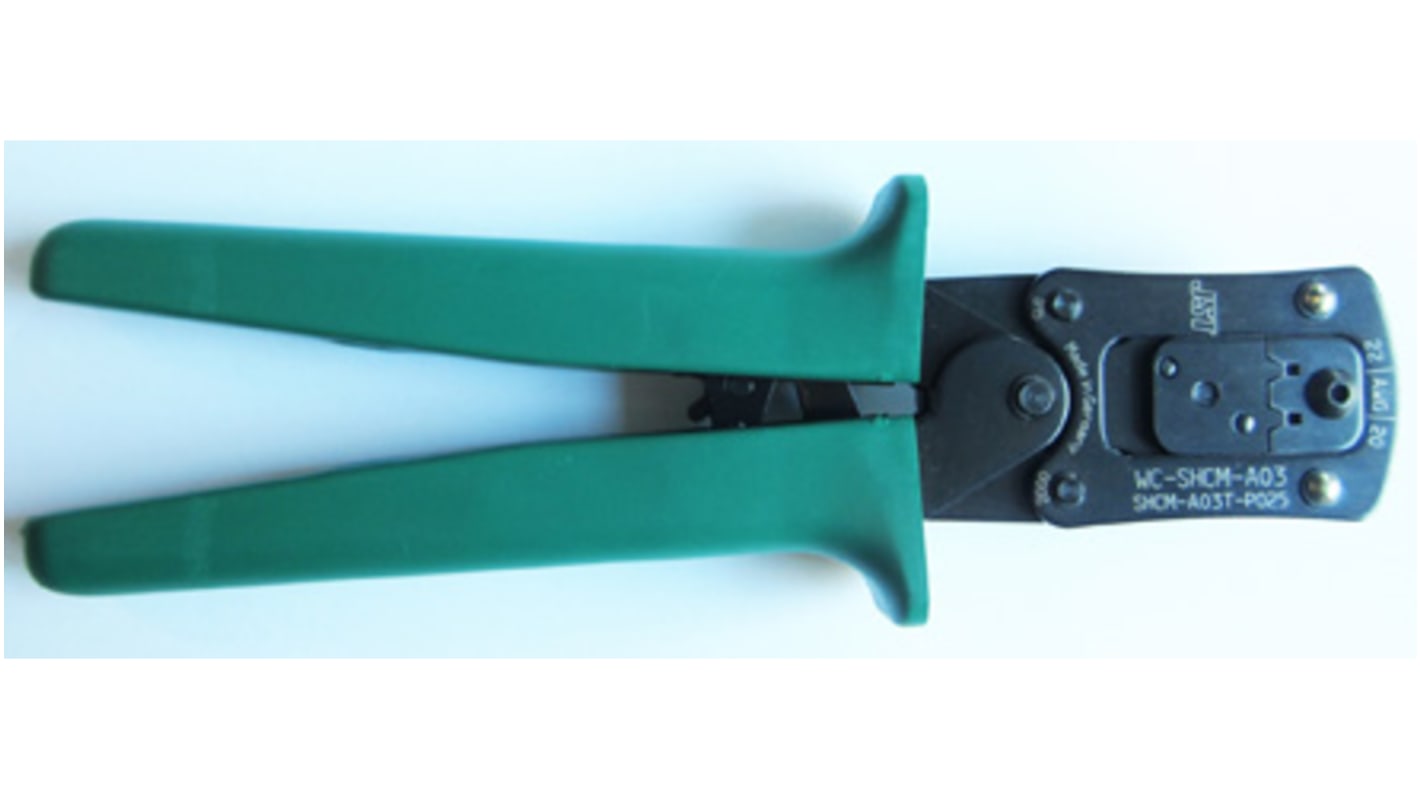

JST HCH Series Tooling
From JST, a parallel action hand tool for the HCH automotive female contacts. The ergonomically designed crimp tool features a flap locator ensuring the correct position of the contact during crimping. The tool has two cavities to suit wire sizes 20 AWG and 22 AWG. Crimping with the tools ratchet mechanism ensures safe and speedy terminations. See part number 123-7021 for typical contacts.
Features and Benefits
Ergonomic soft handles
Ratchet mechanism for crimp conformation
Flap locator ensuring correct position of contact
Precision ground dies
Ratchet mechanism for crimp conformation
Flap locator ensuring correct position of contact
Precision ground dies
JST Range
