TE Connectivity Female Crimp Terminal, 26AWG Min, 20AWG Max
- RS Stock No.:
- 189-5785
- Mfr. Part No.:
- 170262-4
- Brand:
- TE Connectivity

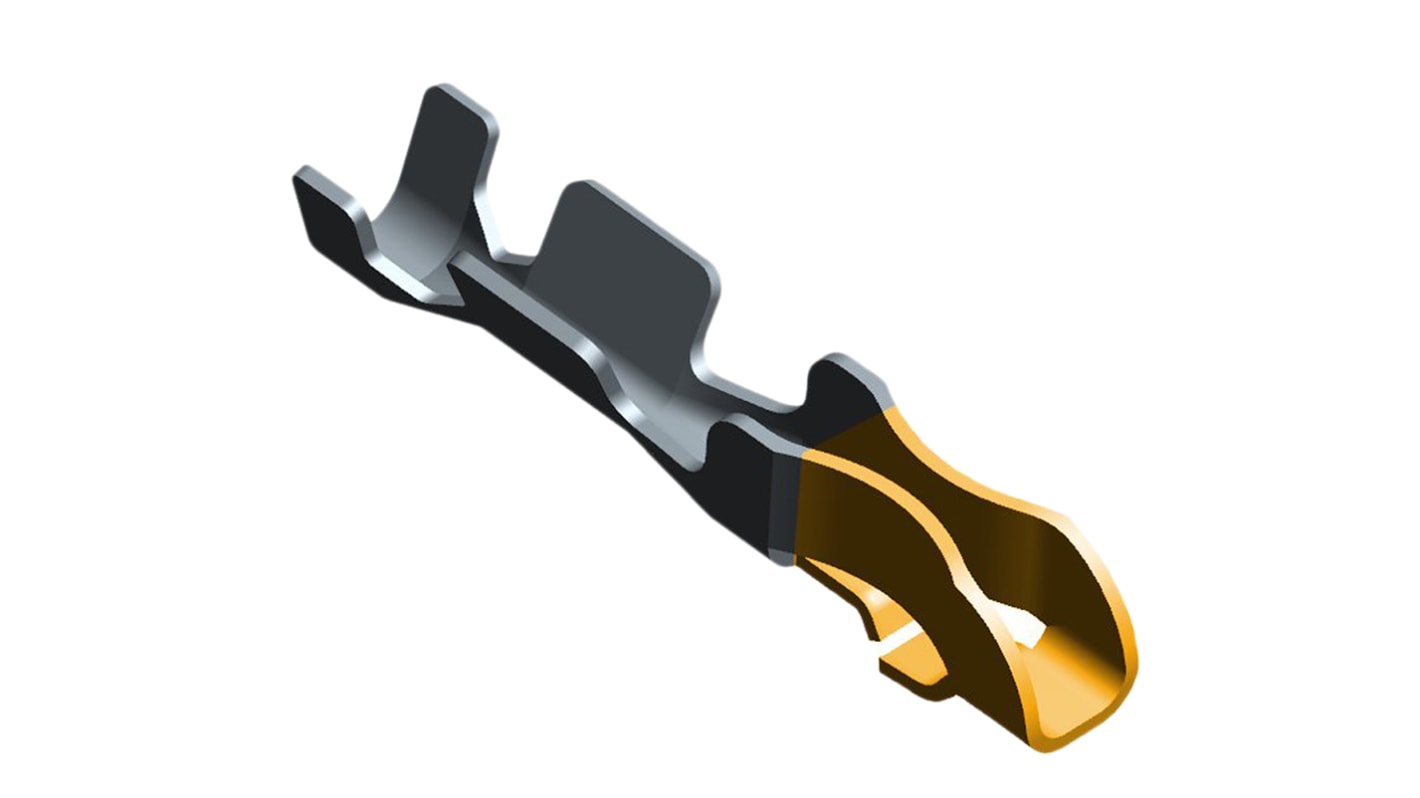

Image representative of range
Subtotal (1 reel of 10000 units)*
£1,090.00
(exc. VAT)
£1,310.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.109 | £1,090.00 |
*price indicative
- RS Stock No.:
- 189-5785
- Mfr. Part No.:
- 170262-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| For Use With | Standard Profile Housing | |
| Minimum Wire Size mm² | 0.12mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Contact Plating | Gold | |
| Maximum Wire Size AWG | 20AWG | |
| Contact Material | Phosphor Bronze | |
| Series Number | 170262 | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
For Use With Standard Profile Housing | ||
Minimum Wire Size mm² 0.12mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Contact Plating Gold | ||
Maximum Wire Size AWG 20AWG | ||
Contact Material Phosphor Bronze | ||
Series Number 170262 | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +105°C | ||
RoHS Status: Exempt
TE Connectivity’s (TE) economy interconnection series (EIS) connectors are a compact, economical solution for high density wiring connections inside electric equipment. EIS connectors are available in standard and low profile wire-to-board and wire- to-wire configurations and are available with 2.5mm and 5.0mm centerlines. EIS connectors have a variety of features including a locking mechanism to ensure positive mating and a broad portfolio to address most design needs.
Wire-to-board and wire-to-wire configurations
Standard and low profile receptacle designs
Free hanging and panel mount cap designs
2.5mm and 5.0mm centerline pitch
Locking mechanism and polarization features to ensure proper mating
Guides for correct contact alignment
Gold plated configurations available
Crimp and IDC termination methods
Positions range from 2 to 12
Highly reliable electrical connection
Compact, economical solution for high density wiring connections
Broad portfolio accomodates most application needs
Design flexibility
Some configurations include self retention features
Applications
Industrial machinery
Factory automation
Business and retail equipment
Commercial and building equipment
Household appliances
Motor vehicles
Broader consumer electronics
Standard and low profile receptacle designs
Free hanging and panel mount cap designs
2.5mm and 5.0mm centerline pitch
Locking mechanism and polarization features to ensure proper mating
Guides for correct contact alignment
Gold plated configurations available
Crimp and IDC termination methods
Positions range from 2 to 12
Highly reliable electrical connection
Compact, economical solution for high density wiring connections
Broad portfolio accomodates most application needs
Design flexibility
Some configurations include self retention features
Applications
Industrial machinery
Factory automation
Business and retail equipment
Commercial and building equipment
Household appliances
Motor vehicles
Broader consumer electronics
