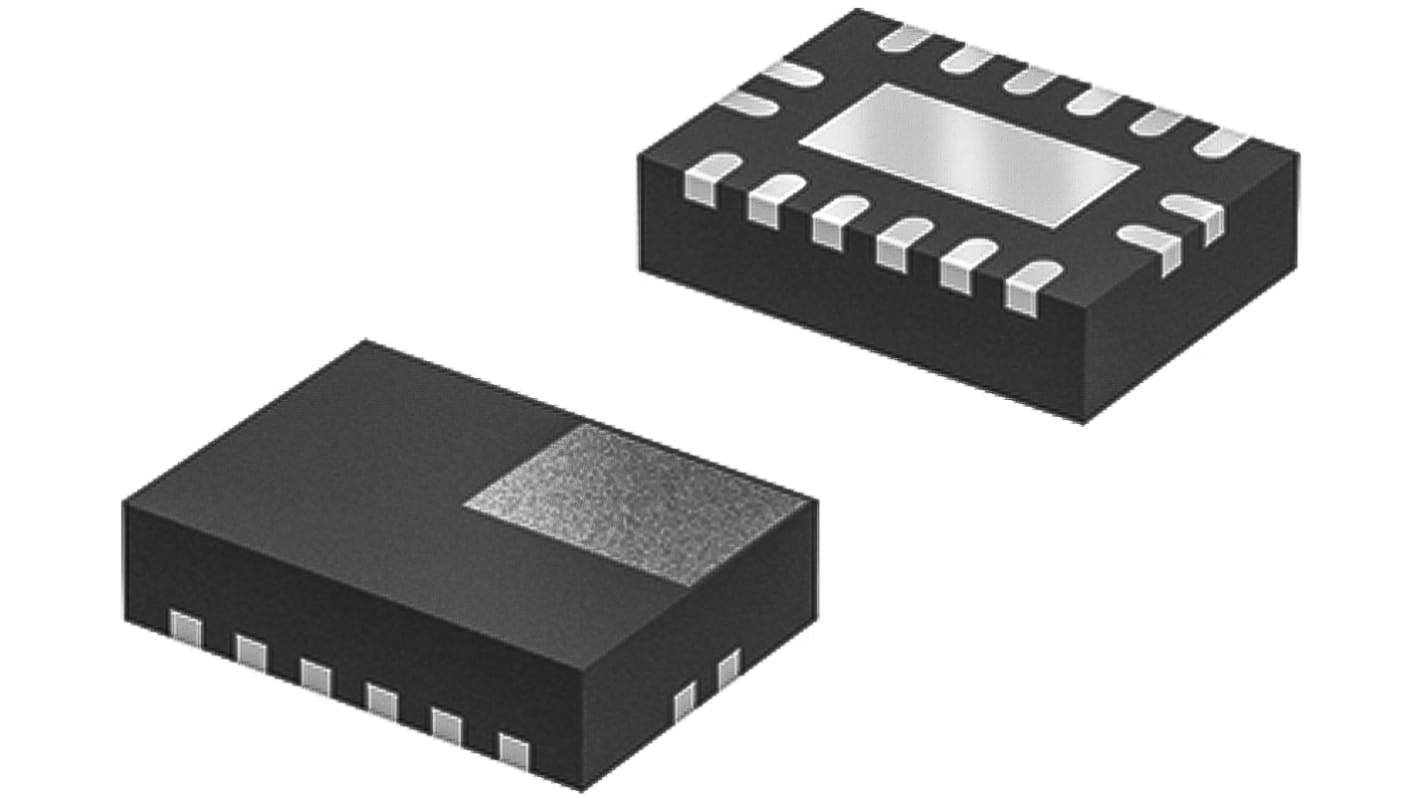

Nexperia 74HC165BQ,115 8-stage Surface Mount Shift Register 74HC, 16-Pin DHVQFN

View all Counter ICs

Subtotal (1 reel of 3000 units)*

£330.00

(exc. VAT)

£390.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship
  • Plus 999,996,000 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.11£330.00

*price indicative

RS Stock No.:
170-4868
Mfr. Part No.:
74HC165BQ,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Package Type

DHVQFN

Logic Function

Shift Register

Number of Stages

8

Logic Family

74HC

Mounting Type

Surface Mount

Operation Mode

Serial, Parallel to Serial

Number of Elements

1

Pin Count

16

Minimum Operating Supply Voltage

2 V

Maximum Operating Supply Voltage

6 V

Dimensions

3.6 x 2.6 x 0.95mm

Minimum Operating Temperature

-40 °C

Triggering Type

Positive Edge

Maximum Operating Temperature

125 °C

Preset Type

Asynchronous

Direction Type

Uni-Directional

Reset Type

Asynchronous

COO (Country of Origin):
TH
The 74HC165: 74HCT165 are high-speed Si-gate CMOS devices. They are pin compatible with Low-power Schottky TTL (LSTTL). The 74HC165: 74HCT165 are 8-bit parallel-load or serial-in shift registers with complementary serial outputs (Q7 and Q7) available from the last stage. When the parallel load (PL) input is LOW, parallel data from the D0 to D7 inputs are loaded into the register asynchronously. When PL is HIGH, data enters the register serially at the DS input and shifts one place to the right (Q0 → Q1 → Q2, etc.) with each positive-going clock transition. This feature allows parallel-to-serial converter expansion by tying the Q7 output to the DS input of the succeeding stage.

Simple control interface
I/O expansion
Asynchronous and synchronous load options
High frequency
Cascadable
LED drivers
Key applications
Displays
Control units
