- RS Stock No.:
- 170-4858
- Mfr. Part No.:
- 74HC4094PW,118
- Brand:
- Nexperia
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (On a Reel of 2500)
£0.162
(exc. VAT)
£0.194
(inc. VAT)
Units | Per unit | Per Reel* |
2500 + | £0.162 | £405.00 |
*price indicative |
- RS Stock No.:
- 170-4858
- Mfr. Part No.:
- 74HC4094PW,118
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
The 74HC4094 74HCT4094 is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs. Both the shift and storage register have separate clocks. The device features a serial input (D) and two serial outputs (QS1 and QS2) to enable cascading. Data is shifted on the LOW-to-HIGH transitions of the CP input. Data is available at QS1 on the LOW-to-HIGH transitions of the CP input to allow cascading when clock edges are fast. The same data is available at QS2 on the next HIGH-to-LOW transition of the CP input to allow cascading when clock edges are slow.
Simple control interface
I/O expansion
Asynchronous and synchronous load options
High frequency
Cascadable
LED drivers
Displays
Control units
I/O expansion
Asynchronous and synchronous load options
High frequency
Cascadable
LED drivers
Displays
Control units
Specifications
Attribute | Value |
---|---|

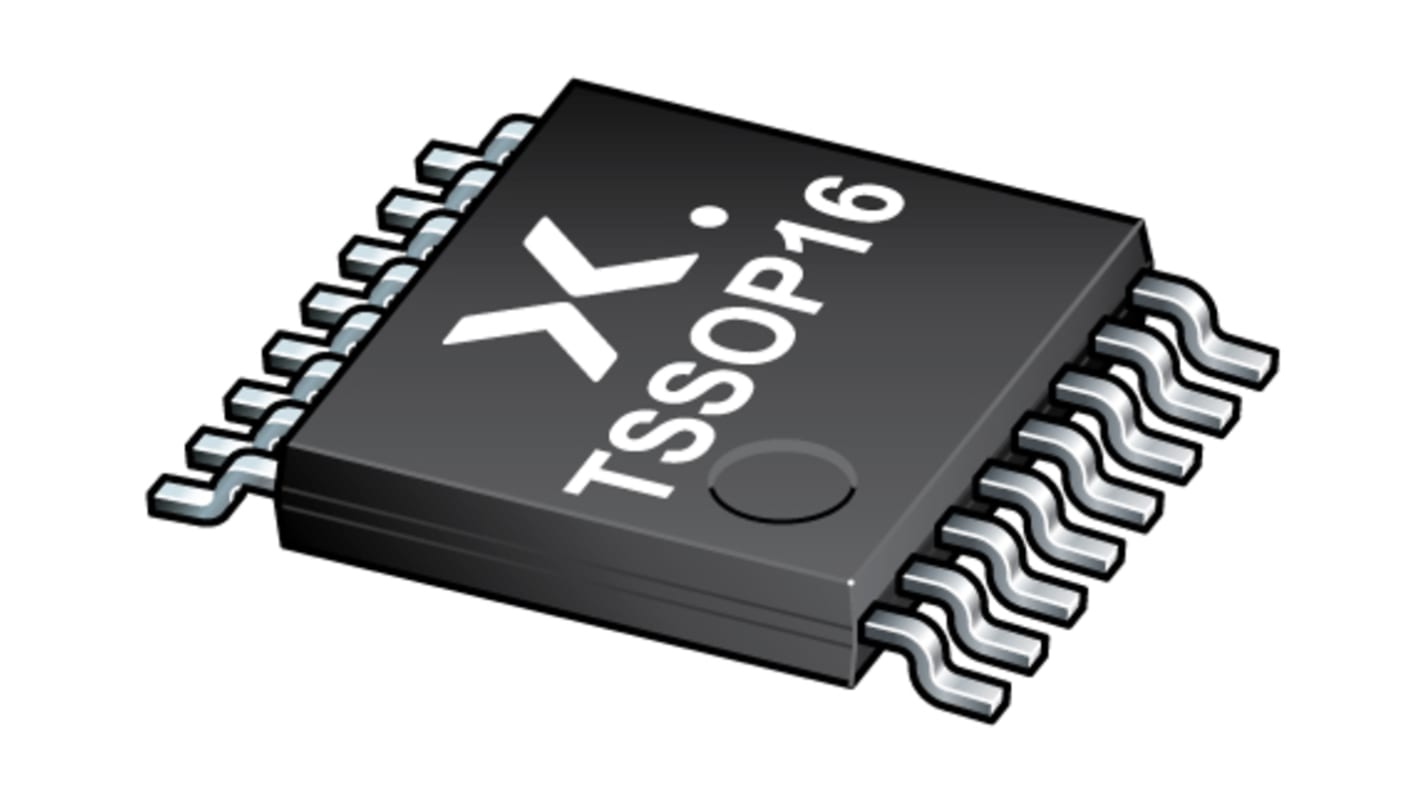

Package Type | TSSOP |
Logic Function | Shift Register |
Number of Stages | 8 |
Logic Family | 74HC |
Mounting Type | Surface Mount |
Operation Mode | Serial to Serial, Parallel |
Number of Elements | 1 |
Pin Count | 16 |
Minimum Operating Supply Voltage | 2 V |
Maximum Operating Supply Voltage | 6 V |
Dimensions | 5.1 x 4.5 x 0.95mm |
Minimum Operating Temperature | -40 °C |
Direction Type | Uni-Directional |
Maximum Operating Temperature | 125 °C |
Triggering Type | Positive Edge |
