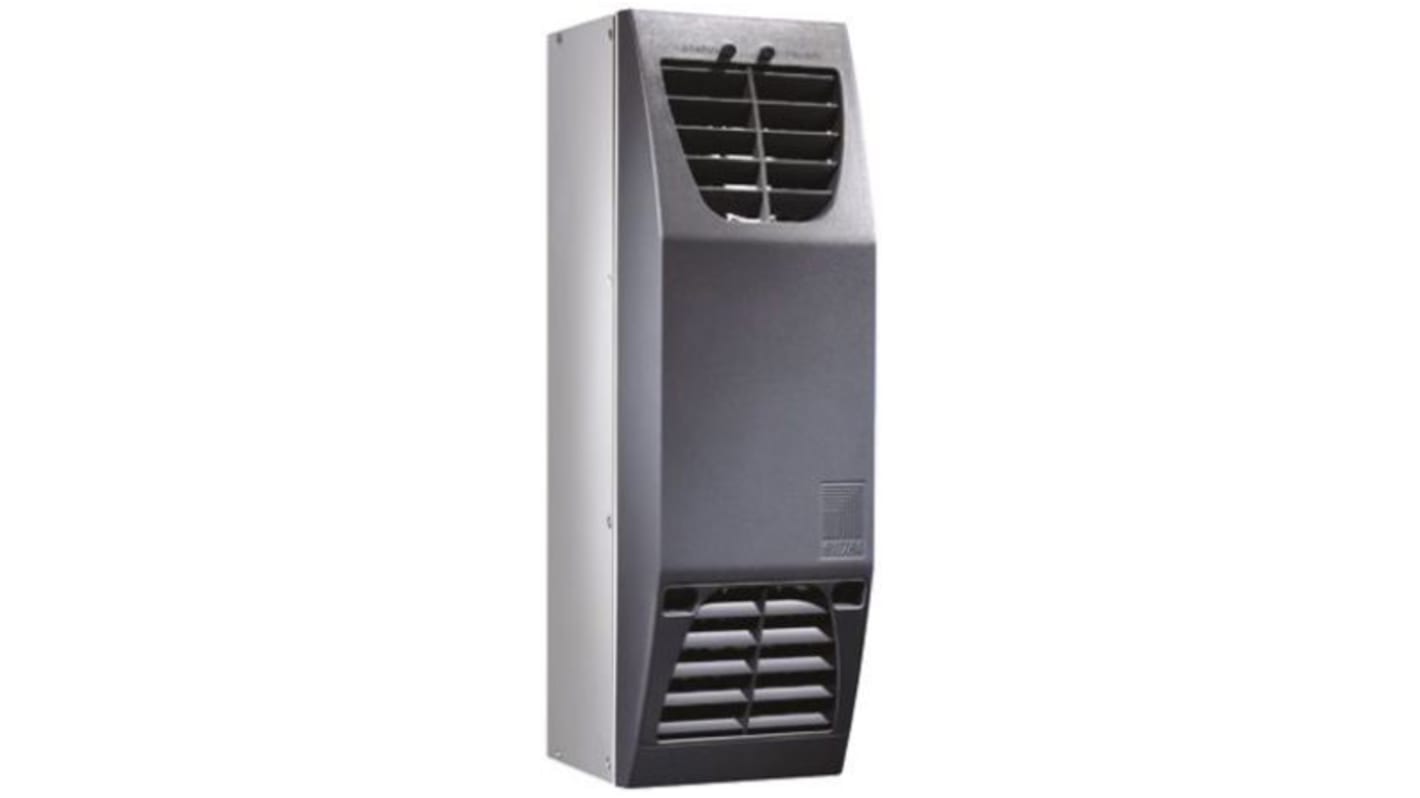

Rittal SK Series Enclosure Cooling Unit, 100W, 100 → 240V ac, 45m³/h, 400 x 125 x 155mm
- RS Stock No.:
- 754-6348
- Mfr. Part No.:
- 3201200
- Brand:
- Rittal
Bulk discount available
Subtotal (1 unit)*
£1,428.69
(exc. VAT)
£1,714.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £1,428.69 |
5 - 9 | £1,361.53 |
10 + | £1,321.53 |
*price indicative
- RS Stock No.:
- 754-6348
- Mfr. Part No.:
- 3201200
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Rittal | |
Maximum Cooling Power | 100W | |
Air Flow | 45m³/h | |
Internal Circuit Air Flow | 45m³/h | |
External Circuit Air Flow | 45m³/h | |
Input Power Rating | 100W | |
Mounting Type | Wall | |
Supply Voltage | 100 → 240V ac | |
Dimensions | 400 x 125 x 155mm | |
Depth | 155mm | |
Height | 400mm | |
Width | 125mm | |
Weight | 3.3kg | |
Series | SK | |
Cooler Type | Thermoelectric Cooler | |
Frequency | 50/60Hz | |
Input Type | Plug-in Terminal Strip | |
Nominal Current | 1.9A | |
Select all | ||
---|---|---|
Brand Rittal | ||
Maximum Cooling Power 100W | ||
Air Flow 45m³/h | ||
Internal Circuit Air Flow 45m³/h | ||
External Circuit Air Flow 45m³/h | ||
Input Power Rating 100W | ||
Mounting Type Wall | ||
Supply Voltage 100 → 240V ac | ||
Dimensions 400 x 125 x 155mm | ||
Depth 155mm | ||
Height 400mm | ||
Width 125mm | ||
Weight 3.3kg | ||
Series SK | ||
Cooler Type Thermoelectric Cooler | ||
Frequency 50/60Hz | ||
Input Type Plug-in Terminal Strip | ||
Nominal Current 1.9A | ||
Thermoelectric air conditioners - Rittal
Efficient Rittal thermoelectric air conditioners with compact designs based on Peltier technology ensure energy-saving cooling of command panels and small enclosures.
Temperature range:
Operating temperature range (environment): -30 °C...+55 °C
Setpoint temperature setting range:
• cooling: +5 °C...+55 °C
• heating: -10 °C...+20 °C
Setpoint temperature setting range:
• cooling: +5 °C...+55 °C
• heating: -10 °C...+20 °C
Composition of the delivery:
• Fully wired ready for connection (plug-in terminal strip)
• Mounting accessories
• Parameterization software
• Mounting accessories
• Parameterization software
Rittal Thermoelectric Air Conditioner, 100W Maximum Thermal Output, 1.9A Current Rating - TopTherm Series - 3201200
Use this air conditioner from Rittal to precisely manage your system's temperature. It features heating and cooling functions, making it a versatile climate control device. The unit provides a maximum thermal output power of up to 100W, so you get efficient cooling for your enclosed components. Its anodised aluminium housing is resistant to corrosion and impact for use in harsh environments.
Features & Benefits
• Air throughput rate of 45m³/h for powerful performance
• Internal circuit has an IP54 rating for protection against limited amounts of dust and water splashes
• Wide operating temperature range between -30°C and +55°C for use in demanding environments
• Internal circuit has an IP54 rating for protection against limited amounts of dust and water splashes
• Wide operating temperature range between -30°C and +55°C for use in demanding environments
Applications
• Control devices
• Data centres
• IT industry
• Data centres
• IT industry
Do I need to wire this air conditioner prior to use?
No, this air conditioner arrives pre-wired and ready to plug in for immediate use.
