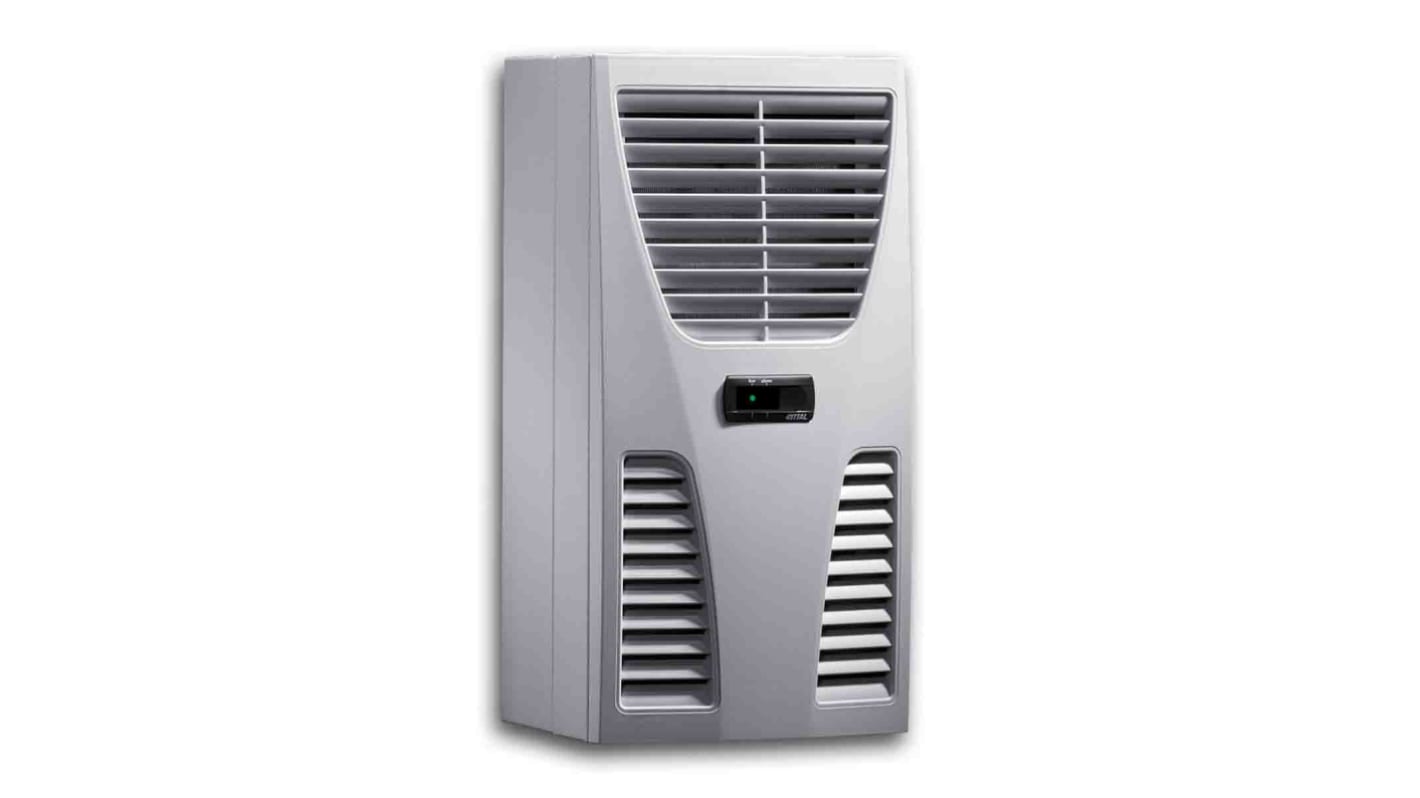

Rittal TopTherm Series Enclosure Cooling Unit, 360W, 310 m³/h 230V ac 550 mm 280mm 140 mm
- RS Stock No.:
- 471-6917
- Mfr. Part No.:
- 3302100
- Brand:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1,378.67
(exc. VAT)
£1,654.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3 unit(s) shipping from 14 August 2026
- Plus 2 unit(s) shipping from 21 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £1,378.67 |
| 2 - 4 | £1,313.87 |
| 5 + | £1,275.27 |
*price indicative
- RS Stock No.:
- 471-6917
- Mfr. Part No.:
- 3302100
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 360W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 310m³/h | |
| Input Power | 270W | |
| Mount Type | Wall | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 0.33kW | |
| IP Rating | IP34, IP54 | |
| Maximum Supply Voltage | 230V ac | |
| Material | Sheet Steel | |
| Maximum Temperature Setting | 50°C | |
| Min Temperature Setting | 30°C | |
| Certification | UL | |
| Type of installation | Wall-Mounted | |
| Width | 280mm | |
| Series | TopTherm | |
| Weight | 13kg | |
| Height | 550mm | |
| Standards/Approvals | RoHS | |
| Depth | 140mm | |
| Cooler Type | Air Conditioner | |
| Nominal Current | 1.6A | |
| Frequency | 60Hz | |
| Refrigerant Type | R134A | |
| Cooling Capacity | 0.31kW | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 360W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 310m³/h | ||
Input Power 270W | ||
Mount Type Wall | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 0.33kW | ||
IP Rating IP34, IP54 | ||
Maximum Supply Voltage 230V ac | ||
Material Sheet Steel | ||
Maximum Temperature Setting 50°C | ||
Min Temperature Setting 30°C | ||
Certification UL | ||
Type of installation Wall-Mounted | ||
Width 280mm | ||
Series TopTherm | ||
Weight 13kg | ||
Height 550mm | ||
Standards/Approvals RoHS | ||
Depth 140mm | ||
Cooler Type Air Conditioner | ||
Nominal Current 1.6A | ||
Frequency 60Hz | ||
Refrigerant Type R134A | ||
Cooling Capacity 0.31kW | ||
Rittal Air Conditioning Unit, 360W, 310m³/h - TopTherm Series - 3302100
Use this powerful air conditioning unit from Rittal to cool your panel enclosures. For enhanced long-term performance, it has nano-coated condensers that prevent corrosion and reduce dirt buildup. This air conditioning unit has a housing made of sheet steel that has excellent durability and impact resistance, so it's built to last and suitable for installation in busy work environments. A large space between the warm air inlet and the cold air outlet allows air to be circulated evenly, even when there's a lot of equipment in the enclosure.
Features & Benefits
• Compact dimensions of 550 (height) x 280 (width) x 140mm (depth) for use in tight spaces
• Comes fully wired with a plug-in terminal strip connection to save time and effort
• Miniature circuit breaker and fuse for enhanced electrical safety
• Wide operating temperature range of +10°C to +55°C for use in a variety of environments
Applications
• Electrical control panels
• Network switches
How do I maintain this unit?
This air conditioning unit is easy to maintain by simply changing your air filter once a month. It's also important to check the condensation drains for clogging.
