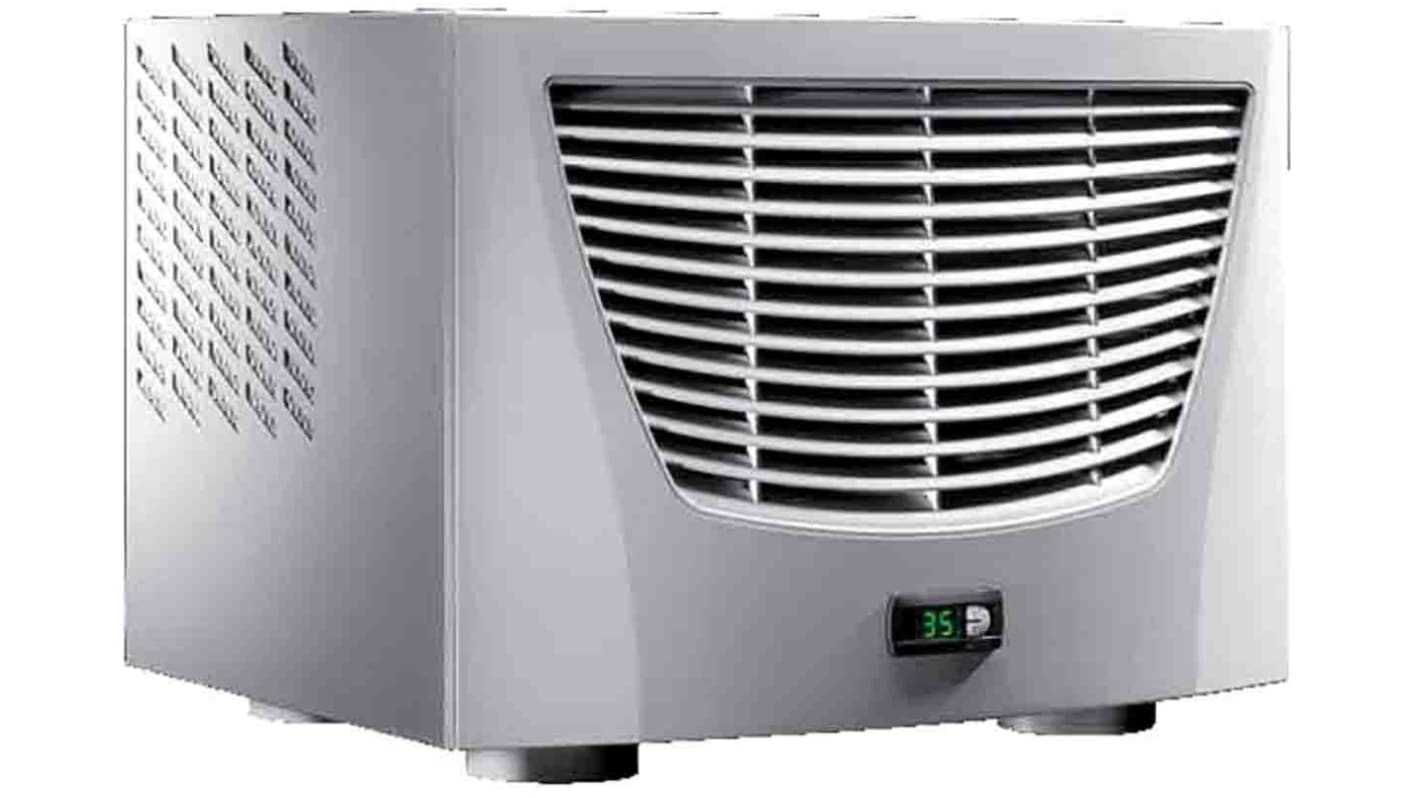

Rittal TopTherm Series Enclosure Cooling Unit, 3800W, 3870 m³/h 400V ac 470 mm 796mm 580 mm
- RS Stock No.:
- 224-0091
- Mfr. Part No.:
- 3387640
- Brand:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£4,625.44
(exc. VAT)
£5,550.53
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4,625.44 |
| 5 - 9 | £4,486.67 |
| 10 + | £4,357.16 |
*price indicative
- RS Stock No.:
- 224-0091
- Mfr. Part No.:
- 3387640
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 3800W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 3870m³/h | |
| Input Power | 1.59kW | |
| Mount Type | Roof | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 2310W | |
| Maximum Supply Voltage | 400V ac | |
| IP Rating | IP54, IP34 | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Type of installation | Roof Mount | |
| Certification | CSA, UL, cUL, cUr, FTTA uR | |
| Material | Stainless Steel | |
| Height | 470mm | |
| Width | 796mm | |
| Depth | 580mm | |
| Series | TopTherm | |
| Weight | 77kg | |
| Standards/Approvals | CSA UL+C-UL-FTTA UR+C-UR | |
| Cooler Type | Roof Connected | |
| Cooling Capacity | 4kW | |
| Refrigerant Type | R134A | |
| Frequency | 60Hz | |
| Nominal Current | 3.9A | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 3800W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 3870m³/h | ||
Input Power 1.59kW | ||
Mount Type Roof | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 2310W | ||
Maximum Supply Voltage 400V ac | ||
IP Rating IP54, IP34 | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Type of installation Roof Mount | ||
Certification CSA, UL, cUL, cUr, FTTA uR | ||
Material Stainless Steel | ||
Height 470mm | ||
Width 796mm | ||
Depth 580mm | ||
Series TopTherm | ||
Weight 77kg | ||
Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR | ||
Cooler Type Roof Connected | ||
Cooling Capacity 4kW | ||
Refrigerant Type R134A | ||
Frequency 60Hz | ||
Nominal Current 3.9A | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 3.8 kW with 3.9 A rated current and the material used is the stainless steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
