Rittal TopTherm Series, 800 m³/h Enclosure Cooling Unit, 770W 400V ac 417 mm 597mm 380 mm
- RS Stock No.:
- 224-0046
- Mfr. Part No.:
- 3359540
- Brand:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£2,229.93
(exc. VAT)
£2,675.92
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £2,229.93 |
| 5 - 9 | £2,163.03 |
| 10 + | £2,100.60 |
*price indicative
- RS Stock No.:
- 224-0046
- Mfr. Part No.:
- 3359540
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 770W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 800m³/h | |
| Mount Type | Roof | |
| Input Power | 330W | |
| Connection Type | Plug-In Terminal Strip | |
| IP Rating | IP54, IP34 | |
| Maximum Supply Voltage | 400V ac | |
| Certification | UL, uR, FTTA, cUL, cUr | |
| Material | Sheet Steel | |
| Type of installation | Roof Mount | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Series | TopTherm | |
| Width | 597mm | |
| Standards/Approvals | EAC | |
| Depth | 380mm | |
| Height | 417mm | |
| Weight | 37kg | |
| Cooler Type | Roof Connected | |
| Frequency | 60Hz | |
| Nominal Current | 2.1A | |
| Cooling Capacity | 4kW | |
| Refrigerant Type | R134A | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 770W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 800m³/h | ||
Mount Type Roof | ||
Input Power 330W | ||
Connection Type Plug-In Terminal Strip | ||
IP Rating IP54, IP34 | ||
Maximum Supply Voltage 400V ac | ||
Certification UL, uR, FTTA, cUL, cUr | ||
Material Sheet Steel | ||
Type of installation Roof Mount | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Series TopTherm | ||
Width 597mm | ||
Standards/Approvals EAC | ||
Depth 380mm | ||
Height 417mm | ||
Weight 37kg | ||
Cooler Type Roof Connected | ||
Frequency 60Hz | ||
Nominal Current 2.1A | ||
Cooling Capacity 4kW | ||
Refrigerant Type R134A | ||

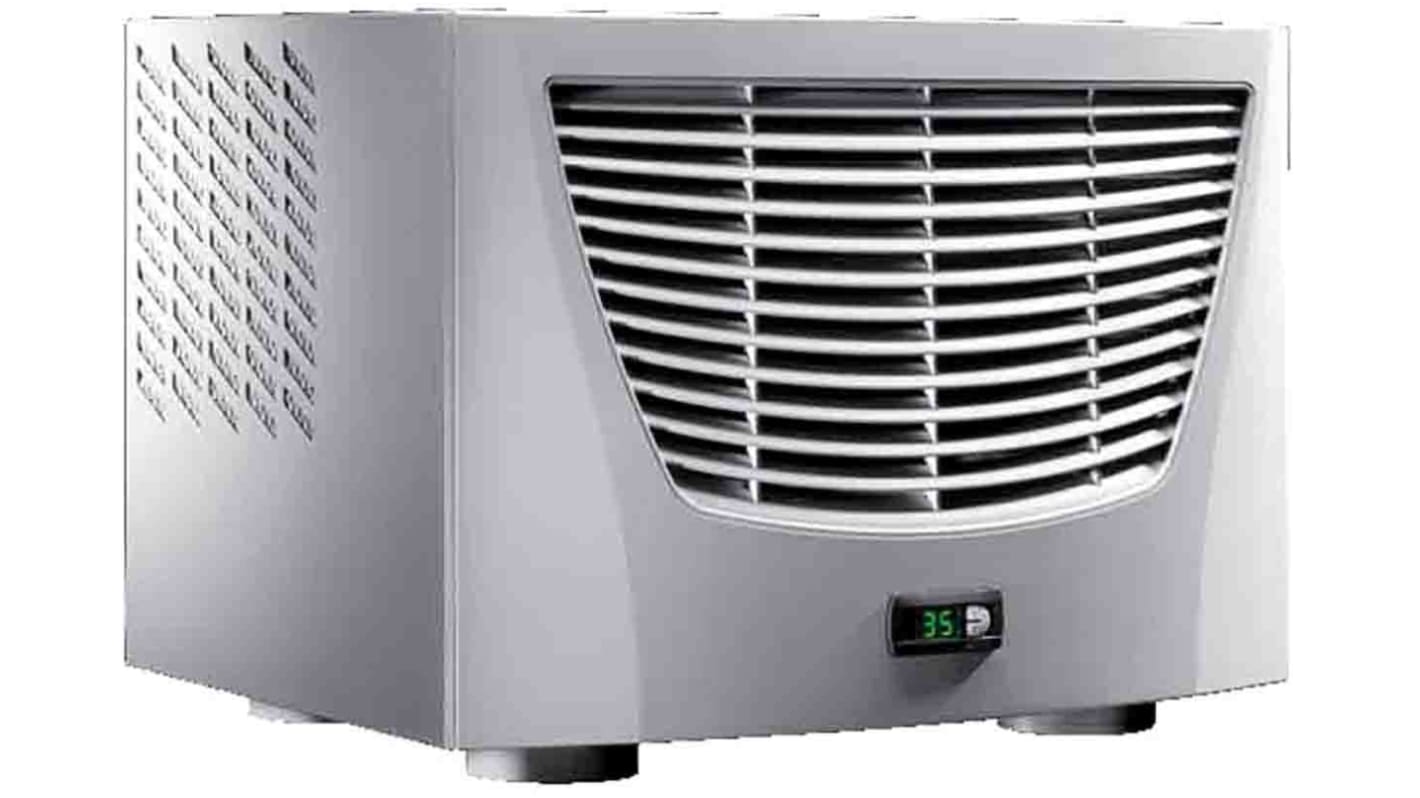

The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 0.77 kW with 1.6 A rated current and the material used is the sheet steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
