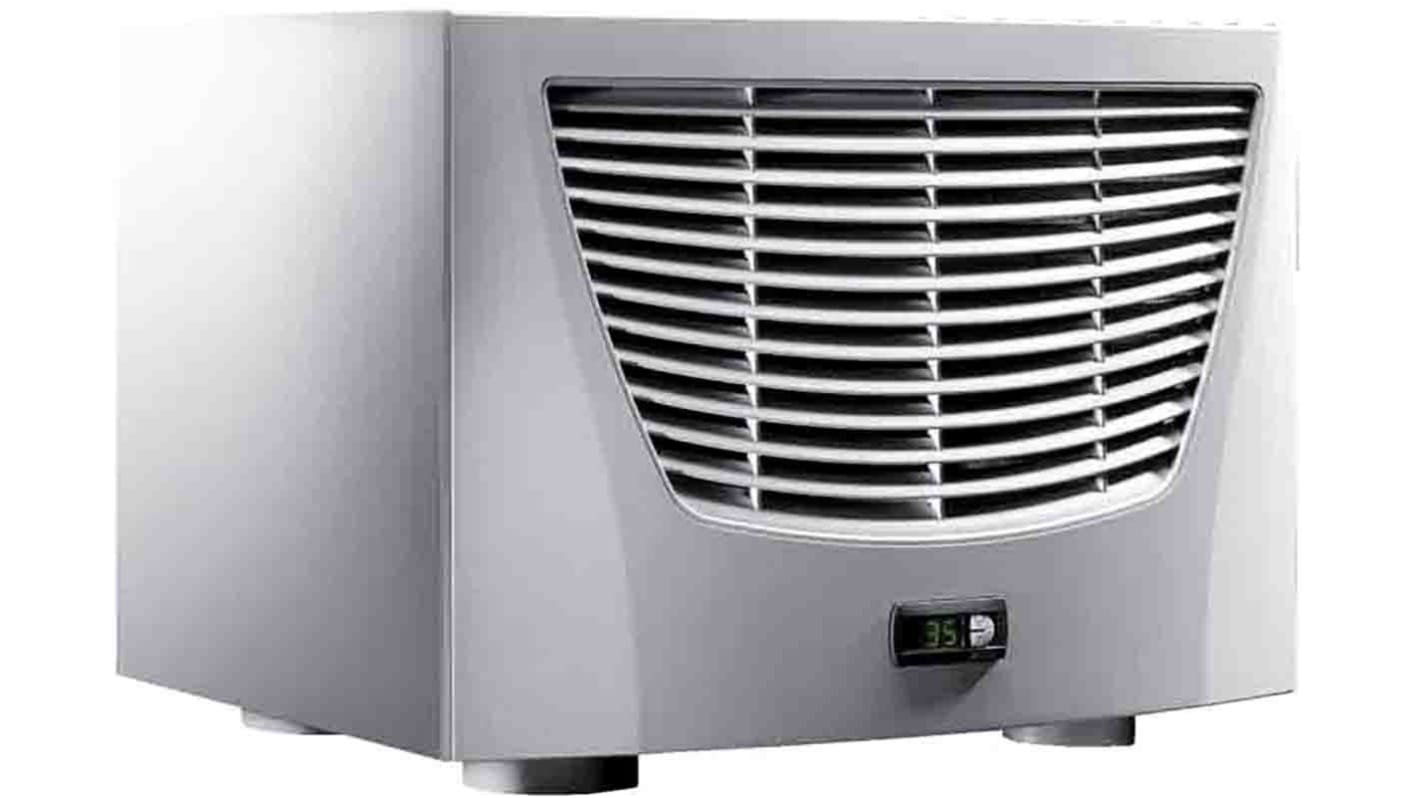

Rittal SK 3209.500 Series, 925 m³/h Enclosure Cooling Unit, 2500W 230V ac 417 mm 597mm 475 mm
- RS Stock No.:
- 223-9948
- Mfr. Part No.:
- 3209500
- Brand:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1,427.99
(exc. VAT)
£1,713.59
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £1,427.99 |
| 5 - 9 | £1,385.15 |
| 10 + | £1,345.17 |
*price indicative
- RS Stock No.:
- 223-9948
- Mfr. Part No.:
- 3209500
- Brand:
- Rittal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 2500W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 925m³/h | |
| Input Power | 95W | |
| Mount Type | Roof | |
| Connection Type | Plug-In Terminal Strip | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP65, IP55 | |
| Certification | CSA, EAC, Declaration of Conformity, cUr, uR | |
| Min Temperature Setting | 1°C | |
| Type of installation | Roof Mount | |
| Material | Copper, Brass (Cu/Cuzn) | |
| Height | 417mm | |
| Series | SK 3209.500 | |
| Width | 597mm | |
| Weight | 23.5kg | |
| Depth | 475mm | |
| Standards/Approvals | EAC, Declaration, CSA UR+C-UR | |
| Frequency | 60Hz | |
| Nominal Current | 0.4A | |
| Refrigerant Type | Water | |
| Cooling Capacity | 2.5kW | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 2500W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 925m³/h | ||
Input Power 95W | ||
Mount Type Roof | ||
Connection Type Plug-In Terminal Strip | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP65, IP55 | ||
Certification CSA, EAC, Declaration of Conformity, cUr, uR | ||
Min Temperature Setting 1°C | ||
Type of installation Roof Mount | ||
Material Copper, Brass (Cu/Cuzn) | ||
Height 417mm | ||
Series SK 3209.500 | ||
Width 597mm | ||
Weight 23.5kg | ||
Depth 475mm | ||
Standards/Approvals EAC, Declaration, CSA UR+C-UR | ||
Frequency 60Hz | ||
Nominal Current 0.4A | ||
Refrigerant Type Water | ||
Cooling Capacity 2.5kW | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the roof-mounted air/water heat exchanger for use in harsh environments and temperature ranges up to +70 °C. The air/water heat exchanger is assembled on the roof of the enclosure using flexible water connection options. The total cooling output of the heat exchanger is 2.5 kW.
IP degree of protection is IP55
Colour is RAL 7035
Operation temperature is +1 °C to 70 °C
