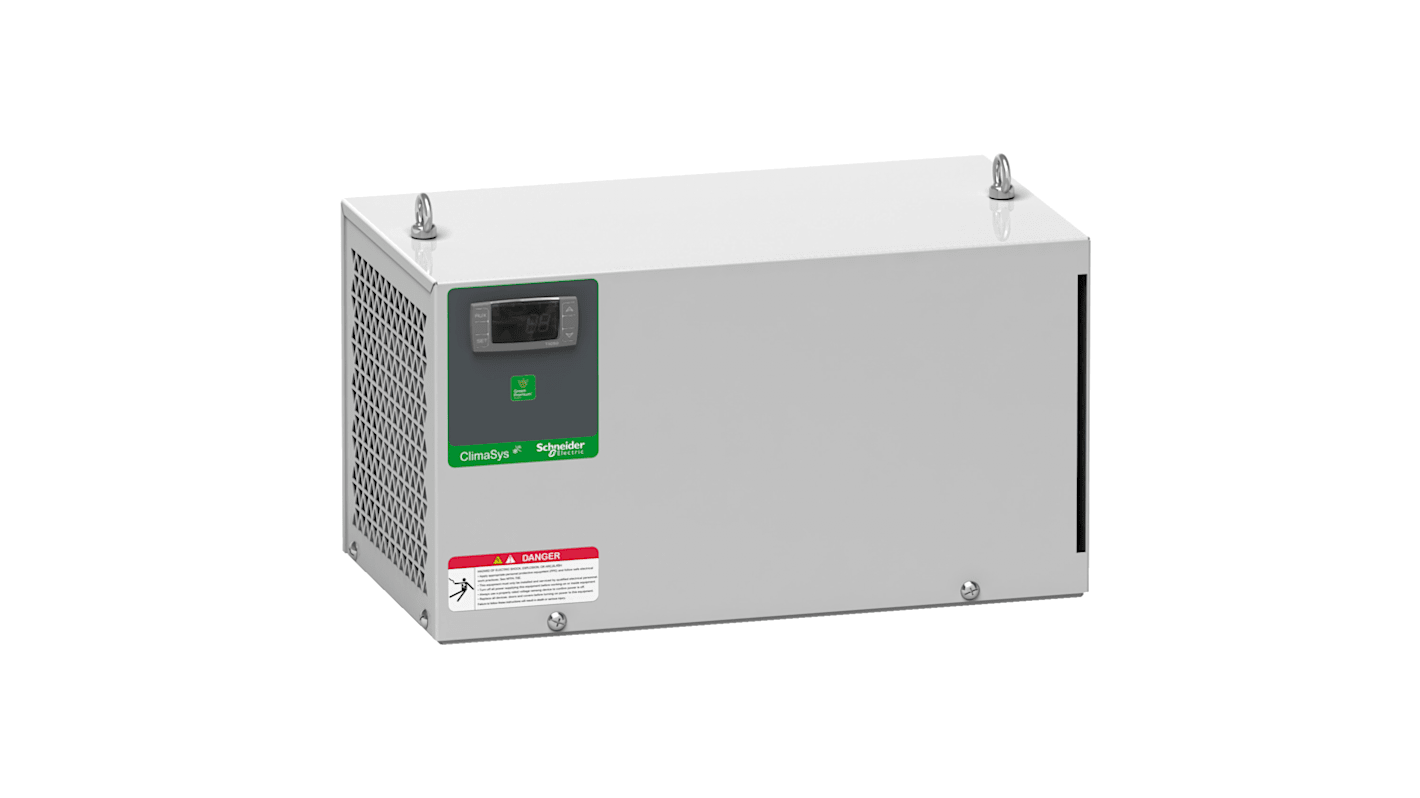

Schneider Electric ClimaSys Series Enclosure Cooling Unit, 240W 230V ac 264 mm 486mm 259 mm
- RS Stock No.:
- 211-2771
- Mfr. Part No.:
- NSYCUX400R
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£2,697.94
(exc. VAT)
£3,237.53
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,697.94 |
*price indicative
- RS Stock No.:
- 211-2771
- Mfr. Part No.:
- NSYCUX400R
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Cooling Power | 240W | |
| Product Type | Enclosure Cooling Unit | |
| Noise Level | 65dB | |
| Input Power | 230W | |
| Mount Type | Roof | |
| Power Consumption | 290W | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP34, IP54 | |
| Type of installation | Indoor | |
| Material | Stainless Steel | |
| Certification | CE | |
| Maximum Temperature Setting | 50°C | |
| Min Temperature Setting | 20°C | |
| Height | 264mm | |
| Series | ClimaSys | |
| Depth | 259mm | |
| Width | 486mm | |
| Standards/Approvals | EN 60335-1, EN/ISO 12100, EN 60335-2-40, EN 60204-1, EN 378 | |
| Weight | 18kg | |
| Cooling Capacity | 410W | |
| Nominal Current | 1.5A | |
| Frequency | 60Hz | |
| Refrigerant Type | R134A (0.17 Kg) | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Cooling Power 240W | ||
Product Type Enclosure Cooling Unit | ||
Noise Level 65dB | ||
Input Power 230W | ||
Mount Type Roof | ||
Power Consumption 290W | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP34, IP54 | ||
Type of installation Indoor | ||
Material Stainless Steel | ||
Certification CE | ||
Maximum Temperature Setting 50°C | ||
Min Temperature Setting 20°C | ||
Height 264mm | ||
Series ClimaSys | ||
Depth 259mm | ||
Width 486mm | ||
Standards/Approvals EN 60335-1, EN/ISO 12100, EN 60335-2-40, EN 60204-1, EN 378 | ||
Weight 18kg | ||
Cooling Capacity 410W | ||
Nominal Current 1.5A | ||
Frequency 60Hz | ||
Refrigerant Type R134A (0.17 Kg) | ||
- COO (Country of Origin):
- IT
The Schneider Electric ClimaSys CU range are cooling units for harsh environments, where ambient temperatures can reach up to 55°C. The unit’s integrated alarm system will signal you in the event of any operational anomaly. An internal grid of a new design protects the components and personnel during operation of the equipment while at the same time facilitating cleaning and maintenance. The cooling units has three models of mounting which are roof model, floor model and side model.
Several mounting solutions
Enhanced protection
Precision of temperature control
Simplicity
UL, CE, EAC Certified
