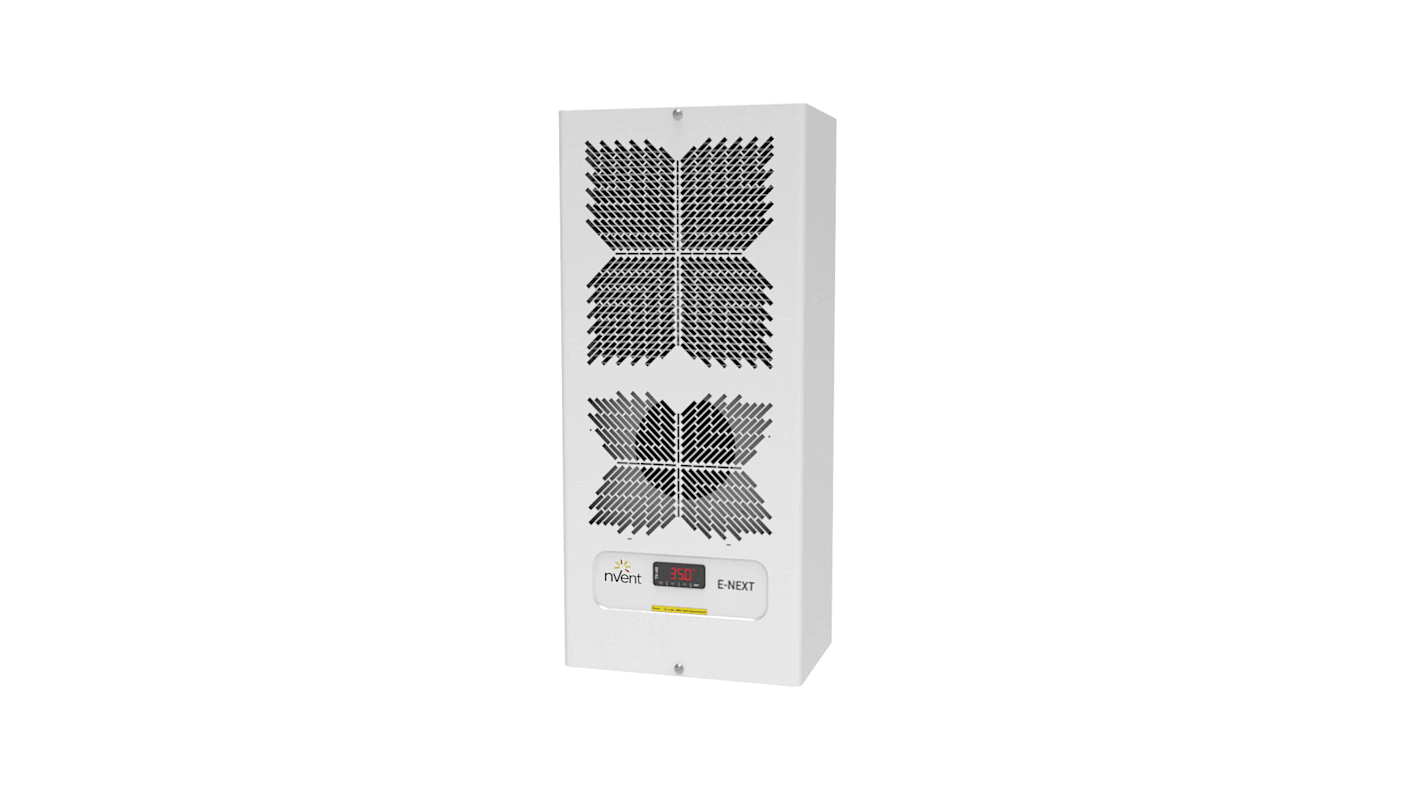

nVent HOFFMAN NXT10 Series Air Conditioning Unit, 540 m³/h 230V 783 mm 348mm 220 mm
- RS Stock No.:
- 171-447
- Mfr. Part No.:
- NXT10B0E1U00000
- Brand:
- nVent HOFFMAN
Subtotal (1 unit)*
£1,604.89
(exc. VAT)
£1,925.87
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,604.89 |
*price indicative
- RS Stock No.:
- 171-447
- Mfr. Part No.:
- NXT10B0E1U00000
- Brand:
- nVent HOFFMAN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| Product Type | Air Conditioning Unit | |
| Air Flow | 540m³/h | |
| Noise Level | 65dB | |
| Mount Type | Vertical | |
| Connection Type | 4 Pin | |
| Power Consumption | 500W | |
| IP Rating | IP55 | |
| Maximum Supply Voltage | 230V | |
| Certification | CE, UKCA, UL | |
| Min Temperature Setting | 20°C | |
| Type of installation | Vertical Mount | |
| Material | Galvanised Steel | |
| Maximum Temperature Setting | 55°C | |
| Height | 783mm | |
| Depth | 220mm | |
| Weight | 27kg | |
| Standards/Approvals | UKCA, UL Listed, CE | |
| Series | NXT10 | |
| Width | 348mm | |
| Cooler Type | Vertical Cooling Unit | |
| Frequency | 60Hz | |
| Nominal Current | 4.8A | |
| Cooling Capacity | 760W | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
Product Type Air Conditioning Unit | ||
Air Flow 540m³/h | ||
Noise Level 65dB | ||
Mount Type Vertical | ||
Connection Type 4 Pin | ||
Power Consumption 500W | ||
IP Rating IP55 | ||
Maximum Supply Voltage 230V | ||
Certification CE, UKCA, UL | ||
Min Temperature Setting 20°C | ||
Type of installation Vertical Mount | ||
Material Galvanised Steel | ||
Maximum Temperature Setting 55°C | ||
Height 783mm | ||
Depth 220mm | ||
Weight 27kg | ||
Standards/Approvals UKCA, UL Listed, CE | ||
Series NXT10 | ||
Width 348mm | ||
Cooler Type Vertical Cooling Unit | ||
Frequency 60Hz | ||
Nominal Current 4.8A | ||
Cooling Capacity 760W | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
The nVent Hoffman Cooling Unit features an IP55 NEMA type 12 protection degree, ensuring durability in various environments. It operates effectively within temperature limits of +20°C to +45°C and has a nominal voltage of 230 V. This makes it a reliable choice for maintaining optimal conditions in diverse applications.
Galvanized steel construction
Temperature limits outside is +20°C to +55°C
