nVent HOFFMAN DEK20 Series Air Conditioning Unit, 1050 m³/h 400V 415 mm 401mm 572 mm
- RS Stock No.:
- 171-417
- Mfr. Part No.:
- DEK20LT09
- Brand:
- nVent HOFFMAN
Subtotal (1 unit)*
£3,514.15
(exc. VAT)
£4,216.98
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,514.15 |
*price indicative
- RS Stock No.:
- 171-417
- Mfr. Part No.:
- DEK20LT09
- Brand:
- nVent HOFFMAN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent HOFFMAN | |
| Product Type | Air Conditioning Unit | |
| Air Flow | 1050m³/h | |
| Noise Level | 65dB | |
| Mount Type | Roof | |
| Power Consumption | 990W | |
| Maximum Supply Voltage | 400V | |
| IP Rating | IP54 | |
| Type of installation | Roof | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 50°C | |
| Certification | CE | |
| Material | Stainless Steel | |
| Series | DEK20 | |
| Weight | 52kg | |
| Height | 415mm | |
| Depth | 572mm | |
| Width | 401mm | |
| Standards/Approvals | UL, CE | |
| Cooler Type | Roof Connected | |
| Nominal Current | 1.9A | |
| Cooling Capacity | 1560W | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand nVent HOFFMAN | ||
Product Type Air Conditioning Unit | ||
Air Flow 1050m³/h | ||
Noise Level 65dB | ||
Mount Type Roof | ||
Power Consumption 990W | ||
Maximum Supply Voltage 400V | ||
IP Rating IP54 | ||
Type of installation Roof | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 50°C | ||
Certification CE | ||
Material Stainless Steel | ||
Series DEK20 | ||
Weight 52kg | ||
Height 415mm | ||
Depth 572mm | ||
Width 401mm | ||
Standards/Approvals UL, CE | ||
Cooler Type Roof Connected | ||
Nominal Current 1.9A | ||
Cooling Capacity 1560W | ||
Frequency 60Hz | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

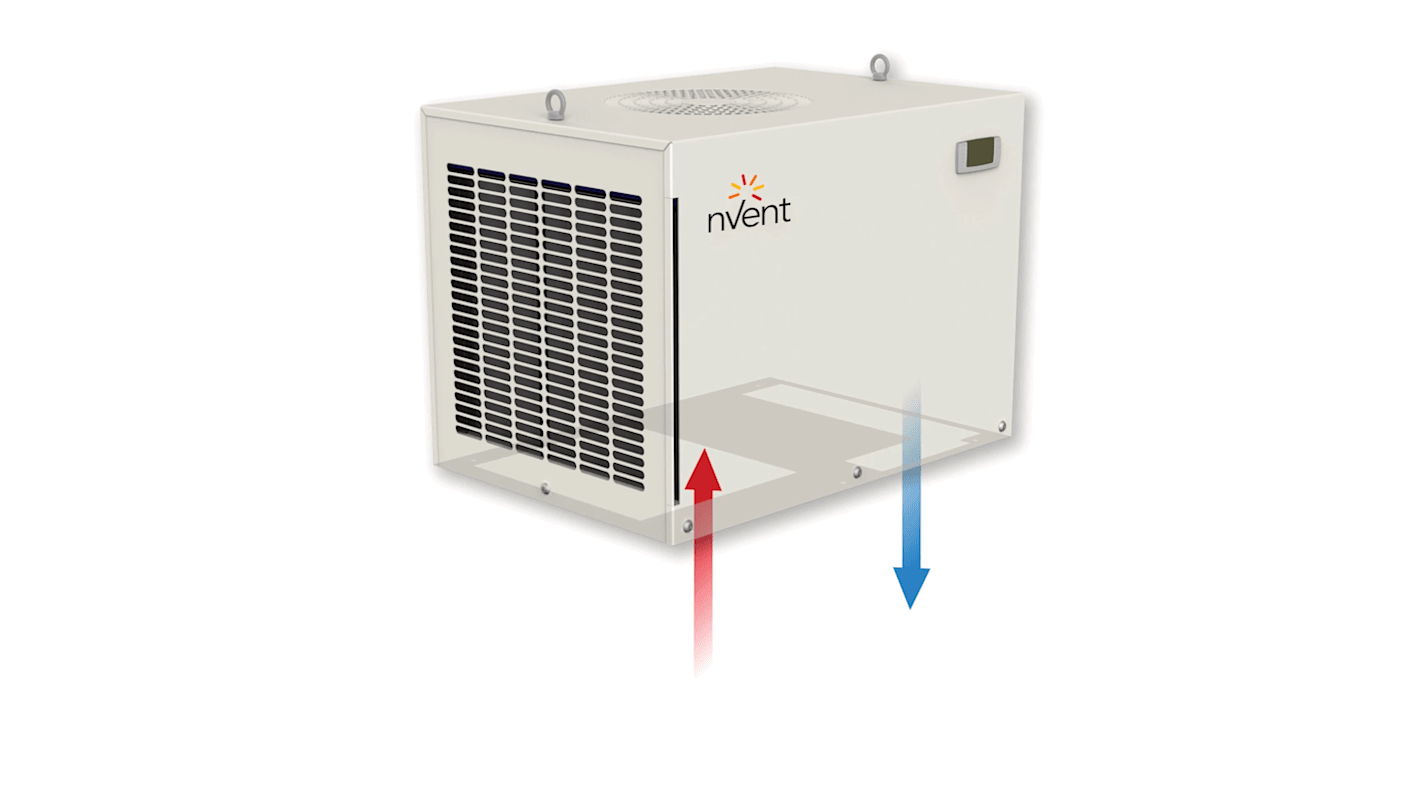

The nVent Hoffman Roof Cooling Unit offers an IP54 protection degree and is designed to provide efficient cooling for either a single enclosure or an entire assembly, based on cooling needs and energy consumption preferences. Installed on top of the enclosure, it is an ideal solution for situations where door or side panel space is limited.
Temperature limits outside is +20°C to +50°C
Stainless steel construction
