Alpha Wire Alpha Essentials Control Cable, 7 Cores, 0.35 mm², Screened, 30m, Grey PVC Sheath, 22 AWG
- RS Stock No.:
- 828-2512
- Mfr. Part No.:
- 6343 SL005
- Brand:
- Alpha Wire
9 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Price 1 Reel of 30 Metre(s)
£153.58
(exc. VAT)
£184.30
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £153.58 | £5.119 |
| 5 - 9 | £147.89 | £4.93 |
| 10 + | £142.06 | £4.735 |
| *price indicative | ||
- RS Stock No.:
- 828-2512
- Mfr. Part No.:
- 6343 SL005
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
Product Details

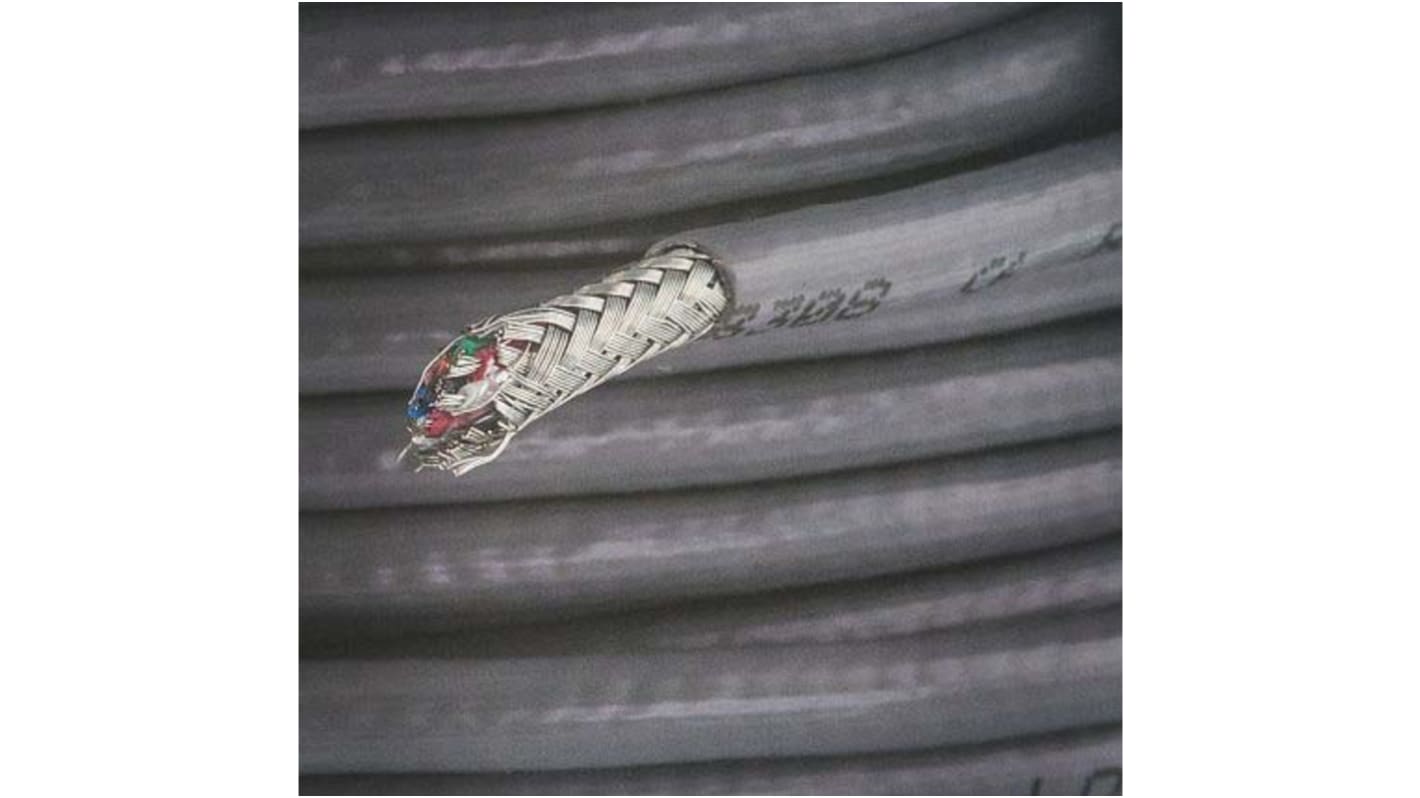

300 V Foil/Braid Multiconductor Cable
The foil/braid multiconductor cable is an excellent choice for high EMI levels.
Standards
UL AWM 2464 VW-1, UK CM, CSA CMG FT4
Specifications
Attribute | Value |
|---|---|
| Series | Alpha Essentials |
| Number of Cores | 7 |
| Cross Sectional Area | 0.35 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 6.12mm |
| Sheath Material | PVC |
| Standards Met | CE, CSA, UL |
| Minimum Operating Temperature | -20°C |
| Insulation Material | PVC |
| Conductor Resistance | 16.4 Ω/1000ft |
| Screen Type | Braid, Foil |
| Drain Wire | Yes |
| Voltage Rating | 300 V |
| Conductor Material | Tinned Copper |
| Minimum Bend Radius | 10 x Diameter |
| Maximum Operating Temperature | +80°C |
| Core Strands | 7/0.25 mm |
