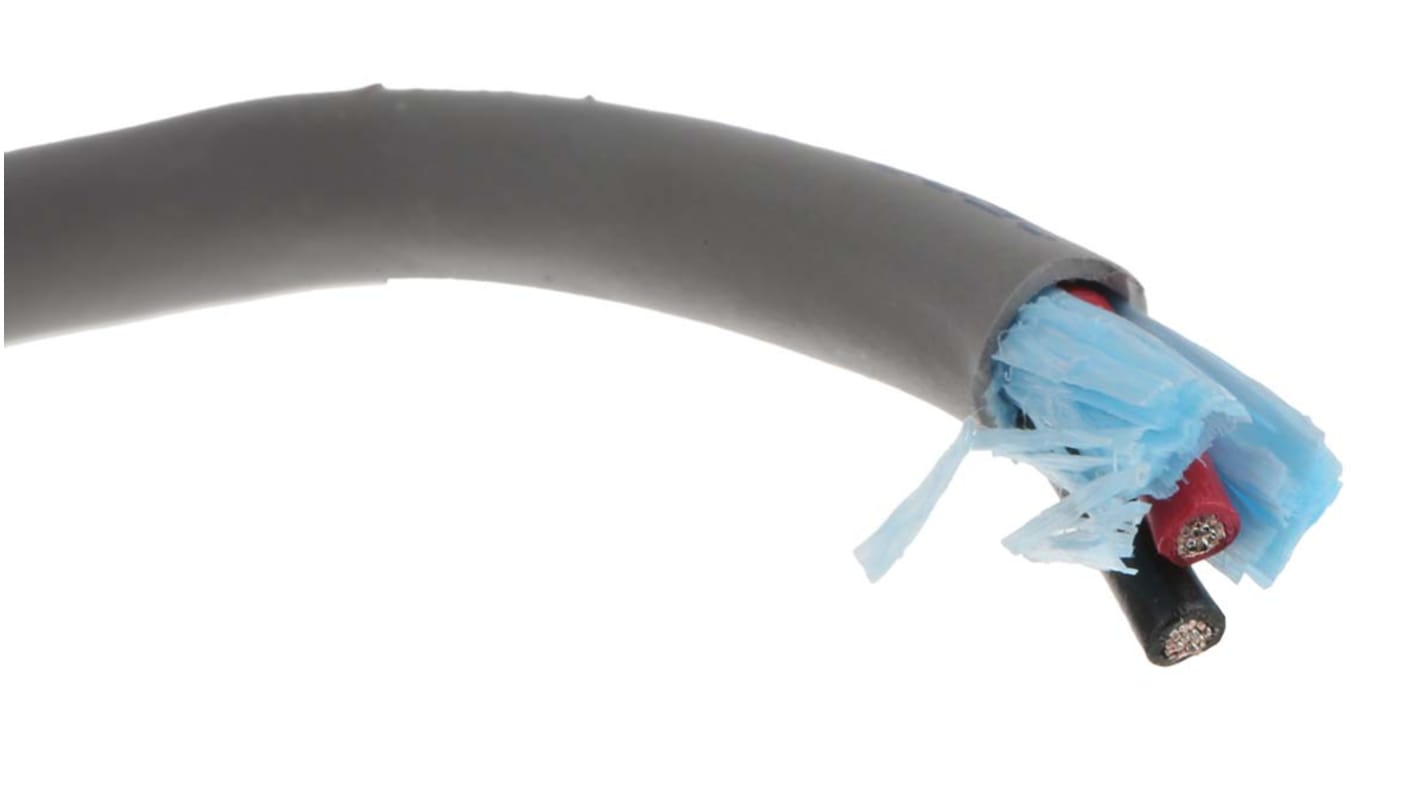

Alpha Wire Alpha Essentials Communication & Control Multicore Industrial Cable, 2 Cores, 1.32 mm², Unscreened, 30m,
- RS Stock No.:
- 828-2386
- Mfr. Part No.:
- 1899C SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£65.76
(exc. VAT)
£78.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 238 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £65.76 | £2.192 |
*price indicative
- RS Stock No.:
- 828-2386
- Mfr. Part No.:
- 1899C SL005
- Brand:
- Alpha Wire
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Series | Alpha Essentials Communication & Control | |
Number of Cores | 2 | |
Cross Sectional Area | 1.32 mm² | |
American Wire Gauge | 16 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screen Type | Unscreened | |
Screened/Unscreened | Unscreened | |
Outer Diameter | 5.64mm | |
Minimum Bend Radius | 10 x Diameter | |
Length | 30m | |
Voltage Rating | 300 V | |
Standards Met | CE, CSA, UL | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Core Strands | 19/0.29 mm | |
Insulation Material | PVC | |
Drain Wire | No | |
Conductor Resistance | 4.3 Ω/1000ft | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 2 | ||
Cross Sectional Area 1.32 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Outer Diameter 5.64mm | ||
Minimum Bend Radius 10 x Diameter | ||
Length 30m | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Core Strands 19/0.29 mm | ||
Insulation Material PVC | ||
Drain Wire No | ||
Conductor Resistance 4.3 Ω/1000ft | ||
