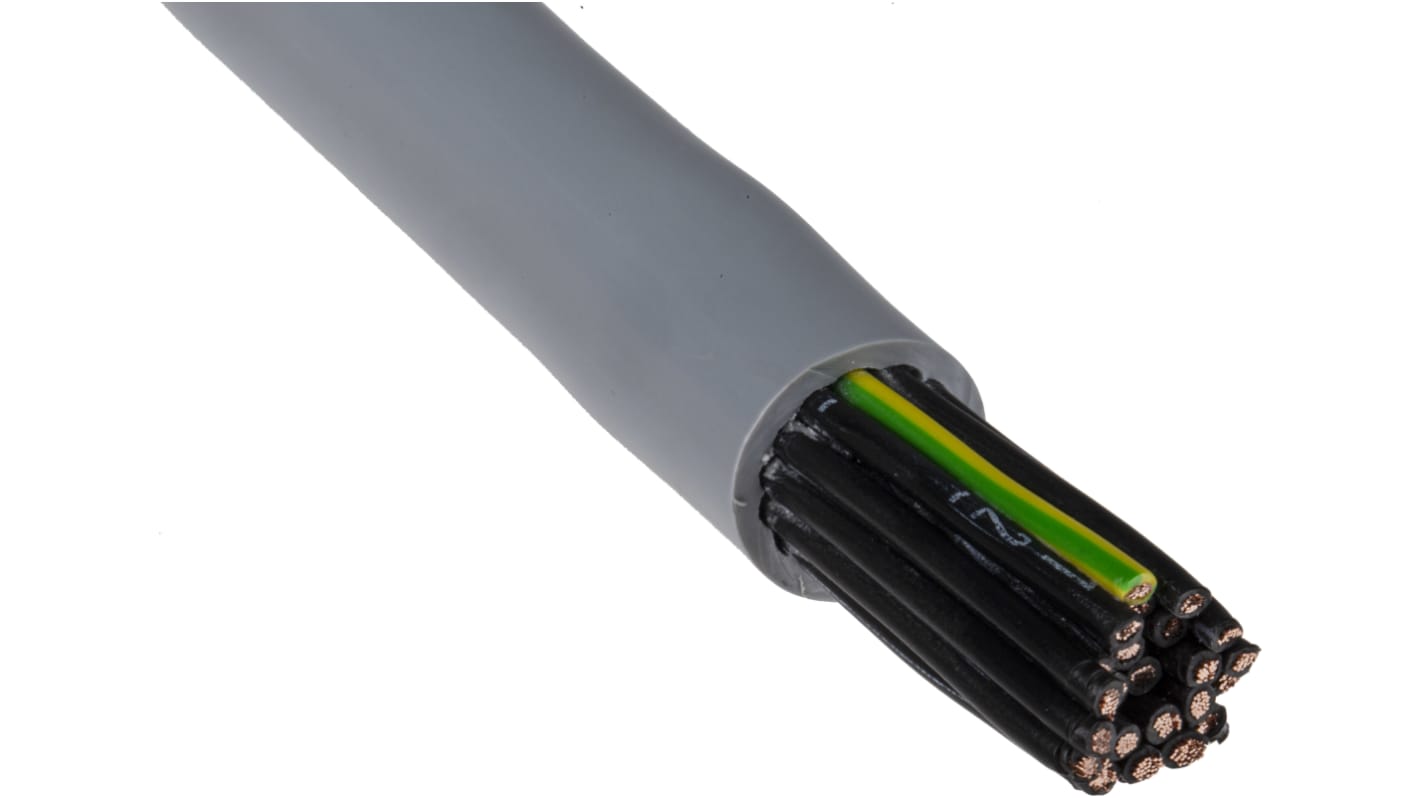

RS PRO Control Cable, 25 Cores, 1 mm², YY, Unscreened, 50m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 827-4322
- Distrelec Article No.:
- 303-95-480
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£284.29
(exc. VAT)
£341.15
(inc. VAT)
FREE delivery for orders over £50.00
- 113 unit(s) ready to ship
- Plus 35 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 09 February 2026
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £284.29 | £5.686 |
*price indicative
- RS Stock No.:
- 827-4322
- Distrelec Article No.:
- 303-95-480
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 25 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | YY | |
Screen Type | Unscreened | |
Screened/Unscreened | Unscreened | |
Minimum Bend Radius | Fixed - 4 x D, Occasional Flexing - 15 x D | |
Length | 50m | |
Outer Diameter | 14.7mm | |
Voltage Rating | 300/500 V | |
Current Rating | 15 A | |
CPR Certification | Eca | |
Standards Met | IEC 60228 | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Core Strands | 32/0.2 mm | |
Earth Cable | Yes | |
Filler Material | Non-Wicking Filler | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -40°C | |
Conductor Resistance | 19.5 Ω/km | |
Insulation Material | PVC | |
Cable Shape | Multicore | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 25 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Minimum Bend Radius Fixed - 4 x D, Occasional Flexing - 15 x D | ||
Length 50m | ||
Outer Diameter 14.7mm | ||
Voltage Rating 300/500 V | ||
Current Rating 15 A | ||
CPR Certification Eca | ||
Standards Met IEC 60228 | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Core Strands 32/0.2 mm | ||
Earth Cable Yes | ||
Filler Material Non-Wicking Filler | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
Conductor Resistance 19.5 Ω/km | ||
Insulation Material PVC | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 25 Cores, 1 mm² Cross Sectional Area
Features & Benefits
• Rated for 300/500 V operation to accommodate various usage
• Bare copper conductor offers superior conductivity and lower resistance
• Good chemical resistance ensures durability in harsh conditions
Applications
• Suitable for conveyor and transport system wiring
• Effective in heating and air-conditioning systems for effective control
What is the minimum bend radius for this cable?
Can this cable withstand varying temperature conditions?
What are the advantages of the unscreened design?
How does this cable maintain performance under heavy loads?
Is this cable suitable for outdoor use?
