RS PRO Control Cable, 2 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£64.62

(exc. VAT)

£77.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 52 unit(s) ready to ship
  • Plus 8 unit(s) ready to ship from another location
  • Plus 20 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£64.62£1.292

*price indicative

RS Stock No.:
827-4133
Distrelec Article No.:
300-49-560
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

ÖLFLEX® CLASSIC 115 CY

Number of Cores

2

Cross Sectional Area

0.75 mm²

American Wire Gauge

18 AWG

Conductor Material

Copper

Sheath Material

PVC

Sheath Colour

Grey

Control Cable Type

CY

Screened/Unscreened

Screened

Screen Type

Braid

Length

50m

Outer Diameter

6.2mm

Minimum Bend Radius

Fixed - 6 x D Occasional Flexing - 20 x D

Voltage Rating

300/500 V

Current Rating

12 A

Standards Met

EN 50525-2-51

CPR Certification

Eca

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+80°C

Earth Cable

Yes

Core Strands

24/0.2 mm

Oil Resistant

Yes

Cable Shape

Multicore

Minimum Operating Temperature

-40°C

Filler Material

Non-Wicking Filler

Conductor Resistance

26 Ω/km

Insulation Material

PVC

COO (Country of Origin):
DE

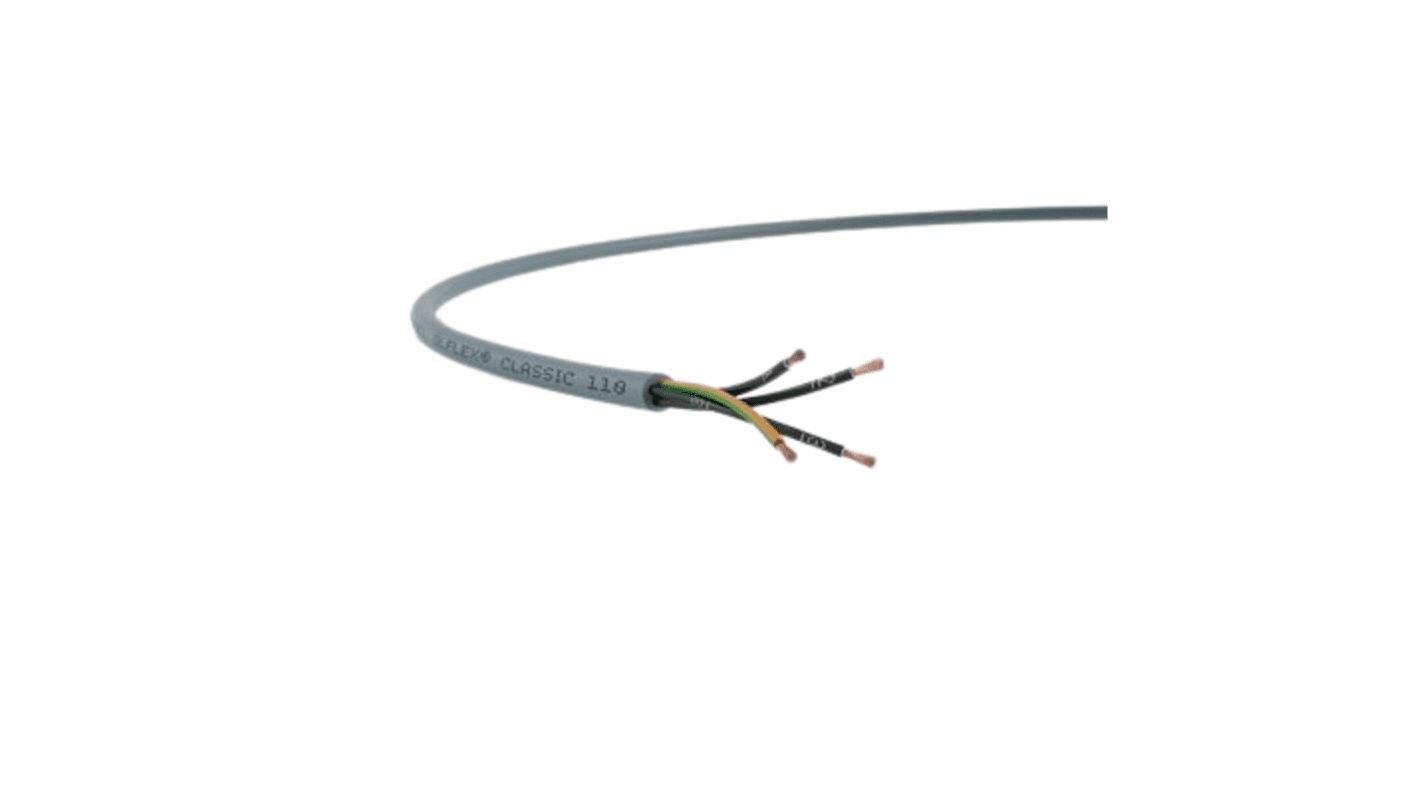

LAPP ÖLFLEX® CLASSIC 115 CY Series Control Cable, 0.75 mm² Cross Sectional Area, 300/500V Voltage Rating - 1136802


This control cable is a versatile solution designed for various applications across the electrical and mechanical industries. It features a small outer diameter of 6.2mm, making it suitable for tight spaces. Rated for 300/500 V, this screened PVC control cable ensures reliable performance in both fixed and flexible installations.

Features & Benefits


• Screened design minimises interference for signal integrity
• Flexible construction allows for torsional usage
• Flame-retardant properties enhance safety in installations
• Excellent resistance to chemicals provides durability
• Thin, lightweight design enables space-saving installations

Applications


• Utilised in measurement and control technologies
• Suitable for plant engineering and industrial machinery
• Effective in heating and air-conditioning systems
• Ideal for office machines and data processing systems
• Effective in EMC-sensitive environments

What makes this cable suitable for demanding applications?


The fine-wire strands made of bare copper ensure conductivity and flexibility, allowing the cable to perform reliably even in dynamic applications like wind turbine generators. The high degree of screening also protects against electromagnetic interference.

How does the chemical resistance benefit operational longevity?


The chemical resistance ensures that the cable can withstand exposure to various substances without degrading, making it essential for use in industrial settings where chemicals may be present.

What temperature range can be expected during operation?


This cable operates effectively across a wide temperature spectrum, from -40°C during fixed installation to +70°C during occasional flexing, ensuring it can adapt to various environmental conditions.

Note

CY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
