RS PRO Control Cable, 18 Cores, 0.75 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£398.47

(exc. VAT)

£478.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£398.47£7.969

*price indicative

RS Stock No.:
827-4237
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

ÖLFLEX® CLASSIC 110 SY

Number of Cores

18

Cross Sectional Area

0.75 mm²

American Wire Gauge

18 AWG

Conductor Material

Copper

Sheath Material

PVC

Control Cable Type

SY

Sheath Colour

Transparent

Screen Type

Braid

Screened/Unscreened

Screened

Length

50m

Minimum Bend Radius

Fixed - 6 x D Occasional Flexing - 20 x D

Outer Diameter

14.9mm

Voltage Rating

300/500 V

Current Rating

12 A

Standards Met

EN 50525-2-51

CPR Certification

Eca

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+80°C

Earth Cable

Yes

Core Strands

24/0.2 mm

Bedding Material

PVC

Insulation Material

PVC

Cable Shape

Multicore

Minimum Operating Temperature

-40°C

Filler Material

Non-Wicking Filler

Conductor Resistance

26 Ω/km

Oil Resistant

Yes

COO (Country of Origin):
DE

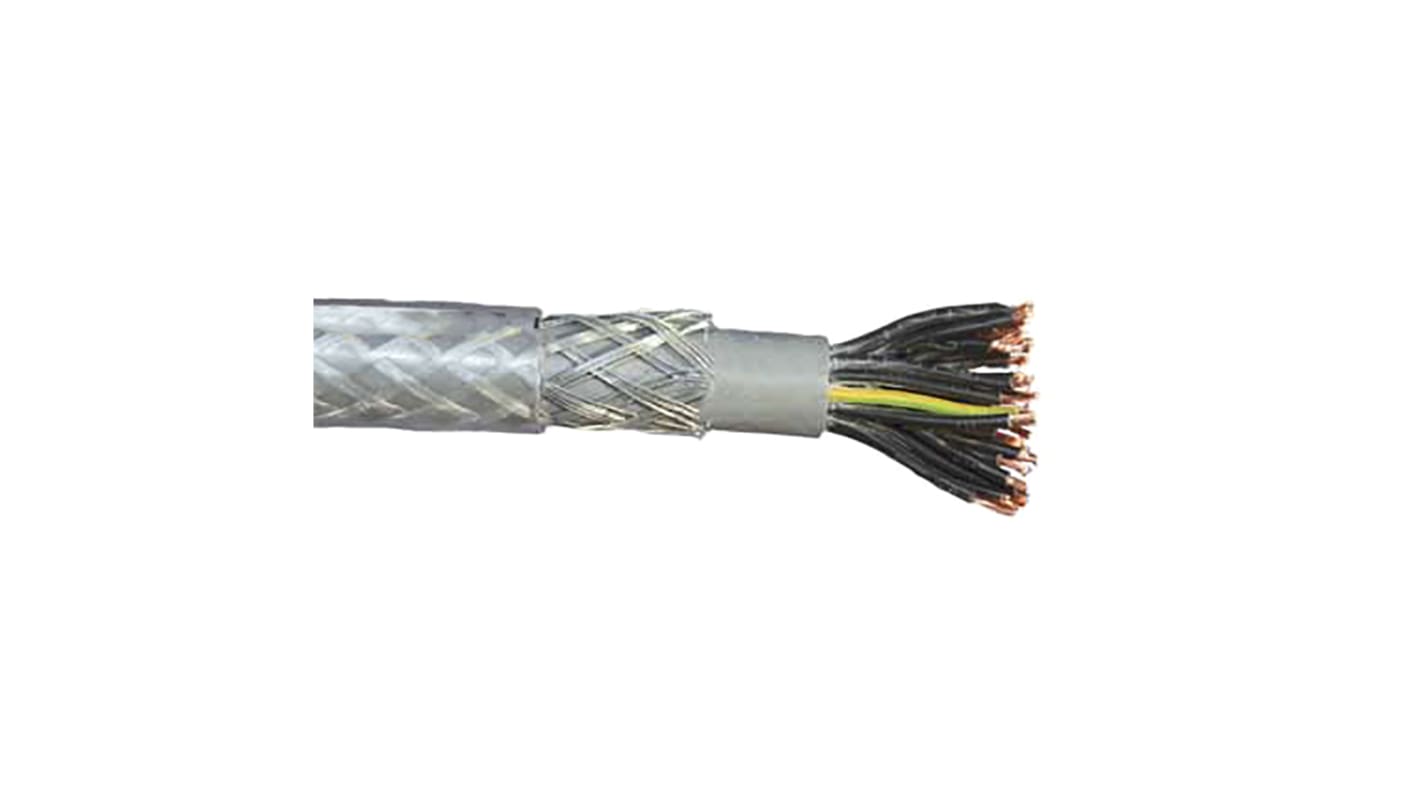

RS PRO CLASSIC 110 SY Series Control Cable, 50m Length, 0.75 mm² Cross Sectional Area


This control cable features an 18-core design and a cross-sectional area of 0.75 mm², making it suitable for a range of applications in both flexible and fixed installations. Constructed with a screened PVC sheath, it offers durability and protection, capable of functioning in dry, damp, and wet environments. The cable has an outer diameter of 14.9mm and a length of 50m, ensuring versatility for various electrical wiring solutions.

Features & Benefits


• Screened design protects against electromagnetic interference for reliable data transmission
• Flame retardant materials enhance safety in hazardous environments
• Oil resistance contributes to longevity in industrial usage
• Copper conductors ensure excellent conductivity and low resistance

Applications


• Used as a supply cable for controlling machine tools and production lines
• Applicable for interconnection in control equipment on conveyors
• Ideal for measuring, regulating, and computer units
• Suited for environments requiring flexible movement without forced guidance

What is the significance of the screened design in this cable?


The screened design helps to minimise interference from external electromagnetic sources, thereby ensuring accurate signal transmission and reducing potential disturbances in sensitive applications.

What are the implications of the cable's temperature resistance?


With a temperature resistance between -40°C to +80°C, it is well-equipped to perform in diverse environments, ensuring reliable operation in extreme conditions commonly found in industrial settings.

How does flame retardancy affect its applications?


The flame retardant properties enhance safety, making it applicable in situations where there is a risk of exposure to flames or high temperatures, thus protecting both equipment and personnel.

What type of mechanical protection does this cable feature?


The cable incorporates a braiding of galvanised steel wires, providing additional strength and protection against mechanical stress, making it robust for various industrial applications.


Type SY

Note

SY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
