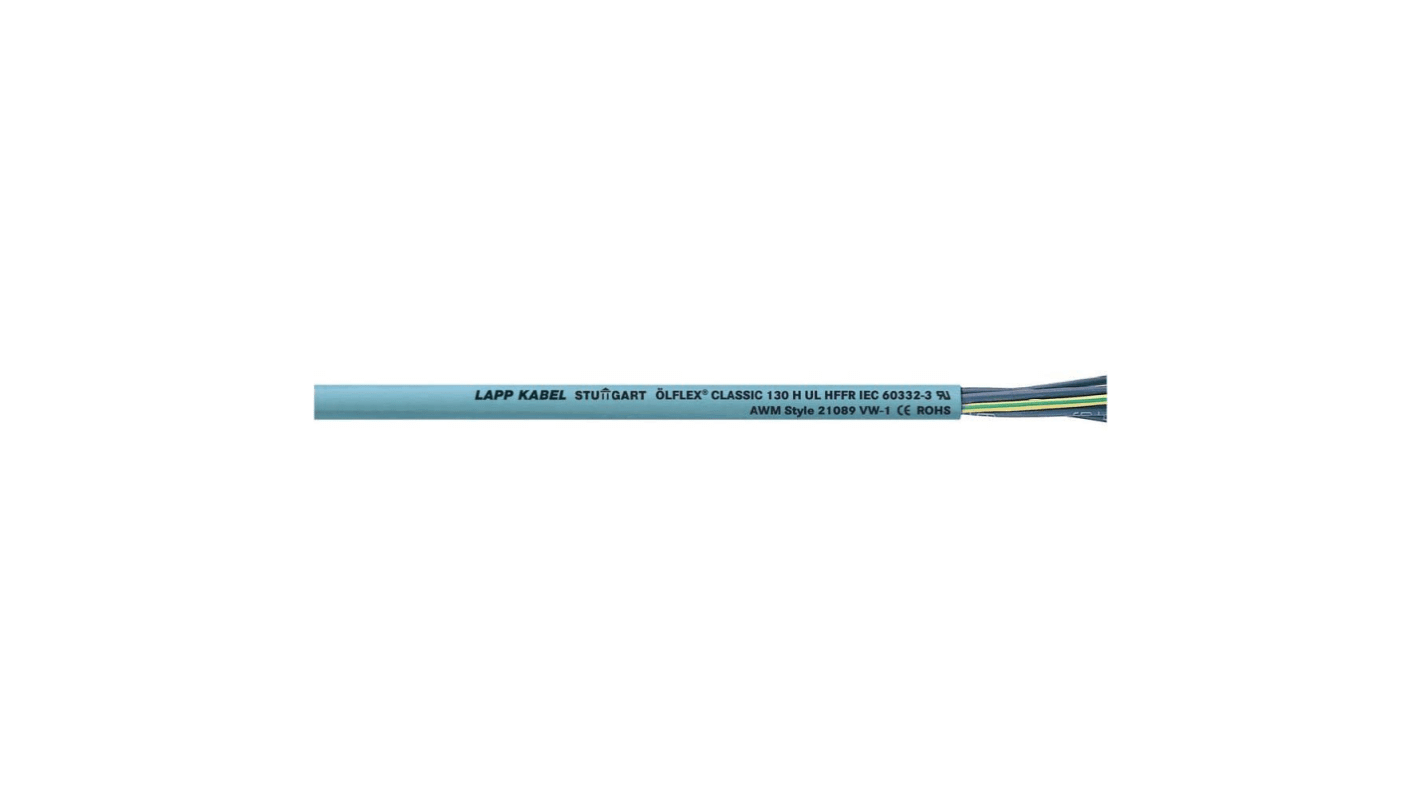

Lapp ÖLFLEX CLASSIC 130 Control Cable, 5 Cores, 1.5 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 15 AWG

RS Stock No.:: 819-9599
Mfr. Part No.:: 1123111
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 130 Control Cable, 5 Cores, 1.5 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 15 AWG

Subtotal (1 reel of 100 metres)*

£386.96

(exc. VAT)

£464.35

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

9 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£386.96	£3.87

*price indicative

RS Stock No.:: 819-9599
Mfr. Part No.:: 1123111
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 130
	Number of Cores	5
	Cross Sectional Area	1.5 mm²
	American Wire Gauge	15 AWG
	Conductor Material	Bare Copper
	Sheath Material	LSZH
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Length	100m
	Minimum Bend Radius	4 x Diameter
	Outer Diameter	8.3mm
	Voltage Rating	500 V
	CPR Certification	Dca
	Standards Met	CE, RoHS, UL
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape	Multicore
	Drain Wire	Yes
	Minimum Operating Temperature	-40°C
	Insulation Material	Zero Halogen

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 130
	Number of Cores 5
	Cross Sectional Area 1.5 mm²
	American Wire Gauge 15 AWG
	Conductor Material Bare Copper
	Sheath Material LSZH
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Length 100m
	Minimum Bend Radius 4 x Diameter
	Outer Diameter 8.3mm
	Voltage Rating 500 V
	CPR Certification Dca
	Standards Met CE, RoHS, UL
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape Multicore
	Drain Wire Yes
	Minimum Operating Temperature -40°C
	Insulation Material Zero Halogen

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 130 Series Control Cable, 5 Cores, 1.5 mm² Cross Section - 1123111

This control cable is designed for various applications requiring reliable performance and flexibility. With five cores, a cross-sectional area of 1.5 mm², and a length of 100m, this unscreened control cable is an excellent choice for both industrial plants and public buildings. The cable's LSZH sheath colour is grey, ensuring low smoke and halogen emissions in the event of fire.

Features & Benefits

• Halogen-free construction enhances safety in public spaces
• Flame-retardant properties prevent fire spread during incidents
• Flexible design facilitates easy handling and installation
• Unscreened configuration meets various usage demands
• Rated for 500V, ensuring suitability for high-voltage use

Applications

• Utilised in public buildings such as airports and train stations
• Applied in industrial machinery and plant engineering
• Ideal for heating and air-conditioning systems
• Suitable for stage and event with fire hazard considerations

What type of material is used for the conductor?

The conductor is made from fine-wire strands of bare copper, offering excellent conductivity and flexibility.

What environments can this cable be used in?

This cable is suitable for both indoor installations and temporary outdoor use, provided specific temperature ranges are adhered to.

What are the temperature tolerances for fixed and flexible installations?

For occasional flexing, the cable tolerates temperatures from -25°C to +70°C, and for fixed installations, it can operate between -40°C and +80°C.

How does the LSZH feature benefit safety during use?

The low smoke zero halogen feature reduces harmful emissions in the event of fire, ensuring better air quality and safety for occupants.
