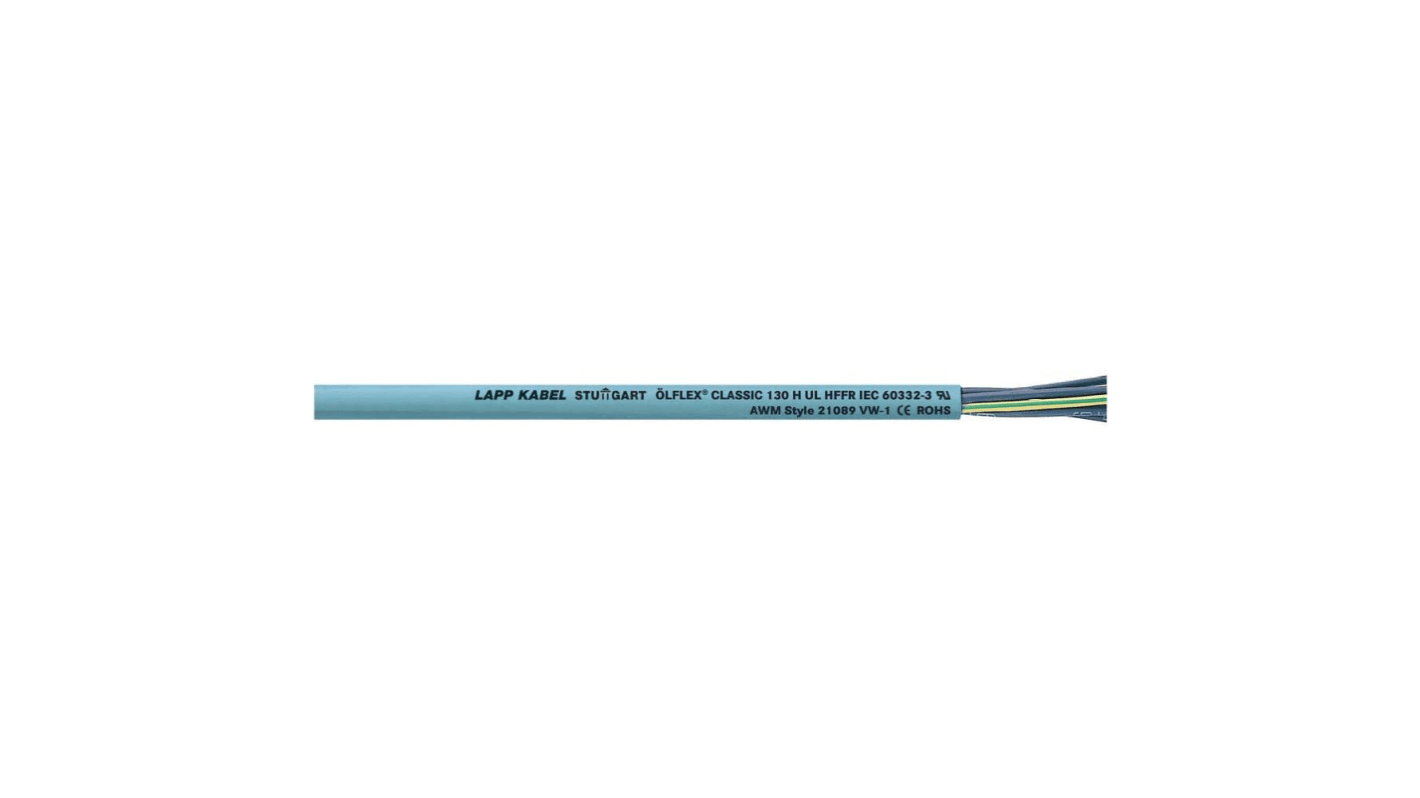

Lapp ÖLFLEX CLASSIC 130 Control Cable, 4 Cores, 1.5 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 15 AWG

RS Stock No.:: 819-9596
Mfr. Part No.:: 1123109
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 130 Control Cable, 4 Cores, 1.5 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 15 AWG

Subtotal (1 reel of 100 metres)*

£312.84

(exc. VAT)

£375.41

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

6 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£312.84	£3.128

*price indicative

RS Stock No.:: 819-9596
Mfr. Part No.:: 1123109
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 130
	Number of Cores	4
	Cross Sectional Area	1.5 mm²
	American Wire Gauge	15 AWG
	Conductor Material	Bare Copper
	Sheath Material	LSZH
	Control Cable Type	YY
	Sheath Colour	Grey
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Length	100m
	Outer Diameter	7.4mm
	Minimum Bend Radius	4 x Diameter
	Voltage Rating	500 V
	CPR Certification	Dca
	Standards Met	CE, RoHS, UL
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Drain Wire	Yes
	Insulation Material	Zero Halogen
	Minimum Operating Temperature	-40°C
	Cable Shape	Multicore

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 130
	Number of Cores 4
	Cross Sectional Area 1.5 mm²
	American Wire Gauge 15 AWG
	Conductor Material Bare Copper
	Sheath Material LSZH
	Control Cable Type YY
	Sheath Colour Grey
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Length 100m
	Outer Diameter 7.4mm
	Minimum Bend Radius 4 x Diameter
	Voltage Rating 500 V
	CPR Certification Dca
	Standards Met CE, RoHS, UL
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Drain Wire Yes
	Insulation Material Zero Halogen
	Minimum Operating Temperature -40°C
	Cable Shape Multicore

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 130 Series Control Cable, 4 Cores, 1.5mm² Cross Sectional Area - 1123109

This control cable is a versatile and robust solution ideal for various applications in the automation and electronics sectors. Featuring 4 cores with a cross-sectional area of 1.5 mm², this cable offers high flexibility and ease of installation. With a length of 100m and an outer diameter of 7.4mm, it is suitable for both fixed installations and occasional flexing.

Features & Benefits

• Halogen-free material reduces fire hazards and smoke emissions
• Low smoke output enhances visibility during emergencies
• Unscreened layout allows easy installation and handling
• Includes a bare copper conductor for efficient conductivity

Applications

• Used in public buildings including airports and railway stations
• Applicable in plant engineering and industrial machinery setups
• Suitable for heating and air-conditioning systems
• Ideal for stage and live event
• Effective in areas at high risk of fire hazards

What temperature range can be accommodated for fixed installations?

It supports a minimum temperature of -40°C and a maximum of +80°C, ensuring reliability in varying conditions.

How does this cable compare between screened and unscreened options?

The unscreened design simplifies installation and reduces costs while maintaining reliable performance for many applications.

What is the significance of the LSZH material in this cable?

The low smoke zero halogen (LSZH) composition ensures the cable emits minimal toxic smoke in the event of a fire, enhancing safety during emergencies.

How is fire safety achieved with this cable?

The flame-retardant properties comply with IEC standards, ensuring that the cable does not propagate flames and reduces risks in critical applications.
