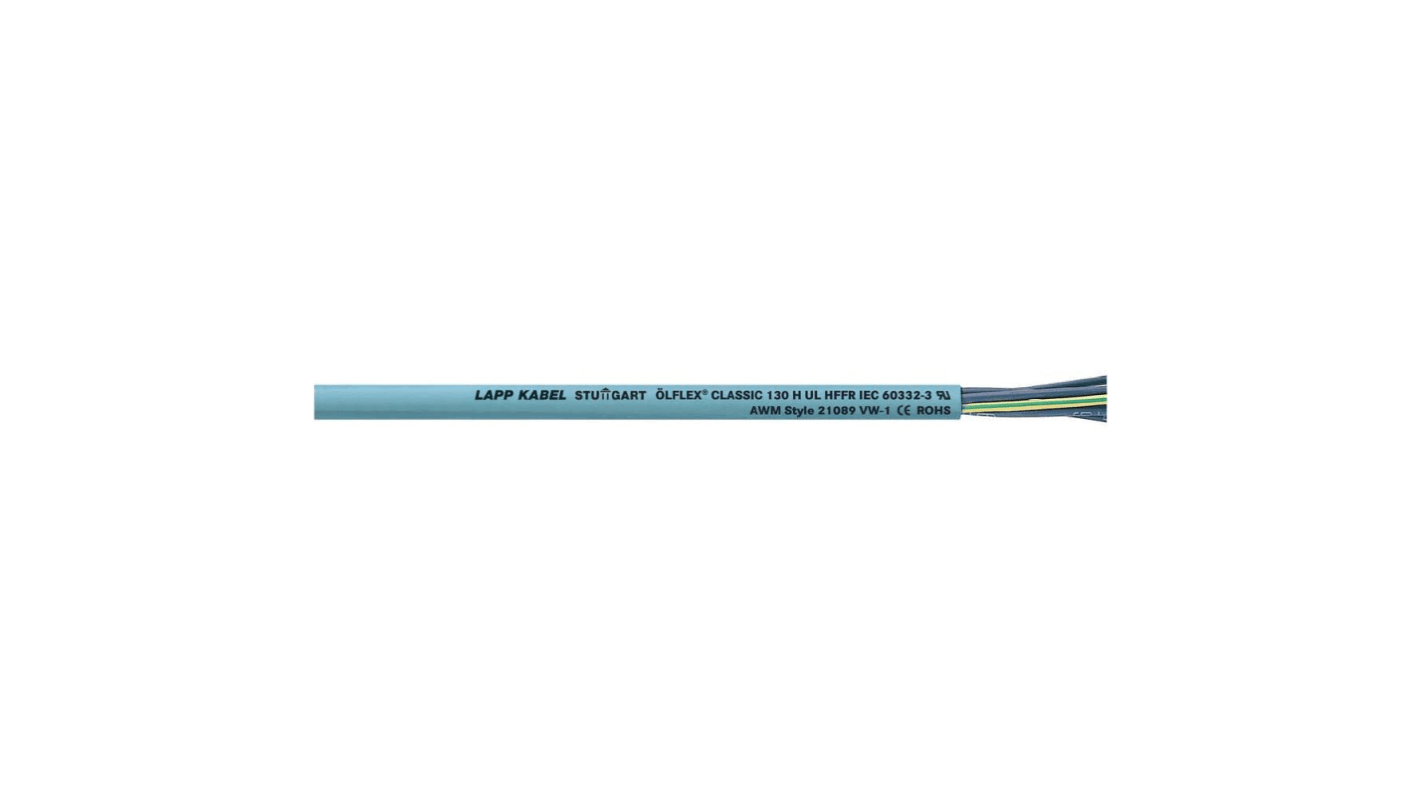

Lapp ÖLFLEX CLASSIC 130 Control Cable, 3 Cores, 1 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 17 AWG

RS Stock No.:: 819-9574
Mfr. Part No.:: 1123067
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 130 Control Cable, 3 Cores, 1 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 17 AWG

Subtotal (1 reel of 100 metres)*

£190.52

(exc. VAT)

£228.62

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£190.52	£1.905

*price indicative

Shop our LAPP Glands

Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.

Shop here

RS Stock No.:: 819-9574
Mfr. Part No.:: 1123067
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 130
	Number of Cores	3
	Cross Sectional Area	1 mm²
	American Wire Gauge	17 AWG
	Conductor Material	Bare Copper
	Sheath Material	LSZH
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Minimum Bend Radius	4 x Diameter
	Outer Diameter	6.1mm
	Length	100m
	Voltage Rating	500 V
	Standards Met	CE, RoHS, UL
	CPR Certification	Dca
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape	Multicore
	Minimum Operating Temperature	-40°C
	Insulation Material	Zero Halogen
	Drain Wire	Yes

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 130
	Number of Cores 3
	Cross Sectional Area 1 mm²
	American Wire Gauge 17 AWG
	Conductor Material Bare Copper
	Sheath Material LSZH
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Minimum Bend Radius 4 x Diameter
	Outer Diameter 6.1mm
	Length 100m
	Voltage Rating 500 V
	Standards Met CE, RoHS, UL
	CPR Certification Dca
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape Multicore
	Minimum Operating Temperature -40°C
	Insulation Material Zero Halogen
	Drain Wire Yes

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 130 Series Control Cable, 3 Cores, 1 mm² Cross Sectional Area - 1123067

This control cable is designed specifically for diverse industrial applications. Featuring a 3 core design with a cross-sectional area of 1 mm², it measures 100m in length and has a grey LSZH sheath that meets high safety standards. With a voltage rating of 500V, this insulated multicore cable is a robust solution for various environments.

Features & Benefits

• Halogen-free construction enhances safety in fire hazards
• Flame retardant properties reduce fire propagation risks
• Flexible design allows for easy handling and installation
• Unscreened option simplifies installations in various settings
• Low smoke emissions ensure safer cable performance during fires

Applications

• Ideal for public building installations like airports and railway stations
• Suitable for industrial machinery connections and plant engineering
• Used in heating and air-conditioning systems for effective control
• Effective for stage where safety is paramount

What are the temperature limits for this cable?

It can operate within a temperature range of -40°C to +80°C, making it versatile for various applications.

How does the flame retardant feature benefit users?

Flame retardancy decreases the risk of fire spreading, thereby enhancing safety in critical environments.

Is this cable suitable for outdoor use?

Yes, it is suitable for temporary outdoor use, provided appropriate precautions are taken.

What materials are used in its construction?

It consists of bare copper conductors and a special halogen-free outer sheath, contributing to its safety and flexibility.
