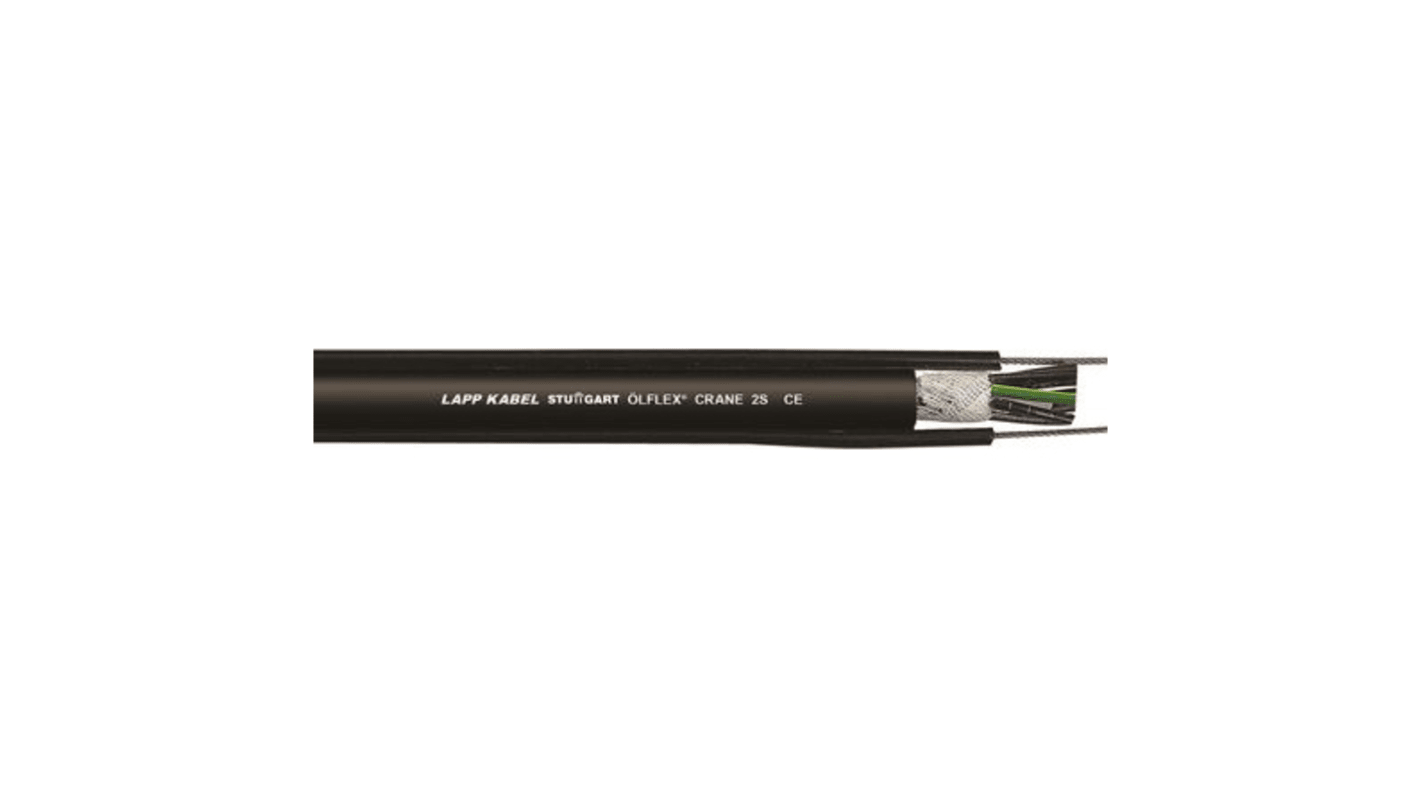

Lapp ÖLFLEX CRANE 25 Control Cable, 12 Cores, 1.5 mm², Unscreened, 10m, Black PVC Sheath, 15 AWG
- RS Stock No.:
- 813-4735
- Distrelec Article No.:
- 304-01-858
- Mfr. Part No.:
- 38106986
- Brand:
- Lapp
Subtotal (1 reel of 10 metres)*
£103.20
(exc. VAT)
£123.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £103.20 | £10.32 |
*price indicative
- RS Stock No.:
- 813-4735
- Distrelec Article No.:
- 304-01-858
- Mfr. Part No.:
- 38106986
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX CRANE 25 | |
Number of Cores | 12 | |
Cross Sectional Area | 1.5 mm² | |
American Wire Gauge | 15 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PVC | |
Sheath Colour | Black | |
Screened/Unscreened | Unscreened | |
Minimum Bend Radius | 20 x 16.2 | |
Length | 10m | |
Outer Diameter | 16.2mm | |
Voltage Rating | 300 V, 500 V | |
Maximum Operating Temperature | +70°C | |
Insulation Material | PVC | |
Minimum Operating Temperature | -15°C | |
Earth Cable | Yes | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX CRANE 25 | ||
Number of Cores 12 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 15 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Black | ||
Screened/Unscreened Unscreened | ||
Minimum Bend Radius 20 x 16.2 | ||
Length 10m | ||
Outer Diameter 16.2mm | ||
Voltage Rating 300 V, 500 V | ||
Maximum Operating Temperature +70°C | ||
Insulation Material PVC | ||
Minimum Operating Temperature -15°C | ||
Earth Cable Yes | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 300/500V Voltage Rating, 16.2mm OD - ÖLFLEX CRANE 25 Series - 38106986
Hit new heights with this crane control cable from LAPP. It has two steel supporting elements integrated into the outer layer to take the strain of heavy weights and absorb tensile forces during operation. The tough PVC sheath is resistant to heat, chemicals and oils, so it stands up to the challenges of outdoor use. This is an ideal choice in all weathers as it's resistant to UV and maintains its flexibility even in cold conditions.
Features & Benefits
• 12 bare copper cores ensure high electrical conductivity for efficient performance
• Earth cable included for added safety
• Flame-retardant for protection in the event of a fire
• Earth cable included for added safety
• Flame-retardant for protection in the event of a fire
Applications
• Construction industry
• Control panels and consoles
• High-rack systems
• Control panels and consoles
• High-rack systems
What's the free suspension height of this cable?
Thanks to a free suspension height of 50m, you can use it as a self-supporting shaft cable.
ÖLFLEX CRANE 2S
