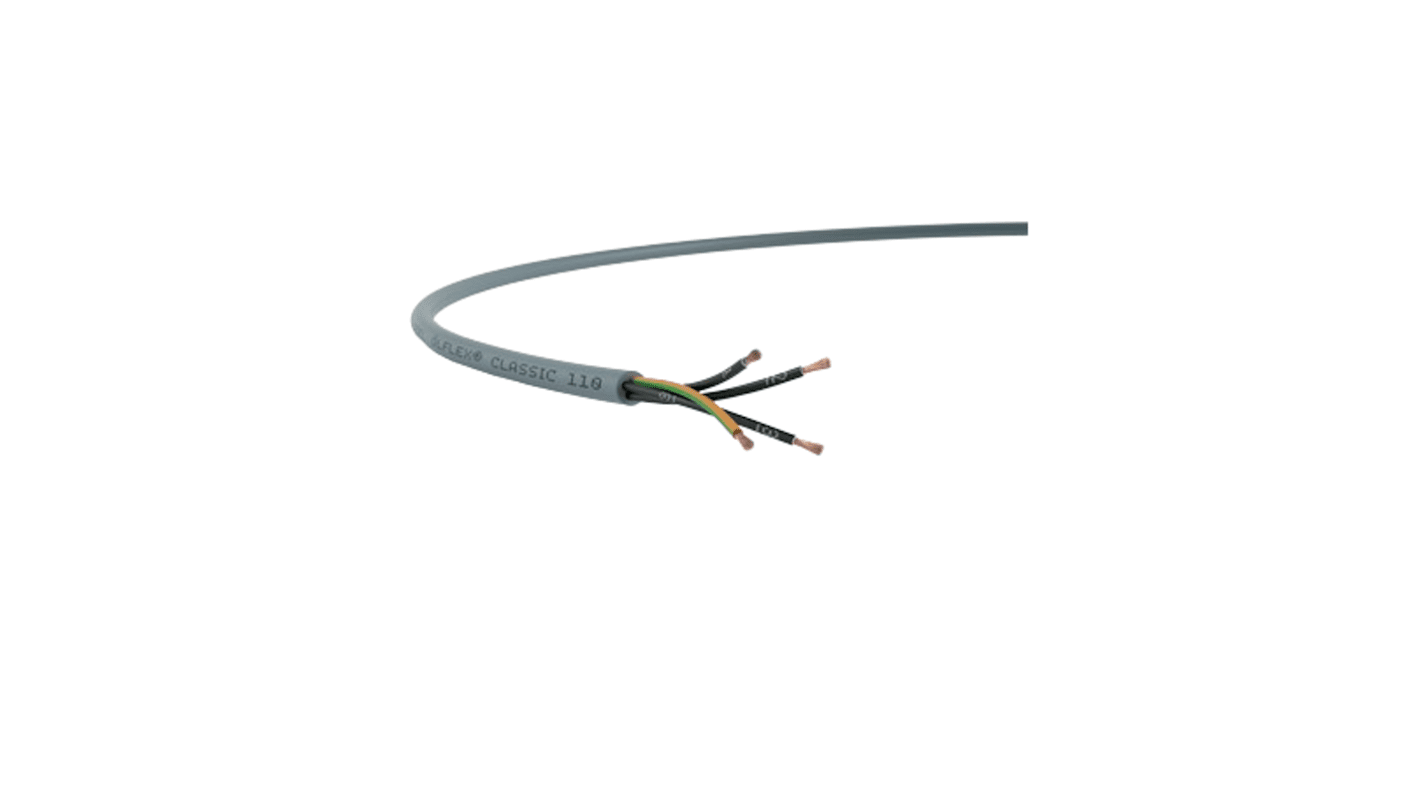

Lapp ÖLFLEX CLASSIC 110 Control Cable, 4 Cores, 1 mm², YY, Unscreened, 50m, Grey PVC Sheath, 17 AWG

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

This control cable by Lapp is designed with a 17 AWG copper conductor. With a focus on quality and performance, this cable is suitable for a wide range of applications in automation, electronics, electrical, and mechanical industries.

• Copper conductor with 17 AWG for efficient transmission of electrical signals
• PVC insulation material offers durability and protection
• Cross-sectional area of 1mm² ensures optimal performance
• Voltage rating of 300/500 V for versatile usage
• Oil-resistant properties for enhanced longevity.

• Ideal for fixed installations and occasional flexing in various industrial settings
• Suitable for power chains and torsional applications commonly found in wind turbine generators
• Can be used in dry or damp rooms subject to medium mechanical loads

Yes, it has a wide temperature range of -40°C to +80°C, making it versatile for different environments.

Yes, the cable provides good chemical resistance, ensuring longevity and performance.

Yes, it is designed to be used in power chains with a travelling distance of up to 5m and 0.2 to 1 million bending cycles.

Yes, the cable is oil-resistant according to DIN EN 50290-2-22 (TM54), making it ideal for oil-exposed environments.

Yes, the PVC insulation material ensures durability and protection for the copper conductor, enhancing the cable's lifespan.
