Lapp ÖLFLEX CONTROL TM CY Control Cable, 18 Cores, 1 mm², YY, Screened, 50m, Grey Thermoplastic Polymer Sheath, 17 AWG

RS Stock No.:: 807-9773
Mfr. Part No.:: 281818CY
Brand:: Lapp

Lapp ÖLFLEX CONTROL TM CY Control Cable, 18 Cores, 1 mm², YY, Screened, 50m, Grey Thermoplastic Polymer Sheath, 17 AWG

Subtotal (1 reel of 50 metres)*

£880.86

(exc. VAT)

£1,057.03

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 11 unit(s) shipping from 22 October 2025
Plus 3 unit(s) shipping from 22 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£880.86	£17.617

*price indicative

RS Stock No.:: 807-9773
Mfr. Part No.:: 281818CY
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CONTROL TM CY
	Number of Cores	18
	Cross Sectional Area	1 mm²
	American Wire Gauge	17 AWG
	Conductor Material	Bare Copper
	Sheath Material	Thermoplastic Polymer
	Control Cable Type	YY
	Sheath Colour	Grey
	Screened/Unscreened	Screened
	Screen Type	Braid, Foil
	Outer Diameter	15.5mm
	Length	50m
	Minimum Bend Radius	5 x Diameter
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+90°C
	Oil Resistant	Yes
	Insulation Material	PVC
	Drain Wire	Yes
	Minimum Operating Temperature	-40°C
	Cable Shape	Multicore

	Select all
	Brand Lapp
	Series ÖLFLEX CONTROL TM CY
	Number of Cores 18
	Cross Sectional Area 1 mm²
	American Wire Gauge 17 AWG
	Conductor Material Bare Copper
	Sheath Material Thermoplastic Polymer
	Control Cable Type YY
	Sheath Colour Grey
	Screened/Unscreened Screened
	Screen Type Braid, Foil
	Outer Diameter 15.5mm
	Length 50m
	Minimum Bend Radius 5 x Diameter
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +90°C
	Oil Resistant Yes
	Insulation Material PVC
	Drain Wire Yes
	Minimum Operating Temperature -40°C
	Cable Shape Multicore

COO (Country of Origin):: DE

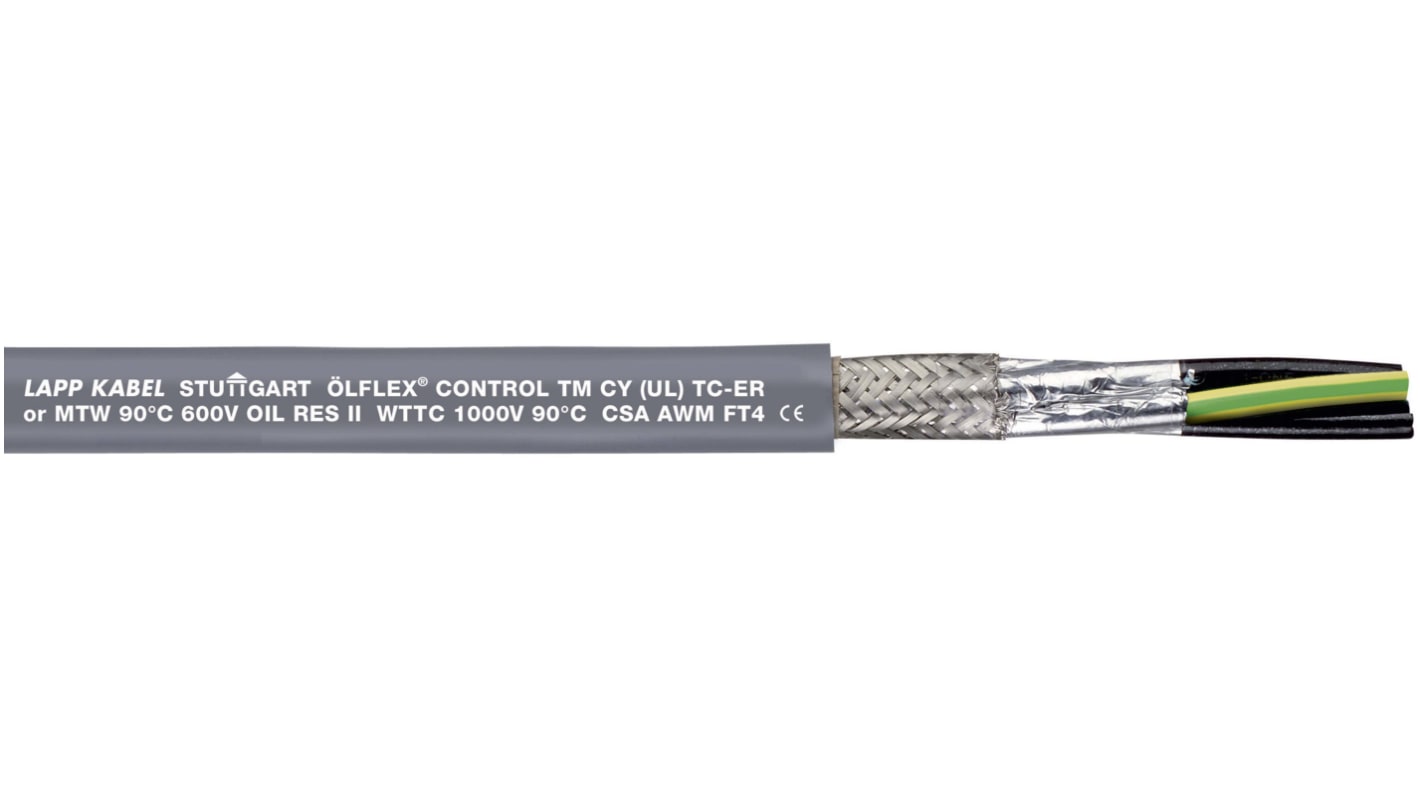

LAPP ÖLFLEX CONTROL TM CY Series Control Cable, 18 Cores, 1 mm² Cross Section - 281818CY

This control cable is designed for industrial machinery and plant engineering applications. Featuring 18 cores with a cross-sectional area of 1 mm², it offers comprehensive capabilities for various automation tasks. The cable has a sheath made of thermoplastic polymer, ensuring durability and performance in diverse environments, whilst measuring 15.5mm in outer diameter and extending up to 50m in length.

Features & Benefits

• Screened design minimises interference signals for improved performance
• Flame-retardant properties enhance safety in industrial settings
• Oil-resistant to withstand challenging conditions and improve longevity
• Conforms to essential industry standards for peace of mind

Applications

• Suitable for use in wind turbine generator installations
• Ideal for exposed run laying sections in cable trays
• Compatible with various unprotected 600V operations
• Effective for powering industrial automation machinery

What materials are used in the construction of this cable?

The cable is composed of bare copper conductors, PVC insulation, and a thermoplastic polymer sheath, providing excellent mechanical resistance and durability against environmental factors.

How does the construction impact its flexibility and installation?

The flexible multicore design allows for easy routing and installation in tight spaces, and the torsion-resistant feature is particularly beneficial for applications requiring movement, such as in wind turbine setups.

What kind of performance can be expected in various temperatures?

This cable maintains stable performance across a range of temperatures from -40°C for static positioning to +90°C during operational conditions, accommodating demanding environments.
