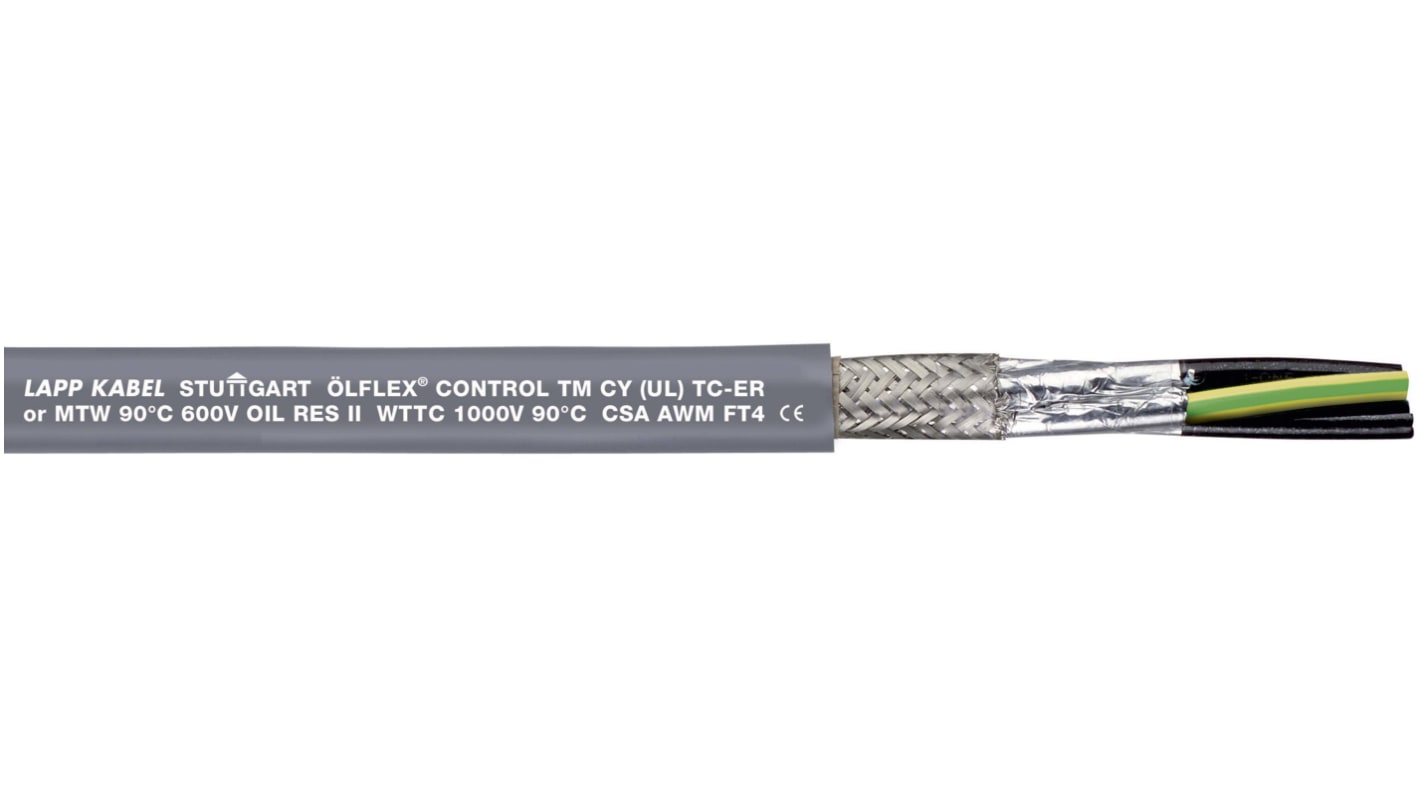

Lapp ÖLFLEX CONTROL TM CY Control Cable, 25 Cores, 1 mm², YY, Screened, 50m, Grey Thermoplastic Polymer Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£924.48

(exc. VAT)

£1,109.38

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£924.48£18.49

*price indicative

Sponsored
Lapp Glands
LAPP
Shop our LAPP Glands
Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.
Shop here
RS Stock No.:
807-9685
Mfr. Part No.:
281825CY
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

ÖLFLEX CONTROL TM CY

Number of Cores

25

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Bare Copper

Sheath Material

Thermoplastic Polymer

Control Cable Type

YY

Sheath Colour

Grey

Screened/Unscreened

Screened

Screen Type

Braid, Foil

Minimum Bend Radius

5 x Diameter

Length

50m

Outer Diameter

17.5mm

Voltage Rating

600 V

Standards Met

CE, CSA, UL

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+90°C

Drain Wire

Yes

Insulation Material

PVC

Cable Shape

Multicore

Oil Resistant

Yes

Minimum Operating Temperature

-40°C

COO (Country of Origin):
DE

LAPP ÖLFLEX CONTROL TM CY Series Control Cable, 25 Number of Cores, 1 mm² Cross Sectional Area - 281825CY


This control cable is designed for industrial applications and features a versatile multicore structure. With a length of 50m and an outer diameter of 17.5mm, it provides effective power and control connectivity in challenging environments. Its PVC insulation and thermoplastic polymer sheath ensure durability across a wide temperature range, from -40°C to +90°C.

Features & Benefits


• Screened design reduces electromagnetic interference
• Flame-retardant properties enhance safety in installations
• Oil resistance extends application versatility
• Torsion-resistant for dynamic movements in wind turbines

Applications


• Suitable for unprotected installations on cable trays
• Used in automation systems within industrial machinery
• Ideal for plant engineering and wind turbine
• Effective for power distribution in harsh environments

What type of screening does this cable provide?


The cable features high-grade screening, utilising both braid and foil methods to minimise interference signals, making it suitable for sensitive applications.

How does the oil resistance benefit operational use?


Oil resistance ensures longevity and performance in environments exposing the cable to oil or hydraulic fluids, critical in industrial settings and machinery operation.

What are the implications of the cable's high temperature rating?


This cable can operate effectively under high temperatures, allowing for versatile use in environments where standard cables may fail due to heat exposure, safeguarding your installations.

What bending radius is suitable for installation?


For optimal performance, the minimum bend radius should be five times the outer diameter, ensuring no damage occurs during installation and operation.

How does the flame-retardant feature enhance safety?


The flame-retardant characteristics of this cable reduce fire risks by limiting the spread of flames, essential for safety protocols in industrial settings.
