Lapp ÖLFLEX CONTROL TM CY Control Cable, 4 Cores, 1.5 mm², CY, Screened, 50m, Grey Thermoplastic Polymer Sheath, 15 AWG

RS Stock No.:: 807-9732
Mfr. Part No.:: 281604CY
Brand:: Lapp

Lapp ÖLFLEX CONTROL TM CY Control Cable, 4 Cores, 1.5 mm², CY, Screened, 50m, Grey Thermoplastic Polymer Sheath, 15 AWG

Subtotal (1 reel of 50 metres)*

£423.49

(exc. VAT)

£508.19

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

12 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£423.49	£8.47

*price indicative

RS Stock No.:: 807-9732
Mfr. Part No.:: 281604CY
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CONTROL TM CY
	Number of Cores	4
	Cross Sectional Area	1.5 mm²
	American Wire Gauge	15 AWG
	Conductor Material	Bare Copper
	Sheath Material	Thermoplastic Polymer
	Sheath Colour	Grey
	Control Cable Type	CY
	Screened/Unscreened	Screened
	Screen Type	Braid, Foil
	Length	50m
	Minimum Bend Radius	5 x Diameter
	Outer Diameter	9.4mm
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+90°C
	Oil Resistant	Yes
	Drain Wire	Yes
	Minimum Operating Temperature	-40°C
	Cable Shape	Multicore
	Insulation Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CONTROL TM CY
	Number of Cores 4
	Cross Sectional Area 1.5 mm²
	American Wire Gauge 15 AWG
	Conductor Material Bare Copper
	Sheath Material Thermoplastic Polymer
	Sheath Colour Grey
	Control Cable Type CY
	Screened/Unscreened Screened
	Screen Type Braid, Foil
	Length 50m
	Minimum Bend Radius 5 x Diameter
	Outer Diameter 9.4mm
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +90°C
	Oil Resistant Yes
	Drain Wire Yes
	Minimum Operating Temperature -40°C
	Cable Shape Multicore
	Insulation Material PVC

COO (Country of Origin):: DE

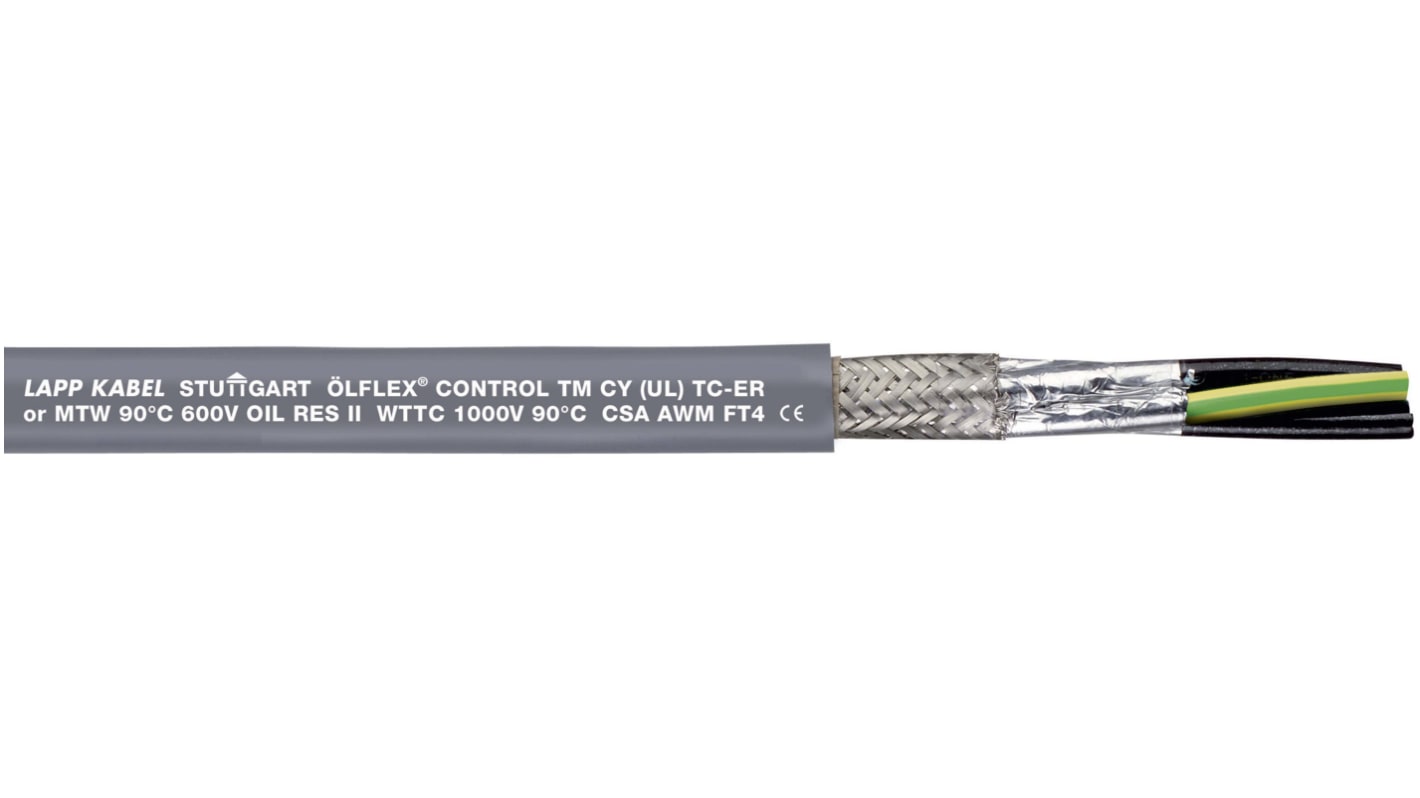

LAPP ÖLFLEX CONTROL TM CY Series Control Cable, 4 Cores, 1.5 mm² Cross Sectional Area - 281604CY

This control cable is designed for versatile industrial applications, particularly suitable for automation and plant engineering. It offers a robust construction with a 4 core configuration and a cross-sectional area of 1.5 mm². Its outer diameter measures 9.4mm and features a grey thermoplastic polymer sheath, providing necessary flexibility and durability under harsh conditions.

Features & Benefits

• Screened design reduces electromagnetic interference
• Flame retardant for enhanced safety in industrial settings
• Oil-resistant ensures longevity in exposed environments
• Torsion-resistant suitable for dynamic installations
• PVC insulation enhances mechanical resistance and durability
• Minimum bending radius allows for smooth routing and installation

Applications

• Ideal for unprotected operation on cable trays
• Suitable for wind turbine generator installations
• Utilised in machinery for compliance with relevant standards
• Applicable in programmable control systems and equipment

What conditions can this cable withstand in terms of temperature?

It operates effectively between -40°C when static and +90°C during normal usage, ensuring reliability in extreme conditions.

How does the cable’s screened feature benefit its performance?

The screening significantly reduces the amount of electromagnetic interference, making it suitable for sensitive applications in industrial automation.

What materials contribute to its suitability for outdoor use?

The thermoplastic polymer outer sheath, combined with oil resistance and protection against UV light, makes it ideal for outdoor environments.

How is the cable terminated for use in various machinery?

Termination options vary based on application

the design allows for easy integration with standard connectors to suit different machinery requirements.
