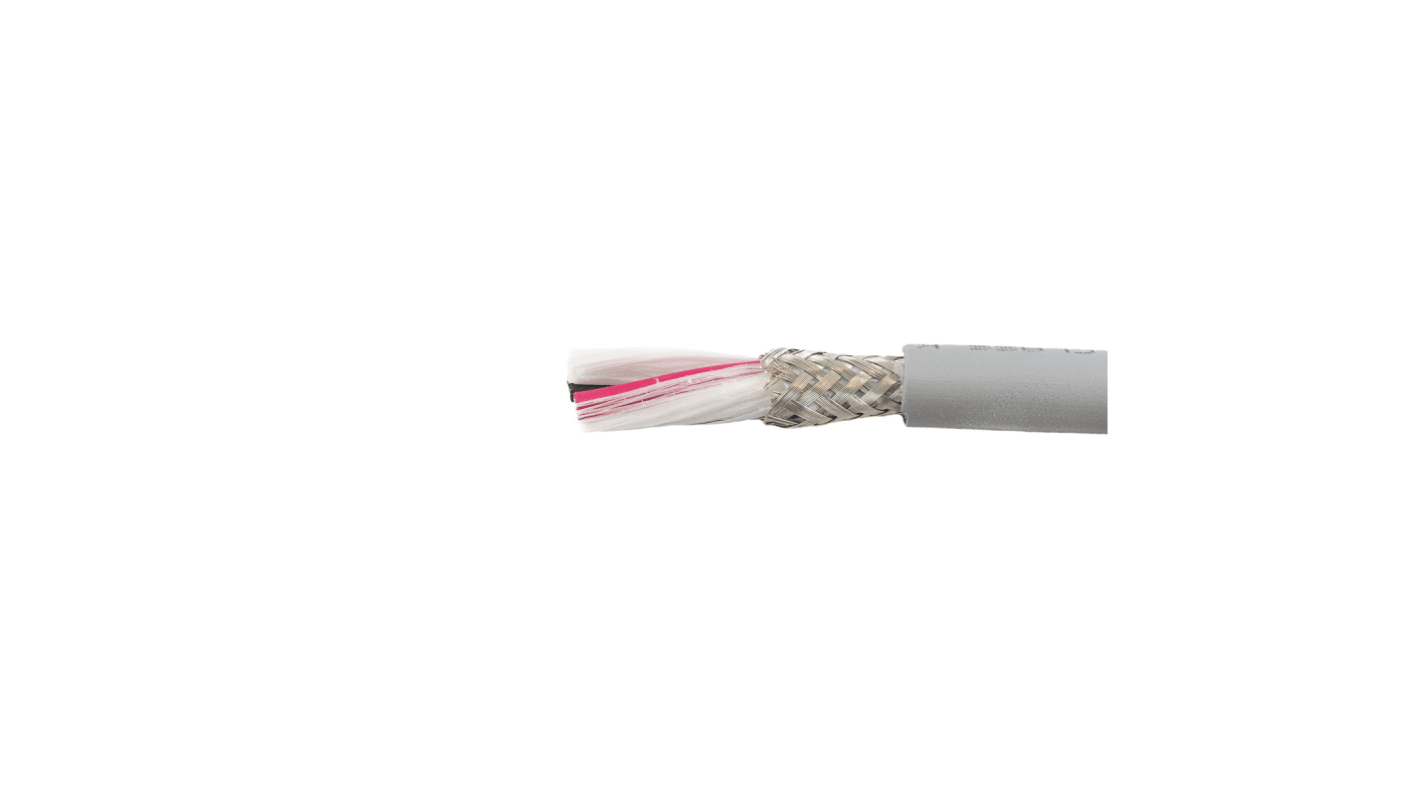

Alpha Wire Ecogen Ecoflex Control Cable, 2 Cores, 1.32 mm², ECO, Screened, 30m, Grey mPPE Sheath, 16 AWG

RS Stock No.:: 787-1919
Mfr. Part No.:: 79116 SL005
Brand:: Alpha Wire

Alpha Wire Ecogen Ecoflex Control Cable, 2 Cores, 1.32 mm², ECO, Screened, 30m, Grey mPPE Sheath, 16 AWG

Subtotal (1 reel of 31 metres)*

£712.51

(exc. VAT)

£855.01

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 03 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£712.51	£22.984

*price indicative

RS Stock No.:: 787-1919
Mfr. Part No.:: 79116 SL005
Brand:: Alpha Wire

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Series	Ecogen Ecoflex
	Number of Cores	2
	Cross Sectional Area	1.32 mm²
	American Wire Gauge	16 AWG
	Conductor Material	Tinned Copper
	Sheath Material	mPPE
	Sheath Colour	Grey
	Control Cable Type	ECO
	Screened/Unscreened	Screened
	Screen Type	Braid
	Outer Diameter	6.65mm
	Length	30m
	Minimum Bend Radius	5 x Diameter
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Fire Behaviour	Halogen Free
	Maximum Operating Temperature	+105°C
	Core Strands	26/0.25 mm
	Minimum Operating Temperature	-40°C
	Drain Wire	No
	Insulation Material	MPPE

	Select all
	Brand Alpha Wire
	Series Ecogen Ecoflex
	Number of Cores 2
	Cross Sectional Area 1.32 mm²
	American Wire Gauge 16 AWG
	Conductor Material Tinned Copper
	Sheath Material mPPE
	Sheath Colour Grey
	Control Cable Type ECO
	Screened/Unscreened Screened
	Screen Type Braid
	Outer Diameter 6.65mm
	Length 30m
	Minimum Bend Radius 5 x Diameter
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Fire Behaviour Halogen Free
	Maximum Operating Temperature +105°C
	Core Strands 26/0.25 mm
	Minimum Operating Temperature -40°C
	Drain Wire No
	Insulation Material MPPE

Alpha Wire EcoFlex 600 V Continuous Flex Control Cable - Braided

The EcoFlex range from Alpha Wire is a moderately flexible compact control cable which is fully recyclable due to its mPPE jacket and insulation construction. This multicore control cable can handle extreme temperatures, contains zero halogens, plus it is smaller and lighter than its PVC equivalent.

Multi-conductor cables with a braided shield have excellent flexibility and great mechanical strength. They are ideal for electromagnetic applications with low to medium frequencies.

Features and Benefits

LSZH (Low smoke zero halogens)

Environmentally friendly

Specific gravity: 1.03

Able to handle extreme temperatures as low as -40°C

Finely stranded tinned copper conductors

Tinned copper braid, 70% min. coverage

Excellent abrasion resistance

Smaller, lighter and lower outgassing than PVC control cables

Good mechanical strength

Rated for over 1 million flex life cycles

Available with different core quantities

Temperature Range: -40°C to +105°C (600 V), -40°C to +80°C (300 V)

What is mPPE?

mPPE is a modified polyphenylene ether thermoplastic. Cables with a mPPE sheath have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

How is the control cable environmentally friendly?

Unlike PVC, flexible cables made containing mPPE are halogen-free, contain no phthalates and are 100% recyclable and deemed to be environmentally friendly.

What is halogen-free?

If a cable is not made from materials that contain salt-forming fluorine, bromine, iodine or chlorine then it is defined as halogen-free and flame retardant.

Product Application Information

Control cables are multi-conductor cables used in power applications within the automation and instrumentation industries. Control cables can measure and regulate transmissions of automated processes. These cables have a long flex life in mechanical machines which have constant motion or flexing.

Control cables are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.

Approvals

• UL AWM 21819 (600 V, 105°C) • UL AWM 21492 (300 V, 80°C) • CE • UL VW-1 • CSA AWM I/II A/B FT1 • IEC 60332-2 Flame Behavior • RoHS • REACH • WEEE • ISO 10993-5

EcoFlex Cable, 600 V Braid Shield, Multiconductor

Conductors: 2, Black, Red
Nominal Diameter: 0.262 inch (6.65 mm)
Jacket Thickness: 0.035 inch (0.89 mm)
Stranding: 26/30
Insulation Thickness: 0.010 (0.25 mm)
16 AWG (1.32 mm²)
Jacket Colour: Slate

EcoCable Range
