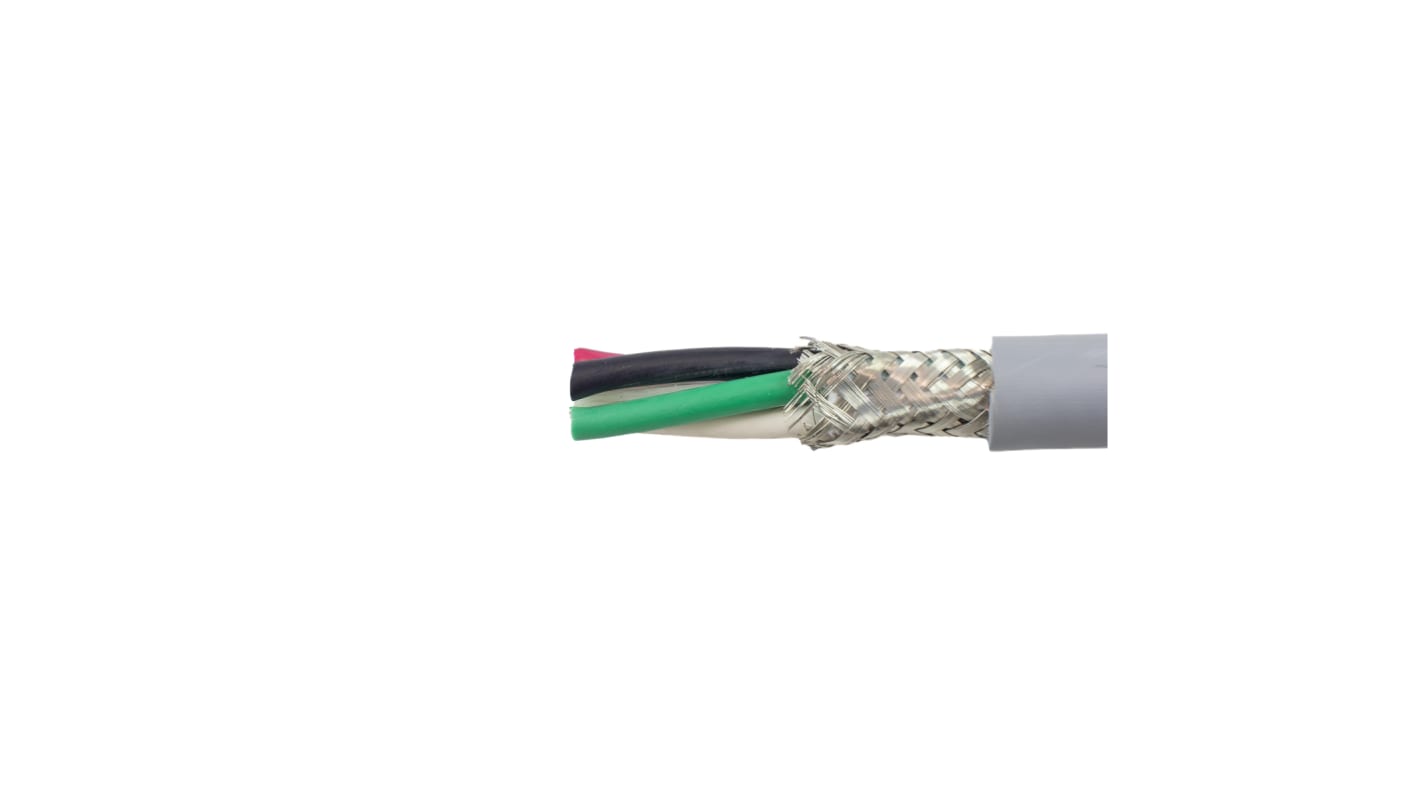

Alpha Wire Ecogen Ecoflex Control Cable, 4 Cores, 1.32 mm², ECO, Screened, 30m, Grey mPPE Sheath, 16 AWG

The EcoFlex range from Alpha Wire is a moderately flexible compact control cable which is fully recyclable due to its mPPE jacket and insulation construction. This multicore control cable can handle extreme temperatures, contains zero halogens, plus it is smaller and lighter than its PVC equivalent.

Multi-conductor cables with a braided shield have excellent flexibility and great mechanical strength. They are ideal for electromagnetic applications with low to medium frequencies.

LSZH (Low smoke zero halogens)

mPPE is a modified polyphenylene ether thermoplastic. Cables with a mPPE sheath have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

Unlike PVC, flexible cables made containing mPPE are halogen-free, contain no phthalates and are 100% recyclable and deemed to be environmentally friendly.

If a cable is not made from materials that contain salt-forming fluorine, bromine, iodine or chlorine then it is defined as halogen-free and flame retardant.

Control cables are multi-conductor cables used in power applications within the automation and instrumentation industries. Control cables can measure and regulate transmissions of automated processes. These cables have a long flex life in mechanical machines which have constant motion or flexing.

Control cables are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.

• UL AWM 21819 (600 V, 105°C) • UL AWM 21492 (300 V, 80°C) • CE • UL VW-1 • CSA AWM I/II A/B FT1 • IEC 60332-2 Flame Behavior • RoHS • REACH • WEEE • ISO 10993-5

Conductors: 4, Black, Red, White, Green
Nominal Diameter: 0.296 inch (7.52 mm)
Jacket Thickness: 0.035 inch (0.89 mm)
Stranding: 26/30
Insulation Thickness: 0.010 (0.25 mm)
16 AWG (1.32 mm²)
Jacket Colour: Slate

EcoCable Range
